Safety and Protection Cables
Safe and stable signal transmission for reliable security & protection systems
China Factory Manufacturer of Fire Resistant Cables
As a professional Fire Resistant Cables manufacturer in China, Taitong Wire & Cable Co., Ltd. is committed to providing global customers with high-quality wires and cables that comply with both national and international standards. Our fire-resistant cables can feature single or multiple safety protection functions. We customize fire-resistant cables in different specifications and applications for clients. Adhering to the ISO14001 environmental management system, Taitong strives to contribute to global environmental protection.
1. The main UL flame retardant ratings include CM, CMG, and CMX.
CM = Commercial Grade; CMG = General Purpose; CMX = Restricted / Residential.
1.1 CMP - Plenum Cable (UL910)
This is the highest UL fire safety rating for cables, tested via the Steiner Tunnel Test with an 87.9KW gas burner for 20 minutes. Flame shall not spread beyond 5 feet, peak optical density ≤ 0.5, average density ≤ 0.15. CMP cables are used in air return and plenum systems, approved in the US and Canada.
1.2 CMR - Riser Cable (UL1666)
A commercial-grade cable tested on a vertical shaft with a 154.5KW burner for 30 minutes. Flame shall not reach the top of a 12 foot shaft. Used for vertical and horizontal cabling between floors.
1.3 CM - General Purpose Cable (UL1581)
Tested on an 8 foot vertical tray with a 20KW burner for 20 minutes. Flame must self-extinguish without reaching the top. Used for horizontal wiring within the same floor.
1.4 CMG - General Purpose Cable (UL1581)
Similar to CM, approved in the US and Canada, used for horizontal wiring within a single floor.
1.5CMX - Residential Cable (UL1581, VW 1)
A restricted-use cable tested with a 30,000 BTU/hr burner: 15s on, 15s off, repeated 5 cycles. Residual flame ≤ 60s, damage ≤ 25%. Used for single runs in homes and small offices.
1.6 LSZH (Low Smoke Zero Halogen) Cables
LSZH cables produce minimal smoke and no halogen gas in a fire, greatly reducing toxic hazards and improving survival rates.They must meet three key requirements:
Flame retardance: IEC 60332-1 (single cable) or IEC 60332-3C (bunched cables).
Smoke density: Light transmittance ≥ 60% in a closed test.
Low toxicity/ halogen-free: Acid gas and halogen emission tests at 800℃ and 935℃.
2. Why choose Taitong Cable?
Supported by its large scale and extensive business scope, Taitong Cable provides Fire Resistant Cables with stable performance and excellent quality. As a major cable supplier in China, we strictly follow international standards offering factory-priced, cost-effective fire-resistant cables and customized solutions with single or multi-layer protection. We’re working together with global customers to promote safety in the cable industry worldwide.
- View as

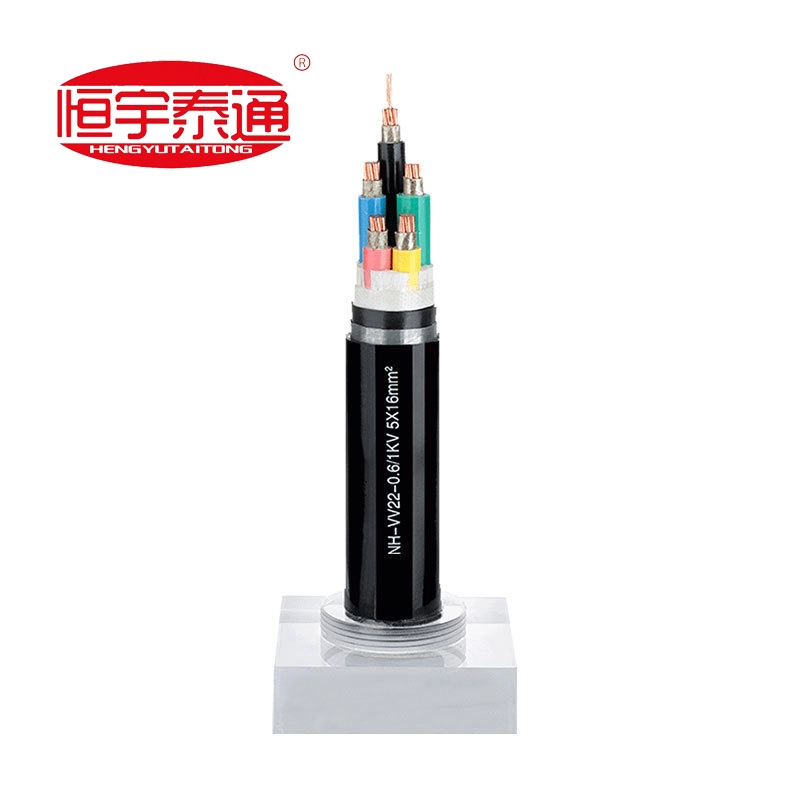

Cables with only fire resistant performance
Taitong Cable is a large-scale wire and cable enterprise with five factories in China, supplying a full range of high-performance cables to global customers. As a professional Cables with only fire resistant performance manufacturer, our fire-resistant cables feature outstanding performance, high safety and stable quality, have made us establish long-term cooperative relationships with many overseas clients. Taitong also provides customized solutions to produce cables with different fire ratings according to customer requirements, committed to delivering safe, reliable and professional cable products worldwide.

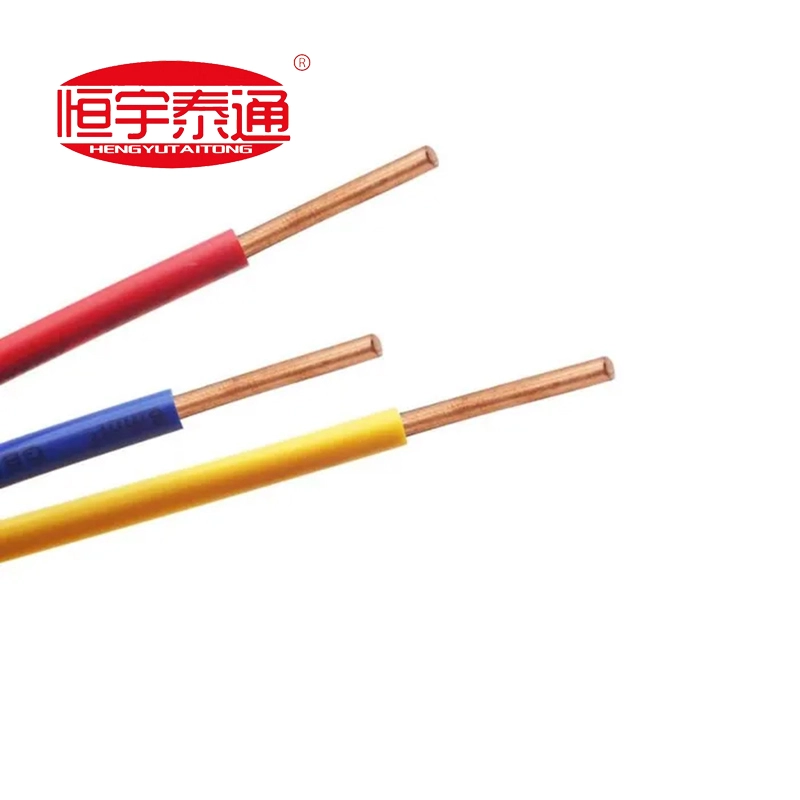

Flame retardant cables Including armouring
Flame retardant cables Including armouring are one of the main product categories of Taitong Cable. We provide both comprehensive fire-resistant cables and single-performance fire-resistant cables, and accept customization of wires and cables according to customer requirements around the world with high-quality cables at factory direct prices. Our flame-retardant cables are sold in China and have established stable supply relationships with many overseas clients. Taitong Cable is committed to supply environmentally friendly civil, power, control and special cables to the global market.

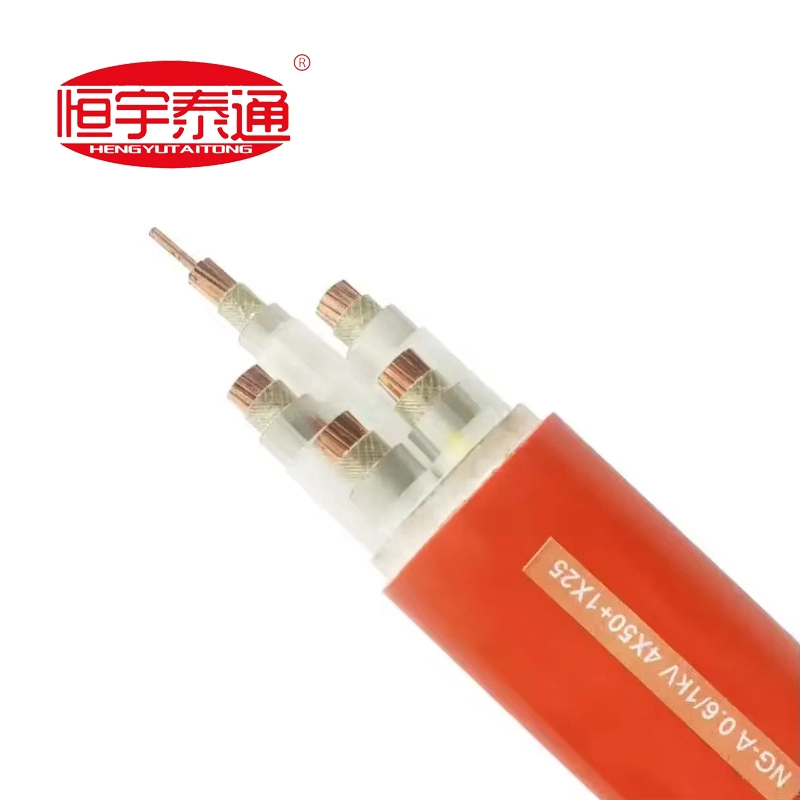

Mineral insulated flexible fire-resistant cables
Taitong Wire&Cable Co., Ltd. is a professional Chinese manufacturer and supplier of wires and cables. We provide standardized products with cost-effective mineral insulated flexible fire-resistant cables, as well as various civil, industrial and special cables, which can be customized with different insulation and sheath materials. Taitong’s cables are exported to the Middle East, Asia, South America, Africa, Europe and the United States, and are well recognized by global customers.

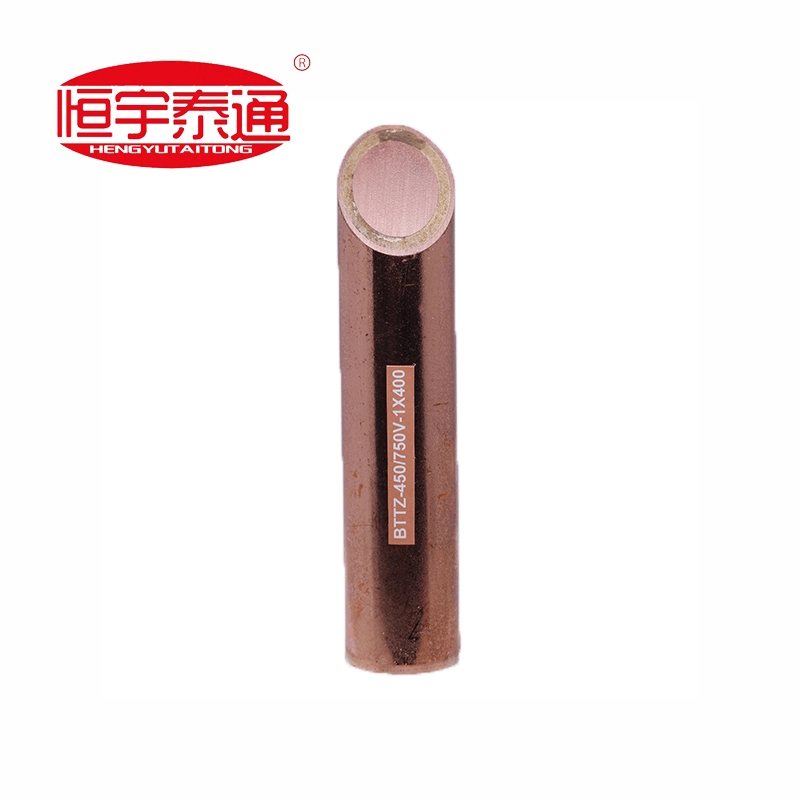

Rigid MI Cable Mineral Insulated Fireproof Cables
Taitong Cable Co., Ltd. is a professional manufacturer and supplier of Rigid MI Cable Mineral Insulated Fireproof Cables based in China, specializing in rigid mineral insulated fire-resistant cables. With a clear international development strategy and long-term vision, the company is committed to providing high-quality products and professional services to global customers. Taitong adheres to the concept of environmental protection and sustainable development, and strive to support safe, efficient and green power transmission, control systems and special working conditions around the world.

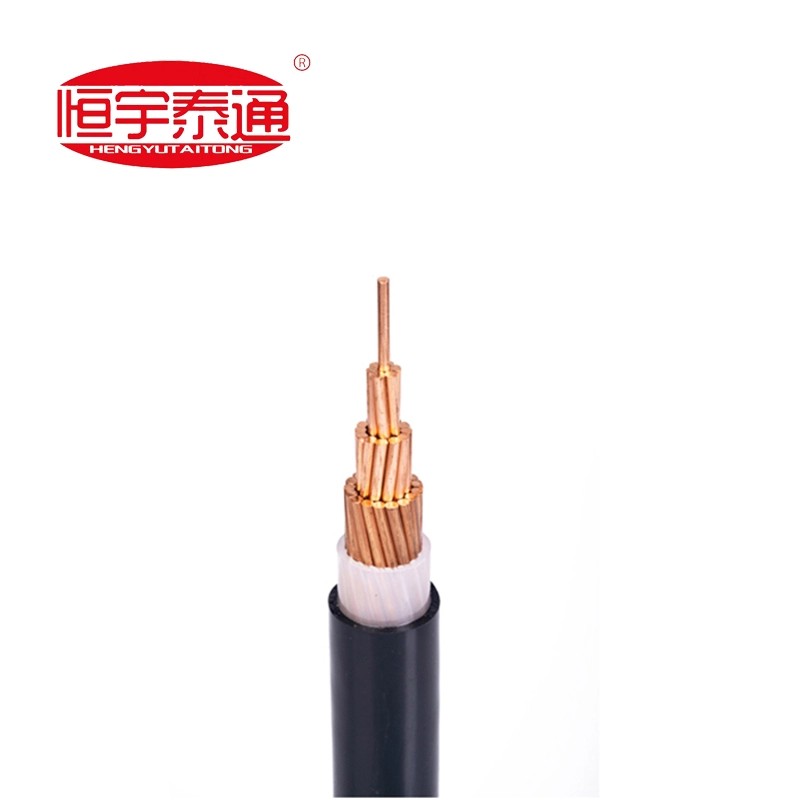

Flame Retardant and Fire Resistant Composite Cables
Taitong Cable is a professional Flame Retardant and Fire Resistant Composite Cables manufacturer with 70000 square meters. It’s a leading supplier of integrated flame-retardant and fire-resistant cables in China. With a clear international development strategy and long-term vision, the company is dedicated to providing high-quality products, factory price and professional services to customers worldwide to build a green power grid in the world. We adhere to the concept of sustainable development, and strive to support safe, efficient, and green cable solutions for global power control systems and special working conditions to work with our clients.

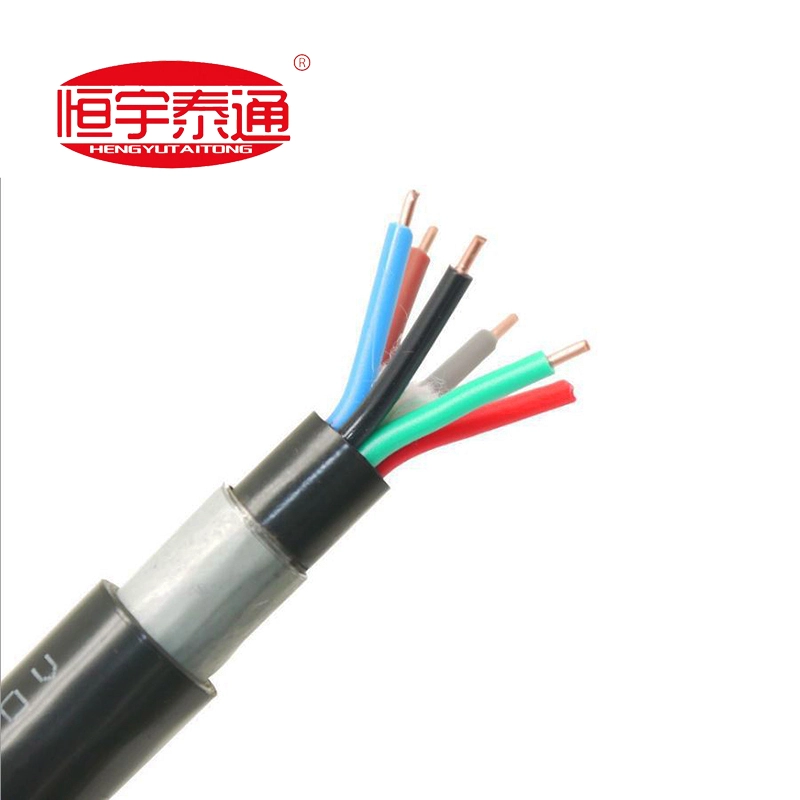

LSLH Low-smoke low-halogen flame-retardant cables
Taitong Cable Co., Ltd. is a professional manufacturer of LSLH Low-smoke low-halogen flame-retardant cables based in China, specializing in the R&D. As a low-smoke, low-halogen flame-retardant and fire-resistant integrated cables supplier, we are devoted to delivering high-quality cable products and professional technical services to customers around the world with a clear global development strategy and long-term vision. We uphold the concept of green and safe development, and are committed to providing reliable, China-made cable solutions for global power transmission, control systems and special working conditions.
Taitong Cable is a professional Fire Resistant Cables manufacturer and supplier in China. We warmly welcome you to wholesale high quality products at competitive price from our factory.
