Why Flexible Mineral Insulated Cables Secure Grids

Summary: For high-density skyscrapers, underground transit networks, and heavy petrochemical zones, specifying the ultimate tier of fireproof wiring is essential to protect public safety. Mineral insulated flexible fire-resistant cables represent the absolute pinnacle of electrical fire survivability. This article breaks down the advanced structural anatomy, extreme fire-water-shock defense mechanisms, and routing advantages of the industrial-grade 0.6/1kV NG-A power cable series.

Table of Contents

Introduction

Structural Layout of 0.6/1kV NG-A Flexible Mineral Insulated Cables

The Ultimate Fire Survival: Overcoming Flame, Water, and Impact

Why Flexibility Changes the Game for On-Site Installation

Factory-Direct Customization and Sourcing Compliance

Introduction

When a major fire outbreak compromises a commercial complex or industrial refinery, standard plastic-insulated cables fail within minutes, cutting off power to structural lifelines. Even standard flame-retardant or basic fire-resistant wires have strict thermal thresholds. For critical circuits—such as main fire elevators, backup ventilation systems, and emergency control control panels—modern engineering specifications require specialized cables that simply cannot burn.

To meet these uncompromised global infrastructure safety parameters, Taitong Cable Co., Ltd. manufactures high-performance flexible mineral insulated fire-resistant cables. Engineered with inorganic materials that completely eliminate combustion risks, our product lines deliver ultimate operational safety margins to high-profile engineering projects worldwide.

Structural Layout of 0.6/1kV NG-A Flexible Mineral Insulated Cables

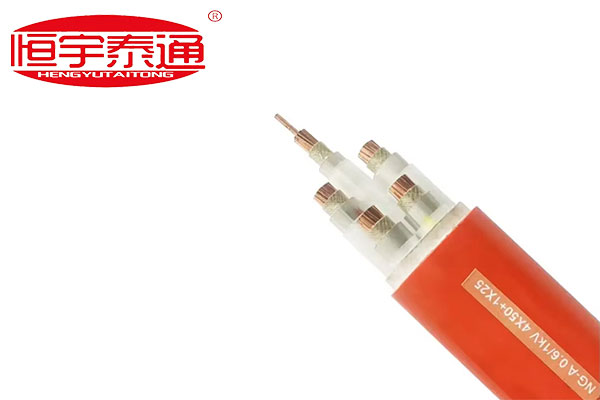

Unlike standard synthetic polymer distribution wires, the NG-A 0.6/1KV 4 X 50 + 1 X25 mm" architecture utilizes inorganic mineral compounds to create a permanent shield

against intense heat:

High-Purity Copper Conductors: Formed from stranded electrical copper wires to guarantee robust power transmission and low resistance during daily full-load performance.

Inorganic Mineral Insulation Barrier: Wrapped and compacted using highly stable minerals (such as magnesium oxide or specialized synthetic mineral tapes). This layer contains absolutely zero organic materials, meaning it cannot ignite, catch fire, or sustain combustion.

Internal Filler and Protective Bedding: Made from flame-proof, non-toxic mineral compounds that maintain structural core rounding under mechanical stress.

Aluminum / Metallic Protective Sheath: A seamless metallic containment layer beneath the outer covering that provides flawless waterproofing and robust electromagnetic shielding (EMI).

Heavy-Duty Safety Outer Jacket: A bright orange/red flame-retardant, low-smoke jacket that provides excellent tracking resistance and clear safety identification in shared cable trays.

The Ultimate Fire Survival: Overcoming Flame, Water, and Impact

Standard fire-rated electrical lines are typically tested only against dry flame exposure. However, real-world structural fires involve three distinct destructive forces acting simultaneously: intense heat, heavy water spray from emergency sprinkler systems, and physical impacts from collapsing masonry or falling beams.

The NG-A flexible mineral insulated series is specifically engineered to survive these compound hazards by complying with rigorous international criteria like the BS 6387 CWZ protocol:

1.Flame Resistance (C): Maintains continuous electrical circuit integrity while exposed directly to intense burning at 950°C for up to 180 minutes.

2.Water Spray Resistance (W): Successfully resists short circuiting when subjected to direct flame at 650°C for 15 minutes followed by 15 minutes of heavy fire-hose water spray.

3.Mechanical Shock Resistance (Z): Maintains constant power flow while being hammered repeatedly by a mechanical striking bar under 950°C flame testing conditions.

Why Flexibility Changes the Game for On-Site Installation

Historically, utilizing mineral-insulated lines meant dealing with old-fashioned, rigid heavy copper-clad rods (BTTZ). Those traditional systems required complex, expensive bending tools, suffered from short production lengths, and led to high labor costs due to complex joints.

Taitong Cable's modern NG-A flexible mineral design resolves these installation pain points:

Tight Radius Bending: The stranded conductors and flexible mineral shielding tape allow the line to bend smoothly around structural concrete pillars and inside tight switchboard cabinets.

Continuous Long Runs: Manufactured in extended continuous drum lengths, completely eliminating the need for intermediate mid-run cable joints, reducing electrical vulnerability points.

Factory-Direct Customization and Sourcing Compliance

Elite-tier commercial infrastructure projects allow absolutely zero margin for unverified materials or structural weaknesses. Every batch of mineral distribution systems must align perfectly with your exact electrical engineering bill of quantities (BOQ).

At Taitong Cable Co., Ltd., we reject rigid, mass-produced inventory clearing systems in favor of a 100% factory-direct customized production model. We engineer and manufacture each batch of flexible mineral insulated cables to match your exact configuration requirements—tailoring specific core counts, precise cross-sectional arrangements, and custom structural lengths to align with your project's precise electrical parameters.

Contact our high-safety power engineering team today to access authorized test reports, detailed structural drawings, or to receive an express, factory-direct cost estimation for your upcoming grid infrastructure tender!
