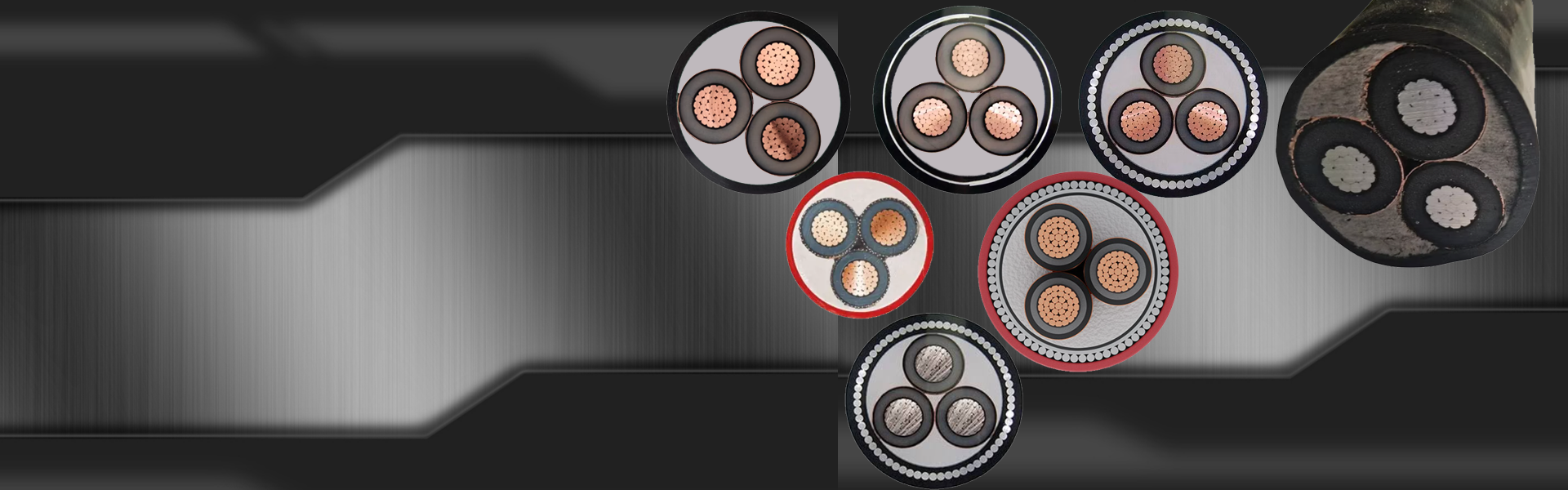

Three-Core Medium Voltage Power Cables
TaiTong 3-core medium voltage power cable, fully tested, factory direct supply for global EPC projects.
Three Core Medium Voltage Power Cables Supplier and Manufacturer in China
Medium-Voltage Three-Core Power Cable is manufactured by TaiTong Cable, founded in 2002. The enterprise operates 5 production factories and over 30 regional offices, with in-house laboratory and professional R&D & technical teams. These MV cables feature copper or aluminium conductor, XLPE insulation allowing 90°C continuous working temperature., metallic screen and SWA or STA armour, delivering stable electrical performance and complies with IEC 60502-2, BS and VDE standards, holding ISO, CE and IEC type test certificates. TaiTong Cable has long experience serving large domestic power projects and actively develops global clients. Products serve power utilities, EPC contractors and distributors for substations, urban grids and renewable projects. Custom specs, samples and factory audit available. Welcome!
Applications
These three-core medium-voltage power cables are widely applied in power substations, urban power grids, industrial plants, solar farms and wind farms. Installable via direct burial, ducts and cable trays for AC power distribution.
Note:
IEC 60502-2 is the global baseline standard for medium voltage cables. DIN VDE 0276-620 (HD620) applies stricter partial discharge and electrical test requirements for European continental projects. BS 6622 is the UK standard, widely used in UK and Commonwealth markets with characteristic voltage ratings such as 3.8/6.6kV. All three standards permit custom outer sheath colours, red is a common industry convention rather than mandatory requirement.
Medium-Voltage Three-Core Power Cable | Electrical & Physical Parameters
- Rated voltage: 3.6/6kV, 6/10kV, 8.7/15kV,12/20kV,18/30kV
- Conductor material: Copper or Aluminium
- Maximum continuous operating temperature: 90°C
- Short-circuit temperature of XLPE insulation: 250°C
- Conductor DC resistance at 20℃: Comply with IEC 60228
- Partial discharge test: No discharge at 1.73U₀
- Power frequency withstand voltage test: 4U₀, 15min
- Impulse withstand voltage: Meet IEC 60502-2 requirements
- Minimum bending radius: 15 × overall cable diameter
- Installation ambient temperature: ≥0℃ (without preheating)
- Outer sheath: PVC, PE or LSZH upon request
- Core identification can be achieved by coloured insulation, colour identification tape or printed number marking.
- Outer sheath colour: normally black; other colours can be specified on request.
FAQ
Q: What armour type for three-core medium voltage cable?
A: SWA steel wire armour is adopted for mechanical protection, suitable for AC three-phase power transmission.
Q: What test reports can Taitong Cable provide?
A: IEC type test certificate, ISO, CE and batch factory test reports are available.
Q: Can we get samples for testing from Tatitong Cable?
A: Yes, test samples can be supplied upon request. Factory audit or video inspection is supported.
Q: What customization options are available in Taitong Cable?
A: Custom cross-section, sheath material, sheath colour and cable length are supported.
