Why 4-Core Armored Aluminum Cables Power Grids

Summary: In industrial utility expansions, solar plant collection networks, and commercial building distribution mains, balancing direct-burial durability with tight procurement budgets is a key engineering priority. 4-core armored aluminum power cables (YJLV22 / 0.6/1kV series) serve as a high-reliability transmission solution for low-voltage secondary networks. This technical article analyzes the multi-layered design, double steel tape armor mechanics, and cost benefits that make 4-core aluminum power cables the top choice for international infrastructure tenders.

Table of Contents

Introduction

Structural Architecture of 4-Core Armored Aluminum Cables

Double Steel Tape Armor: Guarding Direct-Burial Utility Runs

4-Core Design: Streamlining Three-Phase Low-Voltage Power

Cost Advantages of Stranded Aluminum Conductors

Primary Application Scenarios in Regional Power Grids

Factory-Direct Customization and Sourcing Security

Introduction

Underground low-voltage power distribution lines are subject to heavy physical strain. Underground trenches expose non-armored cables to soil movement, compaction forces, sharp rock edges, and potential rodent intrusion. Additionally, specifying copper conductors across long distribution spans substantially inflates raw material costs and freight expenses.

To solve these installation hurdles, Taitong Cable manufactures premium 0.6/1kV 4-core steel tape armored aluminum power cables. By pairing high-conductivity stranded aluminum conductors with robust double steel tape armoring, our cables provide dependable mechanical strength and continuous power delivery for global utility contractors.

Structural Architecture of 4-Core Armored Aluminum Cables

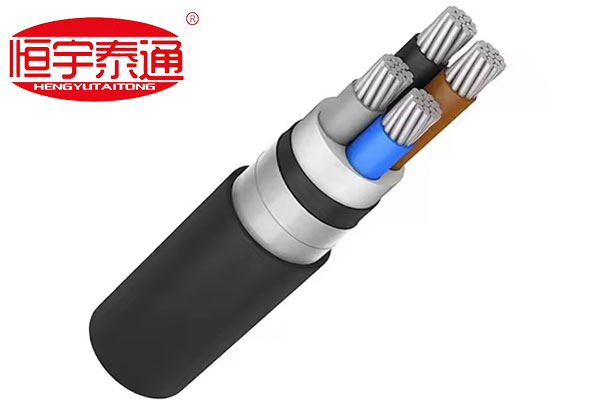

A detailed look at the 4-core armored aluminum power cable cross-section illustrates its layered engineering built for tough underground conditions:

Compacted Stranded Aluminum Conductors: Formed from high-purity electrical aluminum wires stranded tightly to lower cable diameter while ensuring optimum electrical conductivity.

Color-Coded XLPE/PVC Insulation: Color-coded phase insulation (e.g., Brown, Blue, Black, Grey) allowing accurate phase identification and simplified terminal connection during site installation.

Extruded Inner Bedding: Smooth inner protective cushion layer wrapped over the assembled core bundle to prevent armor friction damage.

Double Steel Tape Armor (DSTA): Overlapping helical steel armor tapes wrapped securely around the inner bedding, absorbing heavy external impacts and radial pressure.

Weatherproof Outer Sheath: Heavy-duty, UV-stabilized PVC or PE outer jacket resisting soil moisture, acid corrosion, and surface abrasion.

Double Steel Tape Armor: Guarding Direct-Burial Utility Runs

Why do project consultants and EPC contractors specify double steel tape armor (DSTA) for underground cable installations?

1.Direct-Burial Compatibility: Armored cables eliminate the need for expensive external PVC or concrete conduit pipes, allowing direct installation into open earth trenches and lowering total civil construction costs.

2.Extreme Crush and Impact Resistance: Subsoil settlement and heavy vehicles passing overhead apply continuous vertical force. Double steel tape wraps protect internal conductors from deformation and physical puncture.

3.Subterranean Pest Defense: Rodents and burrowing pests frequently chew through soft outer polymers. The steel tape layer creates an impenetrable physical barrier that extends line service life beyond 30 years.

4-Core Design: Streamlining Three-Phase Low-Voltage Power

The 4-core configuration is specifically designed for three-phase four-wire distribution networks(3 Ph+N):

Balanced Phase Distribution: Accommodates three phase conductors along with a full-size neutral conductor in a single cable bundle.

Simplified Layout: Reduces cable laying labor and cable tray space requirements compared to running multiple single-core cables.

Cost Advantages of Stranded Aluminum Conductors

Raw material pricing significantly impacts infrastructure viability. Utilizing stranded aluminum conductors instead of copper yields clear economic benefits:

Substantial Capital Savings: Aluminum delivers excellent power carrying capacity at a fraction of copper's material cost, enabling contractors to stretch project budgets across longer distribution distances.

Reduced Transport and Handling Weight: Aluminum’s lightweight property simplifies cable tray pulling, reduces installation manpower hours, and optimizes container freight loading for overseas shipping.

Primary Application Scenarios in Regional Power Grids

Thanks to their structural durability and high cost-efficiency, Taitong Cable's 4-core armored aluminum lines are widely featured in global tenders:

Solar and Wind Farm Collection Networks: Transporting low-voltage AC power from step-up transformers to main distribution hubs across sprawling solar fields.

Industrial and Commercial Complexes: Routing underground main feeders connecting main utility transformers to factory distribution panels.

Suburban Grid Extension Tenders: Replacing fragile overhead lines with buried armored networks to prevent weather-related power outages in growing residential zones.

Factory-Direct Customization and Sourcing Security

Utility tenders leave zero room for insulation voids, conductor variance, or armor gaps. Global procurement contracts demand strict adherence to recognized parameters, including IEC 60502-1 and BS 5467.

At Taitong Cable, we support your project execution through a 100% factory-direct customized production model. We do not push pre-made, aging warehouse clearance items. Instead, we custom-manufacture every batch of 4-core armored aluminum cables to align directly with your project's precise bill of quantities (BOQ)—calibrating conductor cross-sections (16 mm2 up to 500 mm2), insulation thickness, armor parameters, and outer sheath materials to meet local national grid standards.

Contact our power cable engineering division today to request verified type-test reports, custom dimensional drawings, or an express, factory-direct price quotation for your upcoming power tender!
