Professional Rubber Cables Manufactured by Taitong Cable - Factory Supply

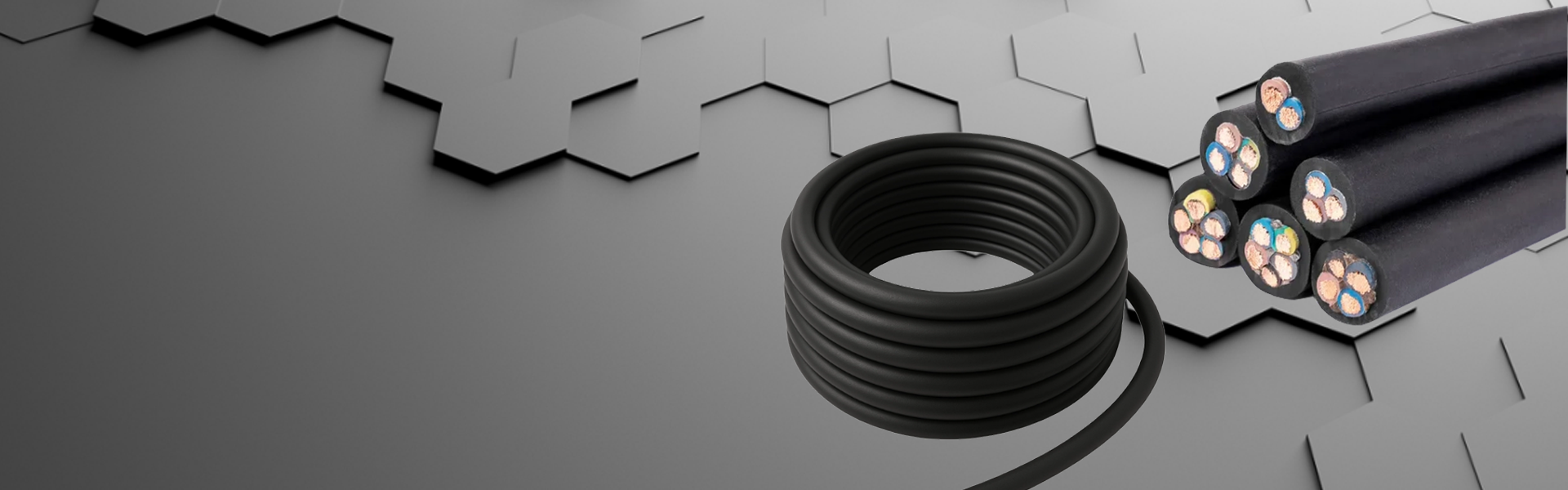

IEC 60245 rubber flexible power cables ( rated voltage up to 450/750V ) are universal movable power cables for global general-purpose applications. Featuring Class 5 flexible or Class 6 extra-flexible copper conductor and high-performance vulcanized rubber insulation and sheath, these cables provide excellent flexibility, abrasion resistance and outdoor weather resistance. Widely used for construction temporary power, portable machinery, electric tools and field mobile power systems. Special rubber-sheathed cables are also covered, including cables for submersible pumps, tunnel boring machines (TBM), hoists and crane systems.Different from EN/VDE heavy-duty rubber cables, IEC 60245 cables are cost-effective and ideal for non-EU international projects.

Relevant Standards:

IEC 60245: Rubber insulated cables of rated voltages up to and including 450/750V

IEC 60228: Conductors of insulated cables

IEC 60811: Common test methods for cables under fire conditions

View as

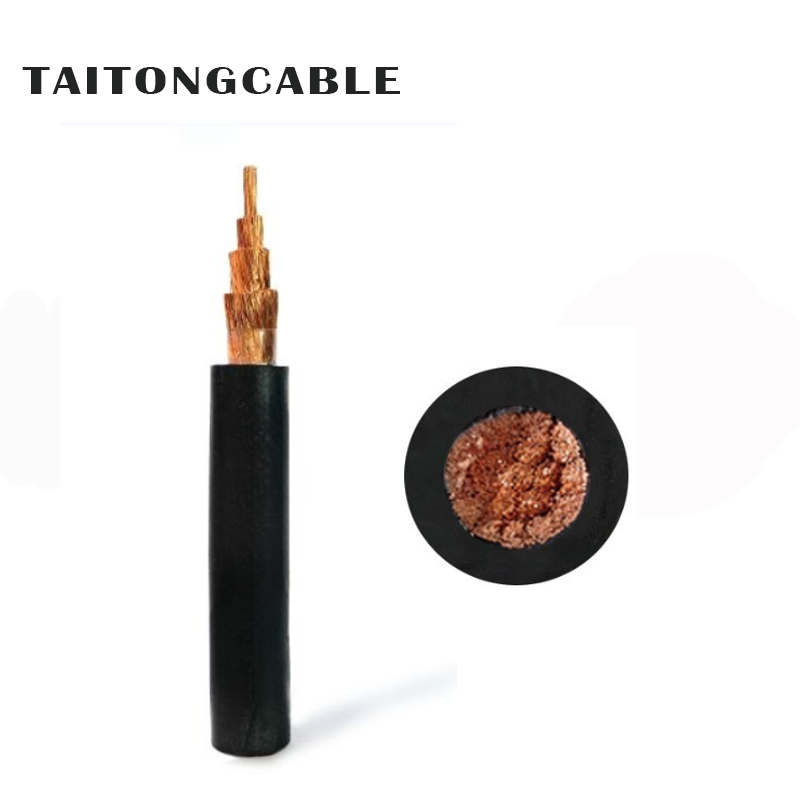

60245 IEC 81 Flexible Rubber Sheathed Welding Cables

60245 IEC 81 flexible rubber sheathed welding cables comply with IEC 60245-6. This single-core welding electrode cable adopts class 5 flexible bare copper conductor and SE3 natural rubber integrated covering. It has good flexibility, max continuous working temperature 65℃, not resistant to mineral oil. CE certificate is provided. Suitable for ordinary indoor manual arc welding. Popular for domestic and Southeast Asian buyers for general welding engineering projects around the world.

View More >> Send Inquiry >>

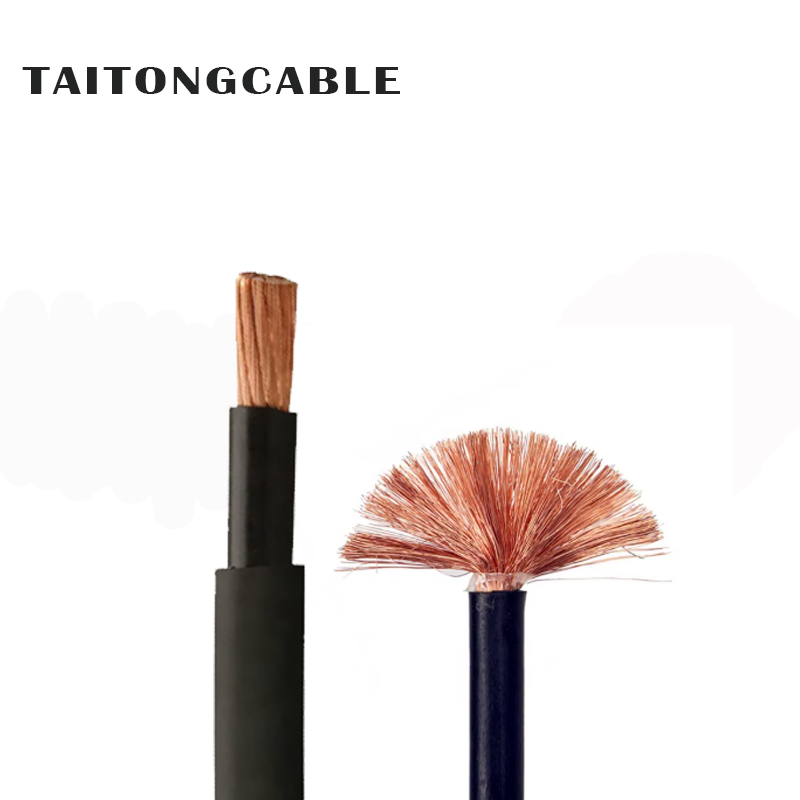

60245 IEC 82 Extra-Flexible Rubber Sheathed Welding Cables

60245 IEC 82 extra-flexible rubber sheathed Welding Cables supplied by Taitong Cable comply with IEC 60245-6. This single-core welding electrode cable adopts flexible bare copper conductor and SE4 chloroprene elastomer integrated covering, delivering excellent oil, ozone and ageing resistance, rated up to and including 450/750V with max conductor operating temperature 65℃. ISO certified, CE certificates can be provided upon request. Ideal for oily workshops, shipyards and outdoor welding. Popular for contractors and engineering buyers across Southeast Asia and global welding projects.

View More >> Send Inquiry >>

FAQ

1. What conductor class does IEC 60245 rubber cable use?

General types adopt Class 5 flexible copper conductor. Welding electrode cables use Class 6 extra-flexible copper conductor.

2. Can IEC 60245 rubber cable be used underwater for submersible pumps?

Standard IEC 60245 cable is for dry/wet outdoor temporary use. For continuous submersion, we produce specially modified waterproof version based on IEC 60245 construction.

3. What is the difference between IEC 60245 and EN 50525 / VDE rubber cables?

IEC 60245 is a global standard for general rubber cables, mainly for non-EU markets. EN 50525/VDE cables comply with strict European material, colour code and certification requirements for EU projects.

4. Are custom sizes and packing available in Taitong Cable?

Yes. We supply custom cross-sections, core numbers, lengths and packing options like wooden reels as required.

5.Is IEC 60245 rubber cable suitable for TBM or hoist applications?

Our heavy-duty modified IEC 60245 rubber cables can be applied for TBM, hoist and crane systems with reinforced sheath for abrasion and impact resistance.

Why Choose Taitong for Rubber Cables?

Taitong Cable was founded in 2002. To date, we have built 5 manufacturing plants and over 30 regional offices across China, serving domestic customers with rich industry experience. We are a reliable partner and supplier for major national and local projects in China. Meanwhile, we keep expanding into global markets and actively support international clients with their procurement schedules and required certifications.

Taitong operates a dedicated factory for rubber cables, capable of manufacturing light-duty and heavy-duty rubber cables to IEC 60245, VDE and EN standards. Our products suit procurement needs for mining, tunneling and container crane projects. International customers are welcome to buy Taitong Cable’s rubber sheathed cables to IEC 60245 standard.
