Special Rubber Sheathed Flat Cable

Taitong Cable is a professional Chinese manufacturer specializing in Special Rubber Sheathed Flat Cable. Our products are widely applied in port machinery, gantry cranes, overhead traveling cranes, and various special equipment, including elevator traveling applications. Adopting high-quality materials and strict production standards, our special rubber sheathed flat cables feature excellent flexibility, durability, and environmental resistance which has been exported to customers all over the world with factory-direct pricing.

Send Inquiry

Product Description

1. Product Introduction

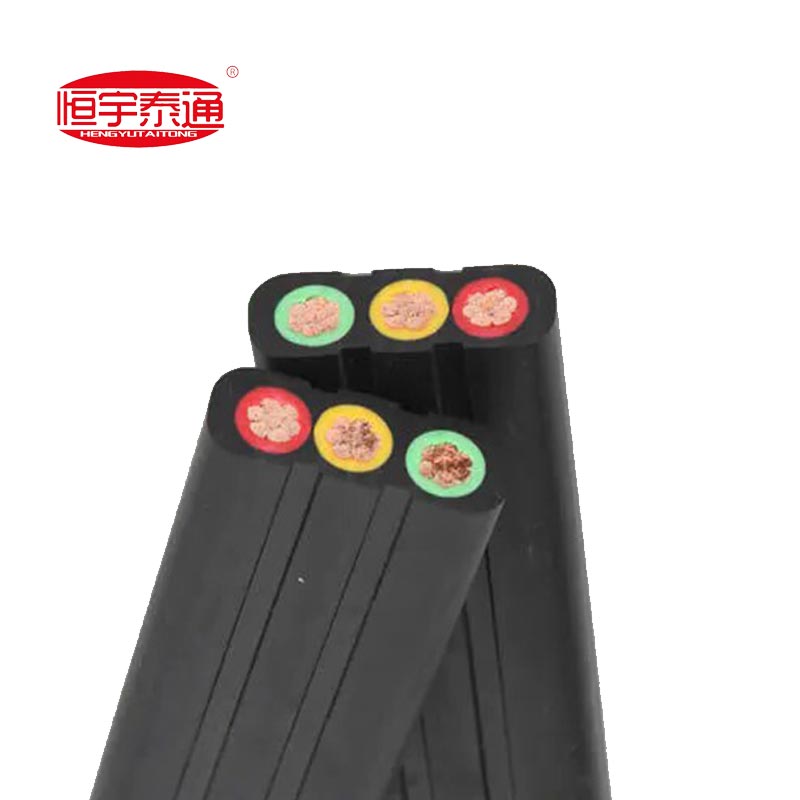

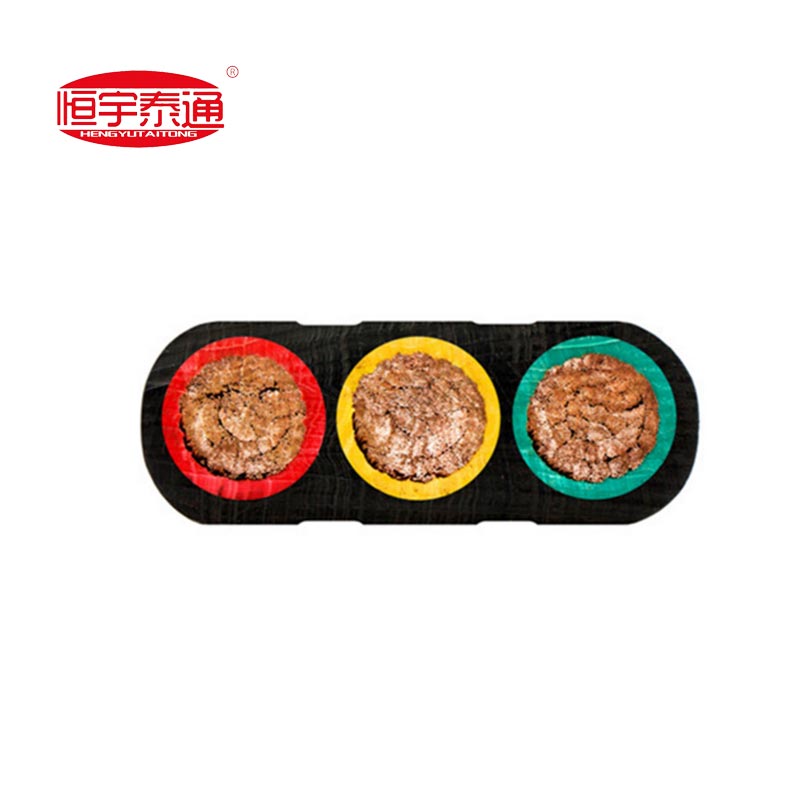

Special rubber sheathed flat Cable is a highly flexible, heavy-duty flat cable designed for mobile and harsh working environments. It mainly consists of flexible stranded copper conductors, rubber insulation, load-bearing steel wire reinforcement, and a thick rubber sheath. This cable features excellent bending resistance, high tensile strength, oil resistance, abrasion resistance, and aging resistance. The flat structure effectively prevents twisting and winding during frequent movement, widely used in port machinery, gantry cranes, overhead traveling cranes, elevators, and other special equipment. It supports stable power and signal transmission under long-term reciprocating operation. With reliable performance and strong adaptability, it is ideal for various mobile power transmission applications indoors and outdoors.

2. Product Models and Specifications

2.1 Product Types of special rubber sheathed flat cable

1. Flat flexible rubber-sheathed cable
2. PVC-insulated, NBR - sheathed flat cable
3. Flat rubber cable with copper braid shielding
4. High-performance flat cable with polyurethane outer sheath
5. Multi-core (8–48 cores) flat cable for crane control systems

2.2 Structure of special rubber sheathed flat cable

Conductor: Multi-strand fine annealed copper, compliant with IEC 60228 Class 5/6 or VDE 0295 Class 5; extra-fine stranding for high flexibility.

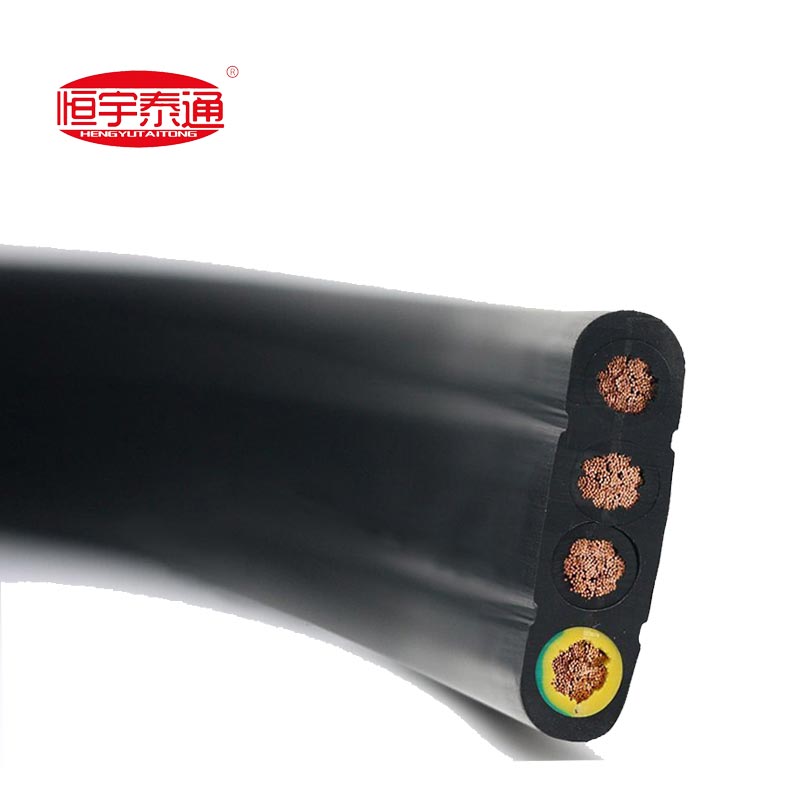

Insulation: EPR (ethylene propylene rubber) or special PVC compound; color-coded or numbered for identification; green-yellow for grounding core.
Core Arrangement: Parallel flat (linear) or quincuncial core layout for compactness and anti-twisting.

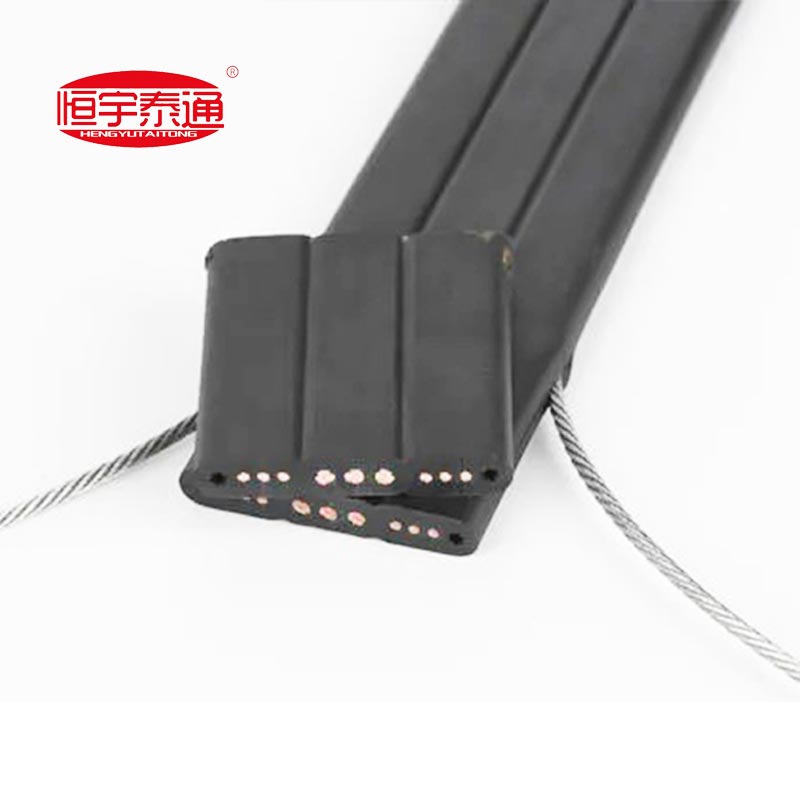

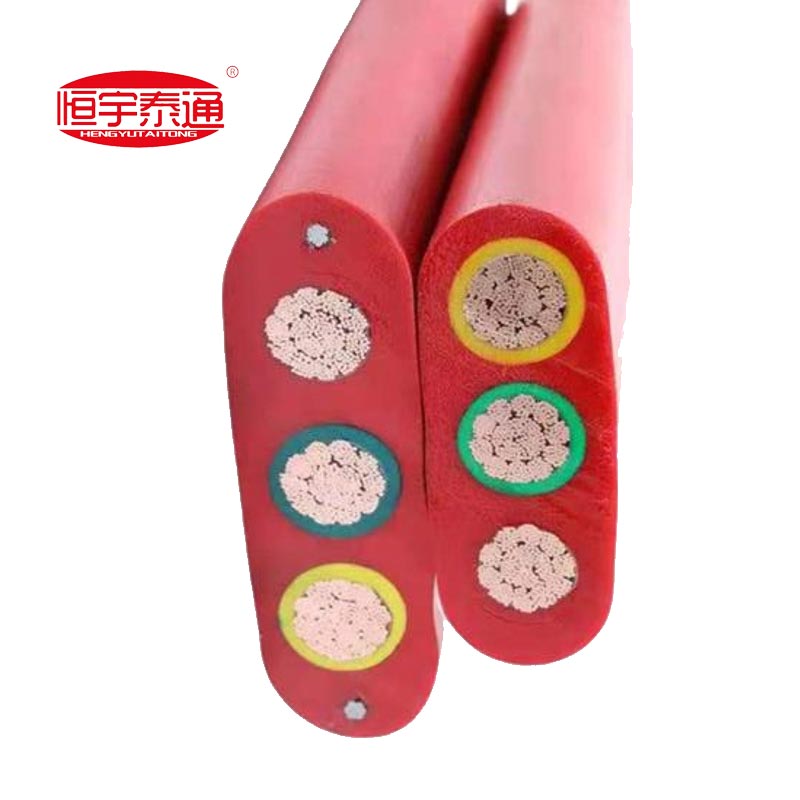

Reinforcement: Two galvanized steel wires embedded on both sides for tensile strength, critical for long-span crane travel.
Shielding: High-density tinned copper braid (shielding density >80%) to resist electromagnetic interference.
Outer Sheath: Heavy-duty NBR (nitrile rubber), CSM (chlorosulfonated polyethylene), or PUR (polyurethane); oil-resistant, abrasion-resistant, UV-resistant, and salt-spray resistant.

3.Key Performance Characteristics of rubber sheathed flat cable

3.1 Voltage Rating: 300/500V, 450/750V, 0.6/1kV (standard industrial grades).
3.2 Temperature Range: -40°C to +90°C (continuous operation); custom down to -50°C or up to +120°C available.
3.3 Bending Radius: Fixed installation: 5× cable thickness; mobile/traveling: 8–10× cable thickness.
3.4 Bending Life: ≥1,000,000 cycles; high-flex models ≥5,000,000 cycles.
3.5 Mechanical Strength: Tensile strength ≥50MPa; tear resistance ≥25N/mm; abrasion resistance ≥5,000 friction cycles.
3.6 Environmental Resistance: Oil-resistant, acid/alkali-resistant, UV-resistant, salt-spray resistant; suitable for marine and port environments.
3.7 Flame Retardancy: Complies with IEC 60332-1, VDE 0472-804 Part B, and UL 94 V-0/VW-1.
3.8 Electrical Performance: Insulation resistance ≥10MΩ·km at 20°C; test voltage 2,500–3,500V AC for 5 minutes without breakdown.

4.Applicable Standards

International Standards

IEC 60227: Polyvinyl chloride insulated cables of rated voltages up to and including 450/750V.
IEC 60228: Conductors of insulated cables.
IEC 60332-1: Test on insulated cables under fire conditions – Part 1: Vertical flame propagation test for a single insulated wire or cable.
VDE 0295: Flexible copper conductors for cables.
VDE 0482 / EN 50265-2-1: Specifications for flexible rubber-sheathed cables for general purposes.
CE (LVD/RoHS): Compliance with EU Low Voltage Directive and Restriction of Hazardous Substances.

Chinese Standards

GB/T 5023.6: PVC insulated cables of rated voltages up to and including 450/750V – Part 6: Elevator cables and flat cables for general purposes.
GB/T 12706: Rated voltage 1kV (Um=1.2kV) to 35kV (Um=40.5kV) extruded insulation power cables and accessories.
GB/T 18380.1: Test on insulated cables under fire conditions – Part 1: Vertical flame propagation test for a single insulated wire or cable.

5.Technical Parameters

Parameter	Unit	Typical Value
Rated Voltage	V	300/500, 450/750, 600/1000
Conductor Cross-Section	mm²	0.5–10 (control), 16–50 (power)
Number of Cores	–	2–48
Minimum Bending Radius (Mobile)	× Thickness	8–10
Operating Temperature	°C	-40 to +90
Test Voltage (AC)	V	2500–3500 (5min)
Insulation Resistance (20°C)	MΩ·km	≥10
Tensile Strength (Sheath)	MPa	≥50
Flame Retardancy	–	IEC 60332-1, UL 94 V-0

Supported by competitive pricing, large-scale production capacity, advanced manufacturing equipment, and a professional talent team, Taitong Cable Co., Ltd. holds a prominent position in China’s cable industry.

Our special rubber sheathed flat cables have been sold domestically for many years and also continuously expanded into international markets, contributing to the improvement of residential, public, and industrial environmental standards alongside civil and national projects, and partnering with foreign clients to build a more progressive society.

As a reputable Chinese cable manufacturer and supplier, we boast an R&D team, and strict adherence to safety and qualification standards, like ISO certification, CE marking, and MA mine-use certification. These strengths deliver tangible cost savings and reliable operational benefits to customers worldwide, earning widespread global recognition and trust.
