Why 0.6/1kV Fire Resistant Cables Secure Grids

Summary: For modern commercial plazas, large-scale residential projects, and manufacturing hubs, fire-safe electrical routing is non-negotiable. Cables with fire resistant performance serve as the critical distribution trunk lines that keep essential machinery running during localized fire emergencies. This article explores the internal material layers, circuit integrity standards, and structural armor benefits of the standard 0.6/1kV NH-VV22 power cable, providing clear insights for international procurement managers.

Table of Contents

Introduction

Structural Layering of 0.6/1kV NH-VV22 Fire Resistant Cables

Maintaining Circuit Integrity: How NH Cables Beat the Heat

The Double Mechanical Protection of Steel Tape Armor

Factory-Direct Customization and Sourcing Security

Introduction

When an unexpected fire outbreak occurs in a crowded commercial building or high-density industrial facility, maintaining the continuous flow of emergency electricity is a matter of life and safety. If the main power cables fail instantly from thermal shock, fire-extinguishing equipment, rescue elevators, and critical lighting grids will go dark. Standard power wires cannot withstand direct flame exposure, which is why global engineering specifications mandate specialized 0.6/1kV fire-resistant cables for critical secondary distribution loops.

To support high-safety infrastructure worldwide, Taitong Cable manufactures high-performance fire-resistant armored power cables. Built to outlast intense structural thermal events, our products deliver exceptional safety margins and long-term network operational security.

Structural Layering of 0.6/1kV NH-VV22 Fire Resistant Cables

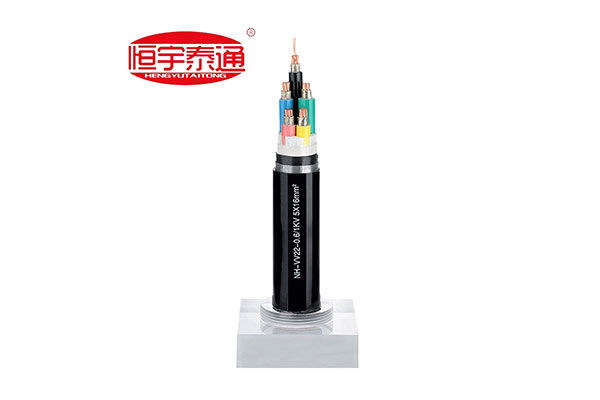

Examining standard configurations like the NH-VV22-0.6/1KV 5 X 16 mm2 cable reveals aheavy-duty, multi-layered defensive blueprint engineered for reliable performance:

High-Purity Copper Conductors: Stranded from pure electrical-grade copper to guarantee highly stable conductivity and optimized energy flow under full-load daily operations.

Fire-Resistant Mica Tape Barrier: Wrapped directly around each individual copper conductor. Mica acts as an inorganic thermal shield that does not melt, remaining highly insulating even when facing extreme heat up to 1000°C.

Premium Insulation Layer: High-dielectric PVC material wrapped neatly around each core to separate electrical phases during standard daily operations.

Double Steel Tape Armor (DSTA): Overlapping helical steel bands wrapped tightly around the inner core matrix, providing high crush resistance against heavy subsoil pressures and physical shovel strikes.

Flame-Retardant Outer Jacket: A robust PVC sheath formulated to resist tracking, oil splashes, chemical soil acids, and moisture ingress.

Maintaining Circuit Integrity: How NH Cables Beat the Heat

Why are global utility procurement managers choosing NH-series fire-resistant cables over standard electrical wires?

1.True Fire Resistance (Circuit Integrity): Unlike ordinary flame-retardant cables that merely stop a fire from spreading but melt internally, fire-resistant (NH) cables maintain active electrical flow. Our mica-shielded cores are engineered to keep full current running safely for 90 to 180 minutes directly inside intense fire zones.

2.Balanced 5-Core Configuration: The 5 X 16 mm2 design features three independent

phase lines along with separate dedicated neutral and grounding (PE) conductors. This architecture balances phase currents and provides an immediate grounding path,preventing hazardous fault currents from damaging downstream equipment.

The Double Mechanical Protection of Steel Tape Armor

In addition to thermal resistance, underground secondary distribution cables face constant physical threats during installation and burial. The integrated double steel tape armor (VV22/YJV22 design) eliminates the need for expensive external piping:

Excellent Crush Resistance: The overlapping steel tape framework shrugs off vertical rock pressure and heavy equipment movement in direct-burial trenches.

Rodent and Pest Defenses: Subterranean gophers and termites can easily chew through soft plastic coatings, causing short circuits. The tough metallic wrapping blocks biological damage completely, extending the service life of the grid to over 30 years.

Factory-Direct Customization and Sourcing Security

High-safety public infrastructure demands strict, uncompromised material quality. Every batch of fire-resistant distribution lines must fully comply with authoritative type-testing frameworks like IEC 60331 for circuit integrity.

At Taitong Cable, we support your project timelines through a 100% factory-direct customized production model. We don't push pre-made, aging warehouse clearance items.Instead, we custom-manufacture every order of fire-resistant cables to align directly with your project's specific bills of quantities (BOQ)-tailoring exact multi-core combinations, cross-sectional steps (e.g., 5 X 16 mm2), and thermal performance ratings to match your local national utility criteria.

Contact our fireproof power distribution unit today to claim authorized product catalogs, custom structural blueprints, or to receive a fast, factory-direct cost estimation for your upcoming infrastructure development tender!
