Instrument Special Control Signal Cables

1.Product Introduction

Instrument Special Control Signal Cables are classified into three main types: shielded, unshielded computer cables, instrumentation signal cables, and intrinsically safe explosion-proof instrumentation cables. These cables suit fixed installation, flexible wiring, anti-interference, and explosion-protected applications. Taitong Cable Co., Ltd. delivers cost-effective, high-performance Instrument Special Control Signal Cables worldwide to support global technological progress and strive to build win-win partnerships with our customers.

2.Product Specifications

2.1.Computer Cable

Models:

2.1 PVC Sheathed, Overall Screened, Polyethylene Insulated Computer/Data Cable
2.2 PVC Sheathed, Pair Screened + Overall Screened, PE Insulated Computer cable
2.3 Flexible Overall Screened Computer Cable (Stranded Conductor)
2.4 Flexible Pair & Overall Screened Computer Cable

2.2.Instrumentation Cable

Models:

2.5 PVC Insulated & Sheathed, Overall Screened Control Cable
2.6 PVC Sheathed, Copper Tape Screened Control Cable
2.7 Flexible Screened Control/Instrument Cable
2.8 XLPE Insulated Screened Instrument Cable

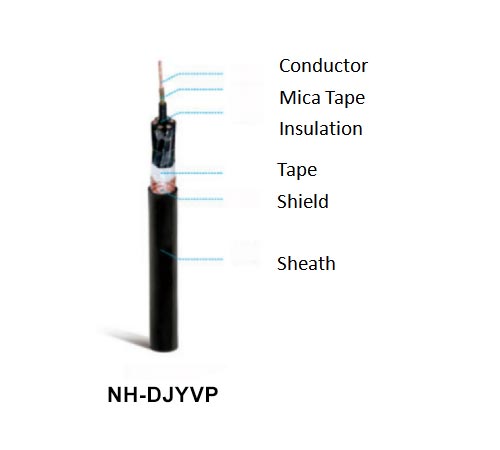

Flame Retardant & Fire Resistance Ratings for Instrumentation Cables

GB: ZA/ZB/ZC/ZD, WDZ series; NH (fire resistant); ia / ib / ic (intrinsically safe)
IEC/EN: IEC 60332-1/-3, CPR classes B2 ca/C ca/D ca
UL: CM/CMR/CMP (UL 444), VW-1

3.Reference Standard

● JB/T 13486-2018: Shielded Cables for Computers and Instrumentation
Corresponding Key International Standards: IEC 60502-1, IEC 61156BS 5308

● TICW/06-2009: Cables for Computers and Instrumentation
Corresponding Key International Standards:BS 5308, IEC 60332 Series IEC 61034, IEC 60754

● GB/T 19666-2019: General Rules for Flame Retardant & Fire Resistant Wires/Cables/Optical Cables

● Corresponding Key International Standards:IEC 60332 Series IEC 60754, IEC 61034IEC 60331, IEC 61851

4.Product Feature And Application

General Main Performance of Computer Cables

Computer cables (300/500V) feature high-insulation, low-capacitance design, single or dual shielding against EMI and crosstalk, good mechanical strength, and a -15℃ to +70℃ operating range. They are flame-retardant, moisture-proof, anti-aging, and fit indoor industrial use.

General Applications of Computer Cables

Mainly used for signal transmission, control connection and data communication of computers, DCS systems, industrial automation equipment, instruments and meters in industrial and mining enterprises, power plants, petrochemical, metallurgical, railway and other places with electromagnetic interference, to realize automatic control and signal monitoring.

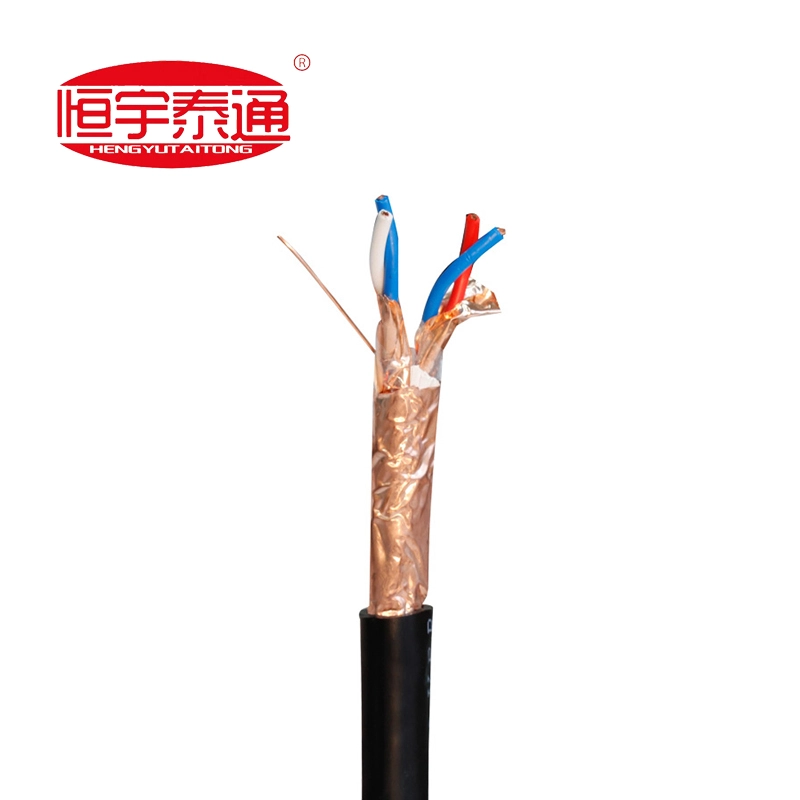

4.1 PVC Sheathed, Overall Screened, Polyethylene Insulated Computer/Data Cable

Key Performance:

It features single shielding for effective anti-interference performance, adopts PE insulation delivering excellent electrical properties, supports fixed laying only, and operates within a temperature range of -15℃~+70℃.

Application Field

It is designed for indoor fixed installation in general industrial environments with medium electromagnetic interference, serving computer systems, instrumentation devices, and weak-current control loops.

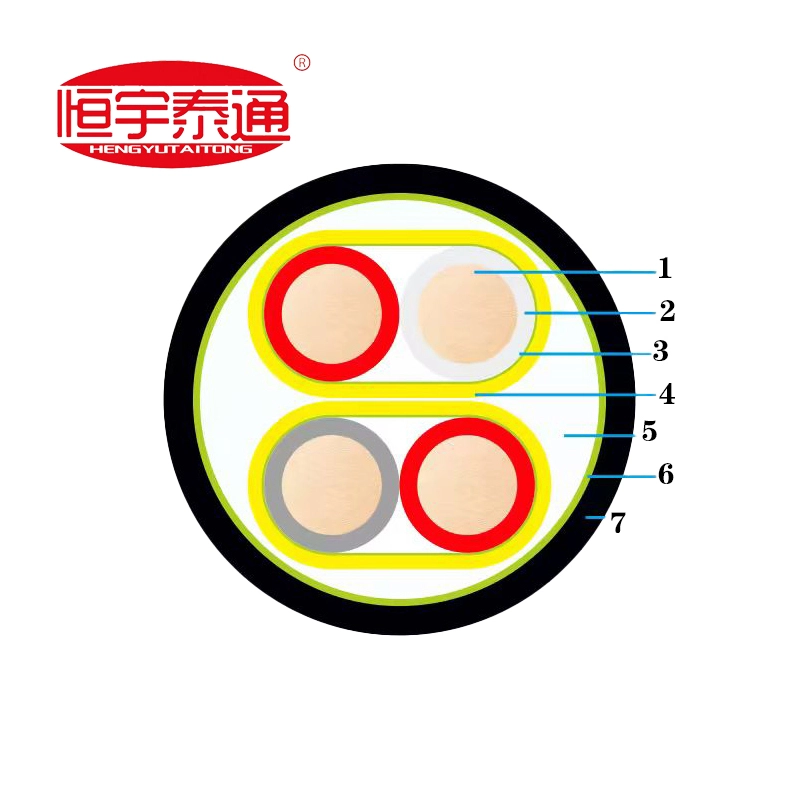

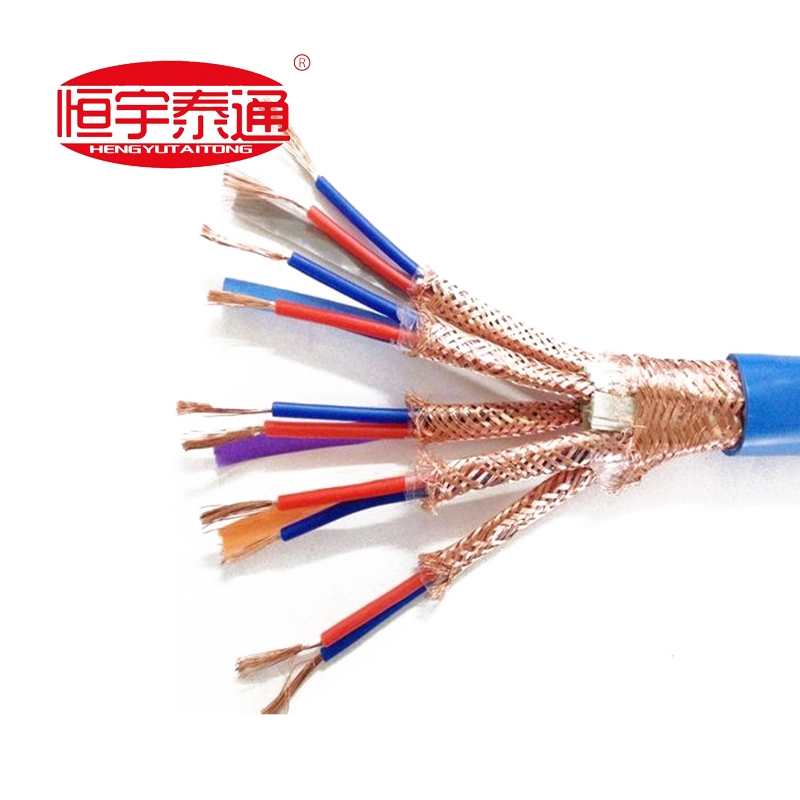

4.2 PVC Sheathed, Pair Screened + Overall Screened, PE Insulated Computer cable

Key Performance:

The cable employs double-layer shielding, delivering exceptional anti-crosstalk and anti-interference performance with high signal transmission stability, and is intended for fixed laying only.

Application Field:

It is ideal for signal transmission in DCS/PLC systems and precision instruments, and suitable for petrochemical and power automation control applications in strong electromagnetic interference environments.

4.3 Flexible Overall Screened Computer Cable (Stranded Conductor)

Key Performance:

It uses Class 5/6 flexible stranded copper conductors with single shielding, enabling flexible bending and making it suitable for mobile or frequently bent wiring applications.

Application Field:

It is suitable for semi-fixed or light mobile wiring, equipment interconnection, and cabinet internal connections that demand frequent bending.

4.4 Flexible Pair and Overall Screened Computer Cable

Key Performance:

It combines double shielding and high flexibility, provides ultra-low crosstalk and excellent interference resistance, and withstands repeated bending.

Application Field:

It is designed for precision automation systems, mobile equipment connections, light-duty drag chain applications, and measurement and control loops that require flexible wiring.

4.5 Copper conductor PVC insulated PVC sheathed copper wire braided shielded control cable

Rated voltage: 450/750V
Max operating temperature: 70℃
Good anti-interference (high frequency)
Fixed installation
Application:Control circuits, instrumentation, PLC cabinets, indoor and cable trench with moderate electromagnetic interference.

4.6 Copper conductor PVC insulated PVC sheathed copper tape shielded control cable

Rated voltage: 450/750V
Max operating temperature: 70℃
Excellent low-frequency magnetic interference resistance
Fixed laying only, poor flexibility
Application:Substations, power stations, strong electromagnetic interference environments.

4.7 Copper conductor PVC insulated PVC sheathed copper wire braided shielded flexible control cable

Rated voltage: 450/750V
Max operating temperature: 70℃
High flexibility, suitable for frequent bending
Application: Drag chains, moving equipment, robots, automated production lines.

4.8 Copper conductor XLPE insulated PVC sheathed copper wire braided shielded flexible control cable

Rated voltage: 450/750V
Max operating temperature: 90℃
High flexibility, better heat resistance
Application:Flexible control circuits in high-temperature workshops and moving equipment.

4.9 Copper conductor XLPE insulated PVC sheathed copper wire braided shielded control cable

Rated voltage: 450/750V
Max operating temperature: 90℃
Heat and aging resistance better than PVC insulation
Application:Fixed control circuits with high temperature and anti-interference requirements.

5.Production Capacity

Taitong Cable boasts robust manufacturing strength backed by advanced production lines, complete testing systems, professional R&D and patents. We specialize in Instrument Special Control Signal Cables with stable, large-scale output, supporting custom shielding, core count and flame-retardant specs. Aligned with national and international standards, our solutions serve global industrial automation, DCS, petrochemical and power markets with reliable quality and flexible supply capacity.

6.Price Advantage

Taitong Cable offers significant pricing advantages for Instrument Special Control Signal Cables. As a large-scale manufacturer with self-owned production facilities and integrated supply chain, we cut intermediate costs. Stable raw material procurement and automated production further improve efficiency. Our products deliver premium quality at competitive prices. Taitong support flexible batch customization with cost-effective solutions for global clients including distributors, contractors and industrial factories, balancing cost control and reliable performance.

7.Environmental philosophy of Taitong Cable

Taitong Cable upholds an eco-friendly philosophy for the power industry, aligning perfectly with the global green lifestyle. We adopt recyclable materials, low-emission production, and energy-efficient processes, complying with ISO14001. Our Eco-certified cables cut carbon footprint across power transmission. By linking green manufacturing to global low-carbon living, Taitong Cable builds a sustainable, circular ecosystem for the cable and power sector.
