Low-voltage power distribution cables 1kV and below

1.Product Introduction

Low-voltage power distribution cables 1kV and below with rated voltage up to and including 1kV (0.6/1kV) are core products widely applied in low-voltage power distribution systems, building, industry, and PV、wind power projects. Adopting copper or aluminum conductor with PVC, XLPE or other insulation and sheath materials, they feature optional flame-retardant, fire-resistant, low-smoke zero-halogen properties, stable electrical performance, high mechanical strength and easy installation. Taitong’s low voltage power distribution cables are your best choice.

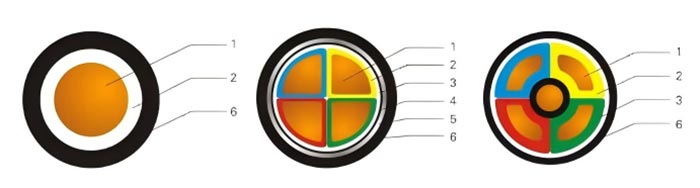

1.conductor 2.Insulation 3.Binding Tape 4.Bedding Layer 5.Armour layer 6.Outer sheath

2.Product Specifications

Product Model:

Ordinary Power Cable:

2.1 Copper conductor PVC insulated PVC sheathed power cable
2.2 Aluminum conductor PVC insulated PVC sheathed power cable
2.3 Copper conductor XLPE insulated PVC sheathed power cable
2.4 Aluminum conductor XLPE insulated PVC sheathed power cable

Steel Tape Armoured Power Cable:

2.5 Copper conductor PVC insulated PVC sheathed steel tape armored power cable
2.6 Aluminum conductor PVC insulated PVC sheathed steel tape armored power cable
2.7 Copper conductor XLPE insulated PVC sheathed steel tape armored power cable
2.8 Copper conductor PVC insulated PE sheathed steel tape armored power cable
2.9 Copper conductor XLPE insulated PE sheathed steel tape armored power cable

Low Smoke Zero Halogen; Flame Retardan; Fire Resistant:

2.10 Low smoke zero halogen flame retardant XLPE insulated PE sheathed power cable
2.11 Fire resistant XLPE insulated PVC sheathed power cable

3.Reference Standard

Key Corresponding International Standards

GB/T 12706.1-2020:

Identical adoption of IEC 60502-1:2004+AMD1:2009(Power cables with extruded insulation and accessories for 1 kV (Um=1.2 kV) and 3 kV (Um=3.6 kV)

Special Performance Standard Matching

Flame Retardant (ZR):

GB/T 18380; IEC 60332-3-24

Fire Resistant (NH):

GB/T 19216; IEC 60331 series.

Low Smoke Zero Halogen (WDZ):

IEC 61034 and IEC 60754

4.Product Feature And Application

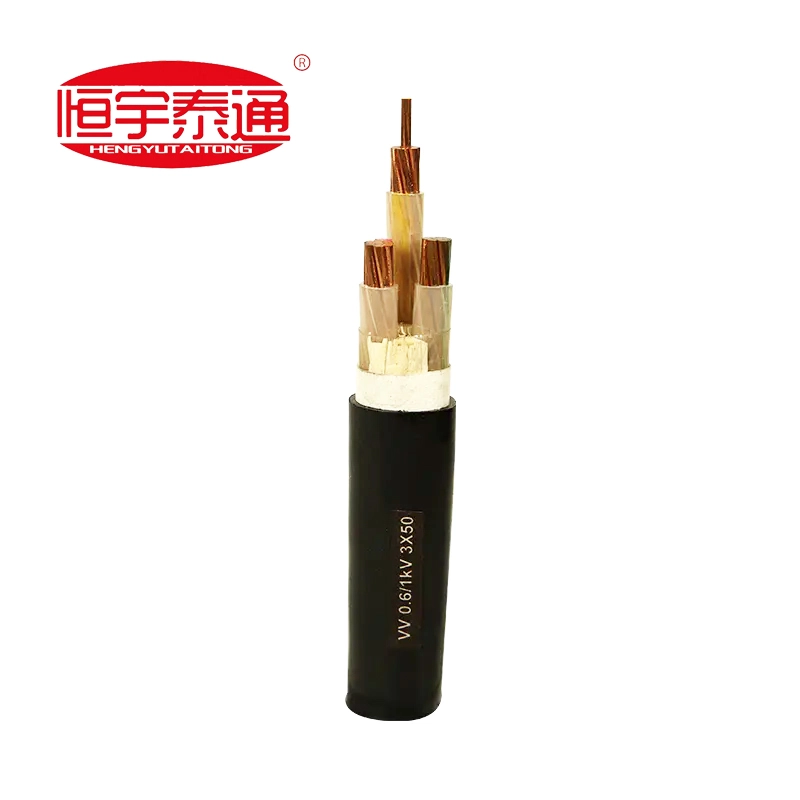

4.1 Copper conductor PVC insulated PVC sheathed power cable and Aluminum conductor PVC insulated PVC sheathed power cable

Features: PVC insulation, PVC sheath, economical cost, rated operating temperature 70°C, non-armoured for fixed installation.
Applications:
Indoor, cable trough and cable tray installations free from mechanical stress; general power and lighting distribution in civil buildings and light industrial facilities.

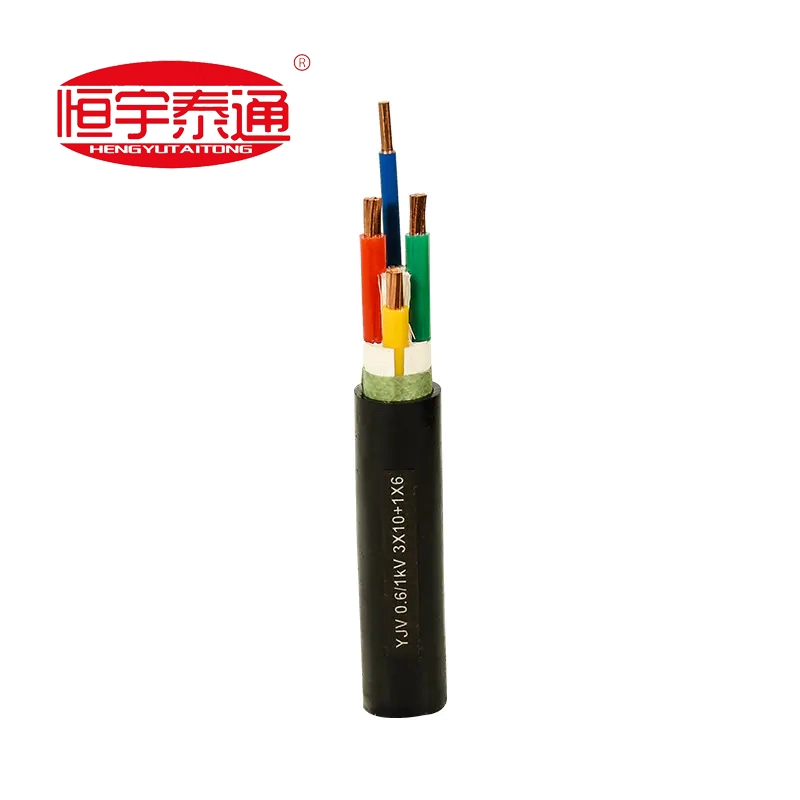

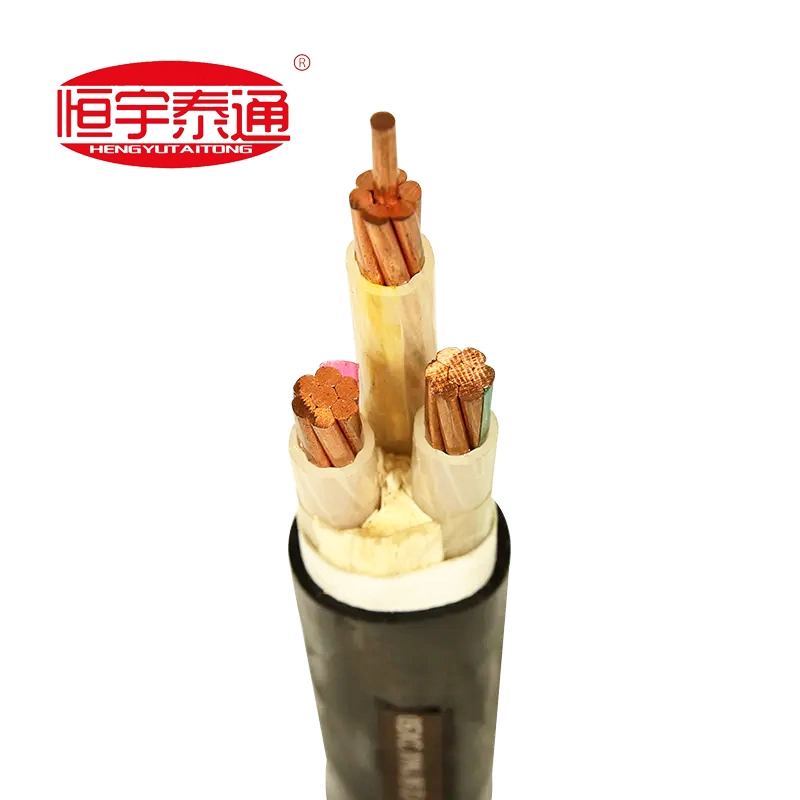

4.2 Copper conductor XLPE insulated PVC sheathed power cable and Aluminum conductor XLPE insulated PVC sheathed power cable

Features: XLPE insulation, PVC sheath, rated operating temperature 90°C, higher current-carrying capacity, superior thermal and aging resistance, stable electrical performance (industry mainstream).
Applications: Primary low-voltage power distribution for civil, industrial and municipal projects; building mains, new energy support, indoor、conduit and cable tray installation.

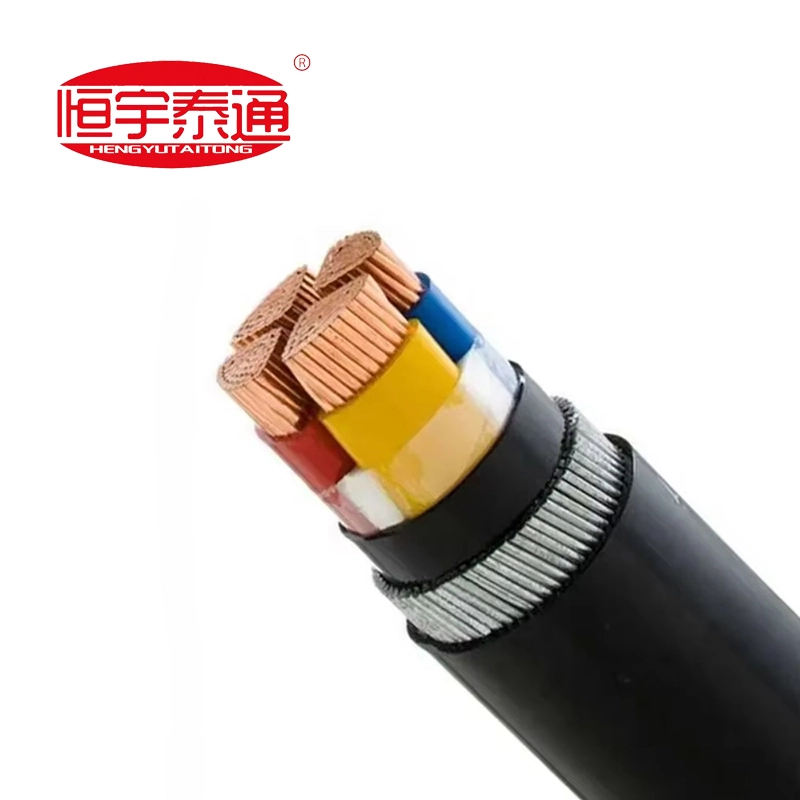

4.3 Copper conductor PVC insulated PVC sheathed steel tape armored power cable;

Copper conductor PVC insulated PE sheathed steel tape armored power cable;
Aluminum conductor PVC insulated PVC sheathed steel tape armored power cable:

Features: PVC insulation, steel tape armoured, excellent mechanical damage and crush resistance.
Applications: Direct burial, underground and outdoor installations exposed to external force; municipal power networks and residential outdoor distribution.

4.4 Copper conductor XLPE insulated PVC sheathed steel tape armored power cable and Copper conductor XLPE insulated PE sheathed steel tape armored power cable:

Features: XLPE insulation, steel tape armoured, 90°C rated temperature, high electrical and thermal performance, crush and impact resistant.
Applications: Outdoor direct burial, industrial mains, infrastructure and heavy-duty power distribution requiring mechanical protection.

4.5 Low smoke zero halogen flame retardant XLPE insulated PE sheathed power cable

Features: XLPE insulation, PE sheath, low-smoke zero halogen (LSZH) flame-retardant, non-halogen emission, low toxicity and low corrosive fumes, eco-friendly.
Applications: High-rise buildings, subways, hospitals, shopping malls and public enclosed spaces with strict fire and environmental safety requirements.

4.6 Fire resistant XLPE insulated PVC sheathed power cable

Features: XLPE insulation, PVC sheath, fire-resistant design, maintains circuit integrity for a specified duration under fire conditions.
Applications: Fire emergency systems, evacuation lighting, fire pumps, safety monitoring and other circuits requiring continuous power supply during fire.

5.Production Capacity

Taitong Cable is a leading Chinese manufacturer with over 20 years of wires and cables production and sell experience. Owing two production facilities equipped with more than 100 sets of advanced production and testing equipment, Taitong can fully supports bulk cable supply demands from domestic and overseas customers with guaranteed on-time delivery.
We aspire to bring the Taitong Cable brand to a broader global market, delivering premium services as well as high-performance, quality cable products to our clients worldwide.

6.Price Advantage

Low-voltage power distribution cables 1kV and below supplied by Taitong Cable are offered at direct factory prices with no middleman margins. Our pricing is fully transparent from production through delivery, giving customers complete peace of mind, and this is exactly why Taitong has taken root and thrived in the Chinese market. Meanwhile, thanks to our significant price advantage and exceptional cost-performance ratio, our cables have earned growing preference and praise from international customers.

7.Environmental Philosophy

Coupled with the R&D and testing of new products by our professional technical and research team, Taitong Cable has been granted a number of patents for new products and new technologies. From the selection of raw materials to strict control over every production step, we strictly manage the production process and end cable products in line with ISO 14001 standards, adhering to the green manufacturing philosophy and keeping pace with global environmental protection requirements and advance with the times.
