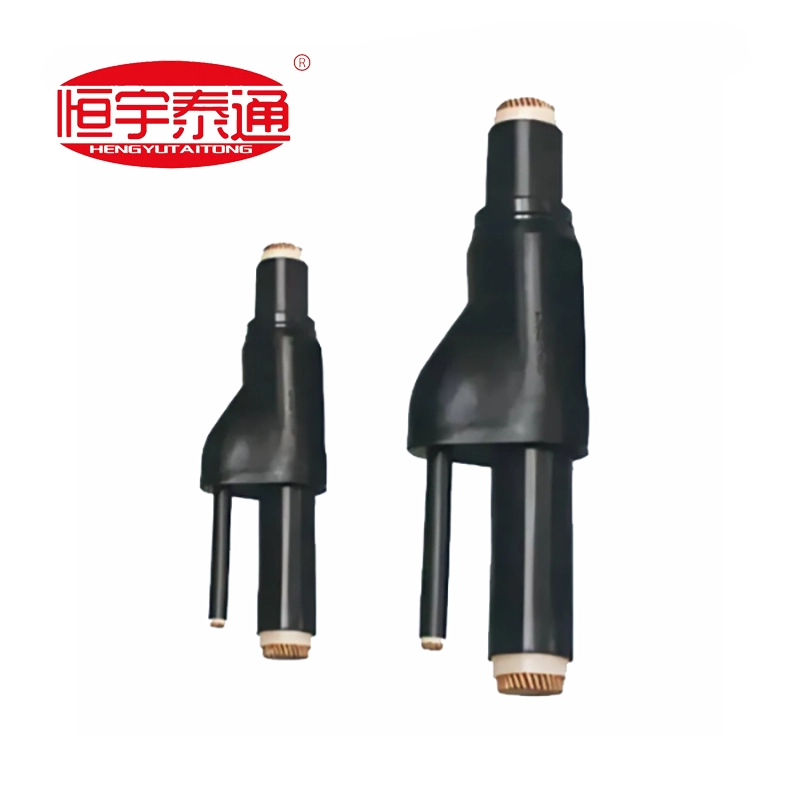

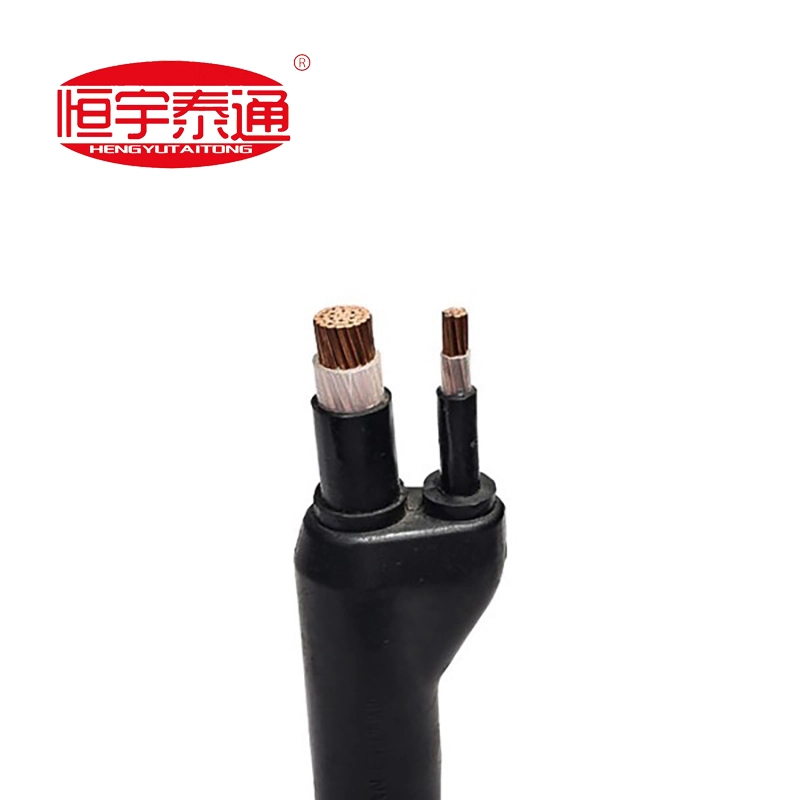

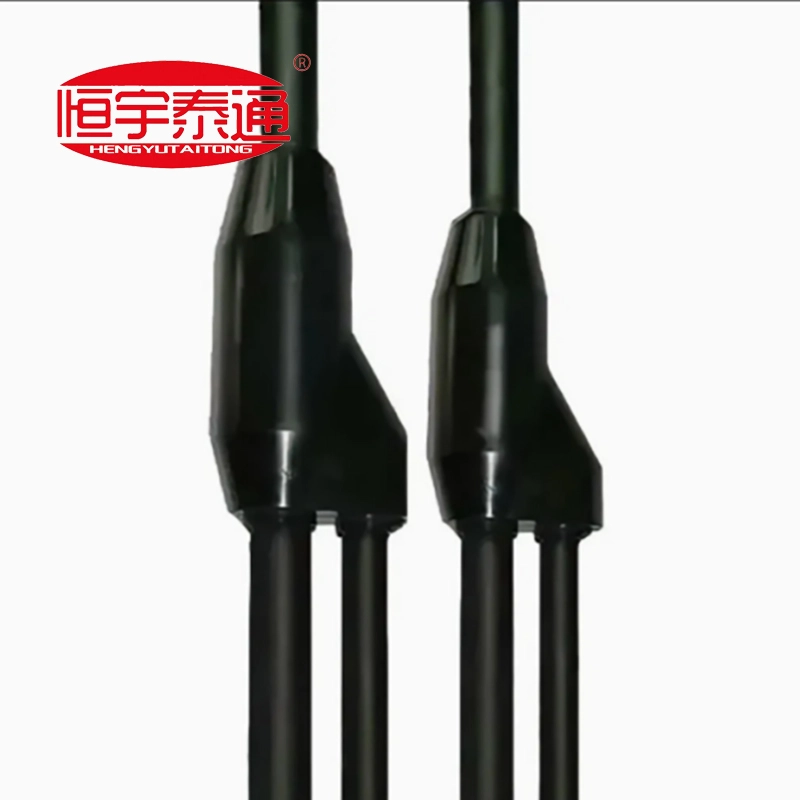

Pre-branched cables prefabricated for electrical power

1.Product Introduction

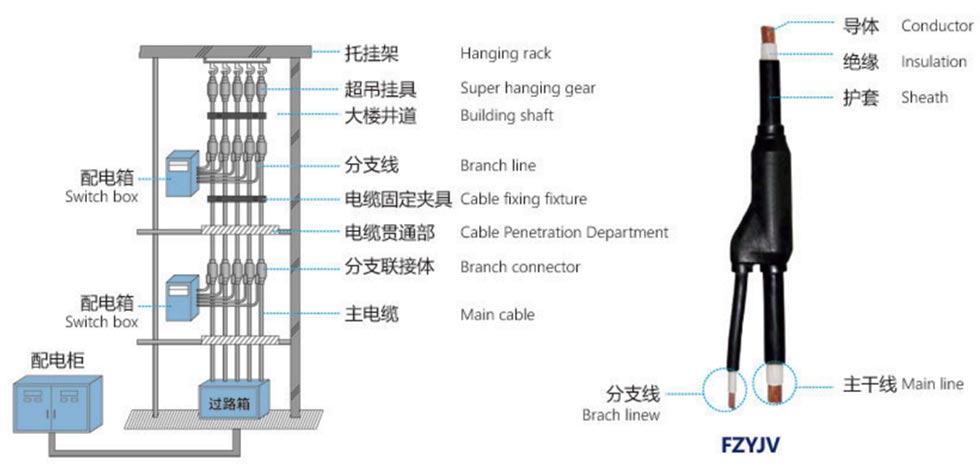

Taitong’s Pre-branched cables prefabricated for electrical power are offered with different cores configurations, will be the best choice for vertical power distribution in buildings, lighting circuits, fire power supply, and various centralized power distribution systems requiring reliable branch connections. Manufactured with required conductor materials, insulation layers and sheath options from customer’s requirements, cables prefabricated for electrical power will deliver low smoke, zero halogen and flame retardancy. High mechanical strength, easy installation and fewer on-site faults ensure reliable power transmission for buildings and industrial applications.

2.Technical Specifications

Product Model:

2.1 Copper conductor PVC insulated PVC sheathed prefabricated branch power cable

2.2 Copper conductor XLPE insulated PVC sheathed prefabricated branch power cable

2.3 Copper conductor low smoke zero halogen XLPE insulated PVC sheathed prefabricated branch power cable

2.4 Copper conductor fire-resistant PVC insulated PVC sheathed prefabricated branch power cable

2.5 Copper conductor fire-resistant XLPE insulated PVC sheathed prefabricated branch power cable

3.Reference Standard

1. JB/T 10636-2006

Corresponding main international standard: IEC 60502 (Power cables with extruded insulation and their accessories for rated voltages from 1 KV (Uₘ = 1.2 KV) up to 30 KV (Uₘ = 36 KV))

2. JG/T 147-2002

Corresponding main international standard: IEC 60502 (Supplementary reference: IEC 60227 for PVC insulated building wires)

3. GB/T 19666-2019

Corresponding main international standards: IEC 60332 (Flame propagation)、IEC 60331 (Fire resistance)、IEC 61034 (Smoke density)、IEC 60754 (Halogen acid gas emission)

4.Product Feature And Application of Pre-branched cables prefabricated for electrical power

4.1 Pre-fabricated Branch Copper conductor PVC insulated PVC sheathed prefabricated branch power cable

Features: Copper conductor, PVC insulated & sheathed, prefabricated branch structure, stable electrical performance, cost-effective.

Applications: Indoor, cable trenches, non-load-bearing building power distribution, general lighting circuits.

4.2 Pre-fabricated Branch XLPE Insulated PVC Sheathed Power Cable

Features: Copper conductor, XLPE insulation, PVC sheath, prefabricated branches, high heat resistance, better insulation and aging resistance.

Applications: High-rise buildings, industrial facilities, indoor/duct laying, medium-load power distribution systems.

4.3 Pre-fabricated Branch Copper conductor low smoke zero halogen XLPE insulated PVC sheathed prefabricated branch power cable

Features: Copper conductor, low smoke zero halogen (LSZH) flame-retardant, XLPE insulated, PVC sheathed, prefabricated design, eco-friendly, low smoke, non-halogen.

Applications: Subways, hospitals, shopping malls, high-density public buildings, fire-safety critical places.

4.4 Pre-fabricated Branch Copper conductor fire-resistant PVC insulated PVC sheathed prefabricated branch power cable

Features: Copper conductor, fire-resistant, PVC insulated & sheathed, prefabricated branches, reliable power supply under fire conditions.

Applications: Firefighting power systems, emergency circuits, high-rise building fire protection distribution.

4.5 Pre-fabricated Branch Copper conductor fire-resistant XLPE insulated PVC sheathed prefabricated branch power cable

Features: Copper conductor, fire-resistant, XLPE insulation, PVC sheath, prefabricated branches, high heat and fire resistance, long service life.

Applications: Critical fire power supply, tunnels, commercial complexes, industrial and civil fire safety distribution networks.

5.Production Capacity

Taitong Cable is equipped with advanced production and testing facilities. It delivers full cable series with two plants, supports custom production, and ensures stable, large-scale output with efficient manufacturing and strict quality control. Taitong has built two production plants covering 60,000 square meters. Clients from both domestic and overseas are warmly welcome to visit our factory.

6.Price Advantage

Taitong offers highly competitive pricing via scaled production, optimized supply chain and direct factory sales. Cost savings are passed to customers without compromising product quality and compliance with our Pre-branched cables prefabricated for electrical power.

7.Environmental philosophy of Taitong Cable

Taitong Cable is committed to producing and supplying high-standard eco-friendly cable products and to building a green, low-carbon cable industry ecosystem and adhere to environmentally compliant manufacturing. Taitong has its own R&D team and test lab, following ISO 14001 standards, making it realized in terms of technology and effectiveness to cut carbon emissions and waste. Taitong strive to deliver sustainable cable solutions and drive the industry’s green transformation.
