NYY Low voltaged Copper Conductor PVC Insulated Power Cable

1.Product Introduction

Taitong’s rated voltage power distribution cable, compatible with rated operating voltages of 1KV (Um=1.2KV)and 3KV(Um=3.6KV), 0.6/1kV NYY Cu/PVC/PVC Low voltaged Copper Conductor PVC Insulated Power Cables will be the best choice for low-voltage power systems such as industry facilities, commercial buildings, infrastructure and power distribution networks. PVC Insulated PVC Sheathed Power Cable、Aluminium Conductor PVC/PVC Cable、PVC/PVC Steel Tape Armoured Cable、Aluminum PVC/PVC Steel Tape Armoured Cable、Copper SWA Armoured Power Cable manufactured with required conductor materials, insulation layers and sheath, which show in the product specification sheet below, exhibit the key advantages including excellent electrical insulation, stable transmission, strong mechanical performance and long service life with safe, reliable operation.

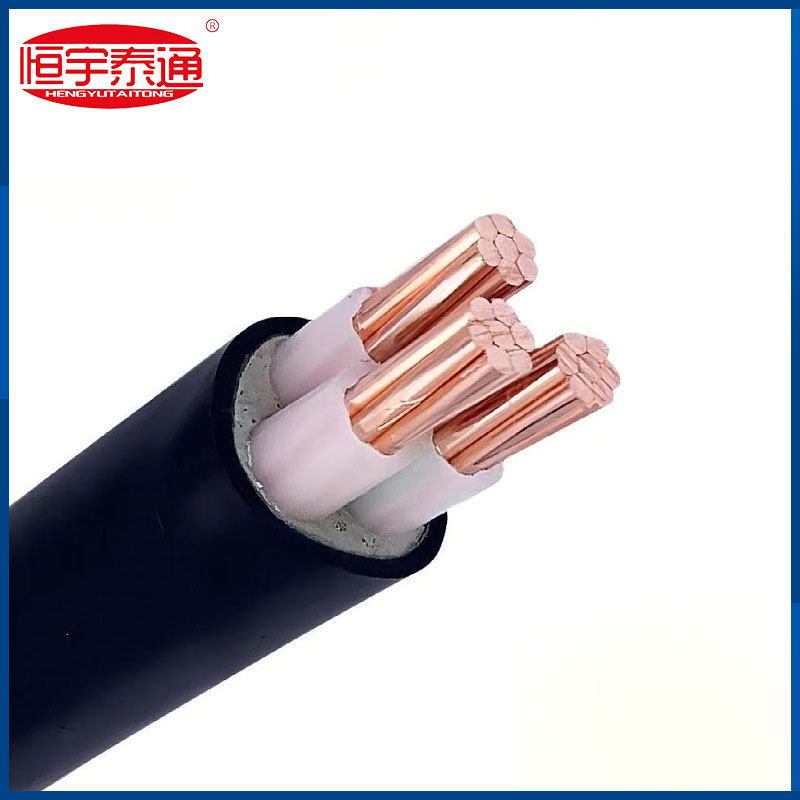

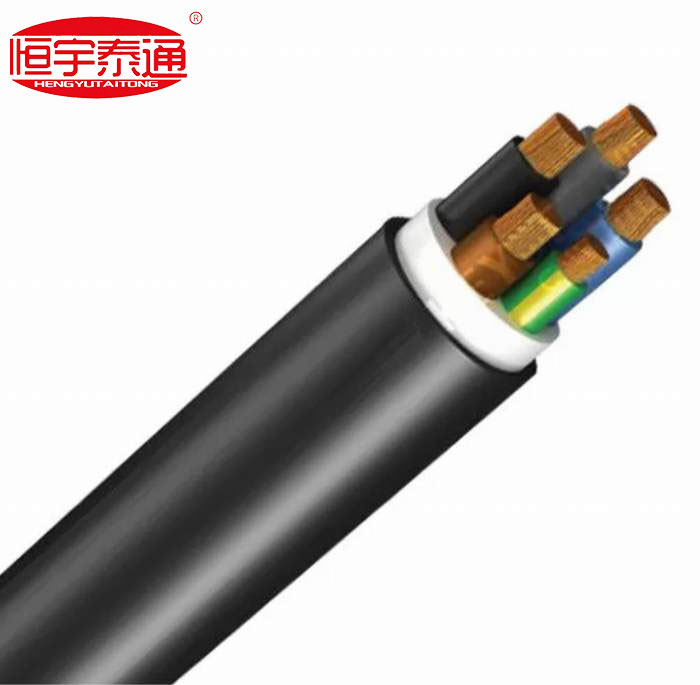

Note: The image shows a general category of power cables, while the title refers to a specific specification.

We offer a full range of power cable models, please contact us for more options.

                                         0.6/1kV NYY Cable GB:VV - IEC:Cu/PVC/PVC

2.Product Specifications

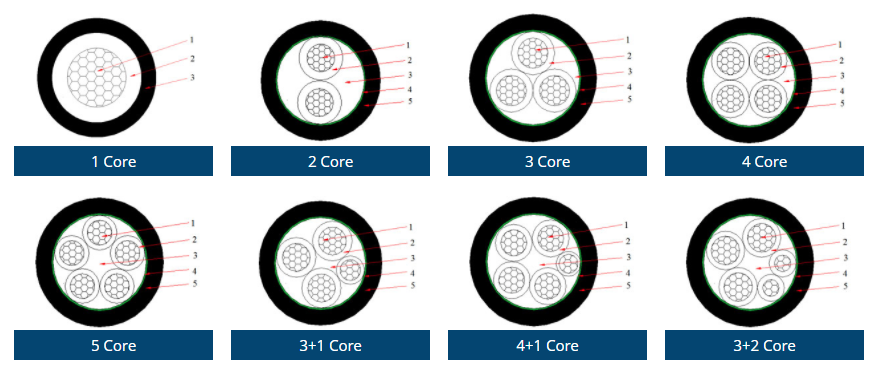

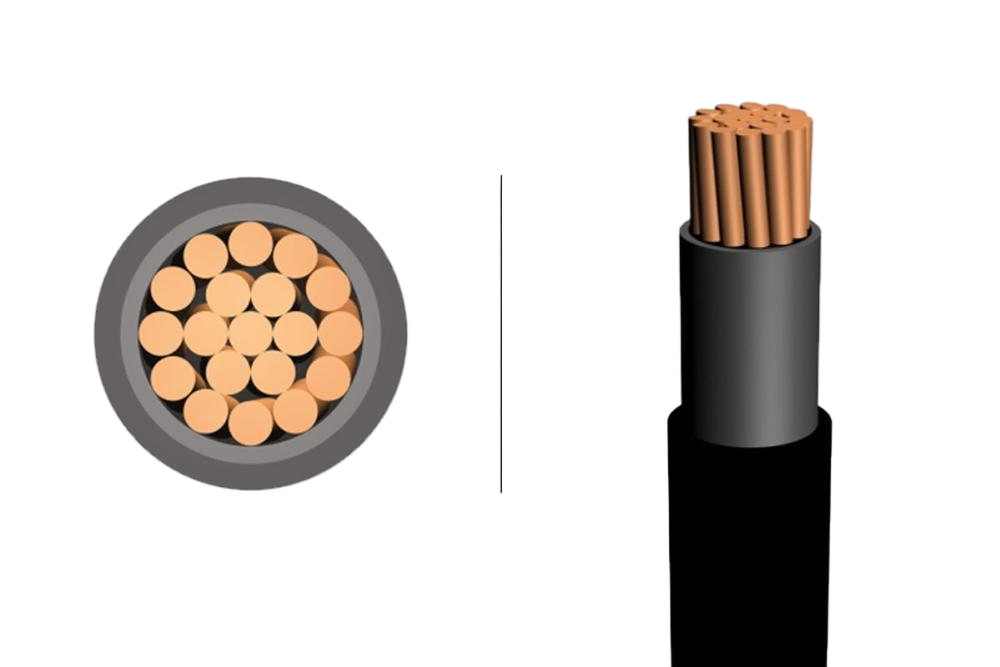

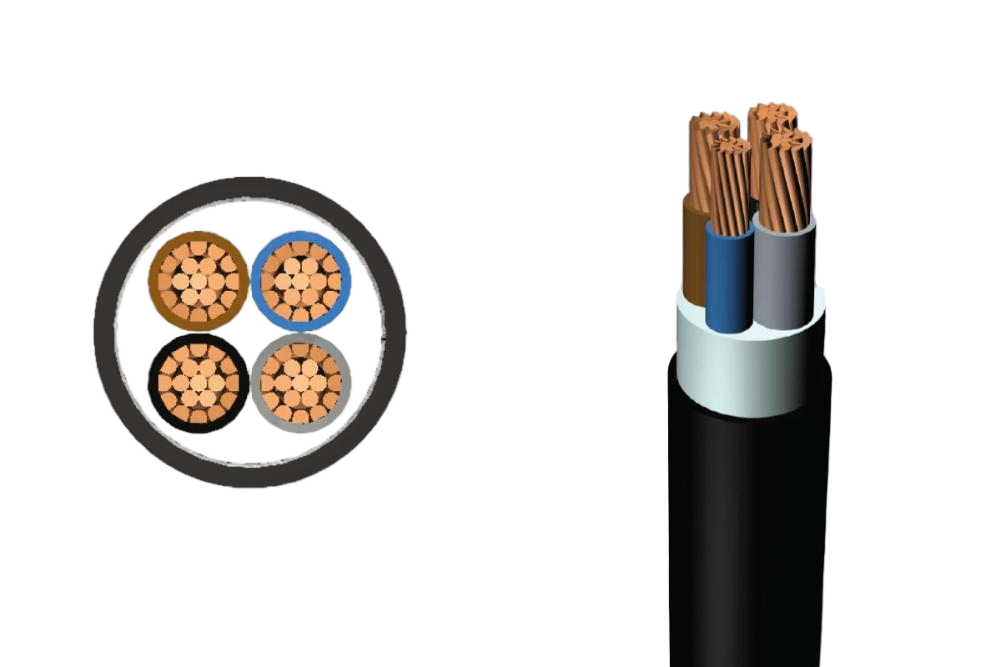

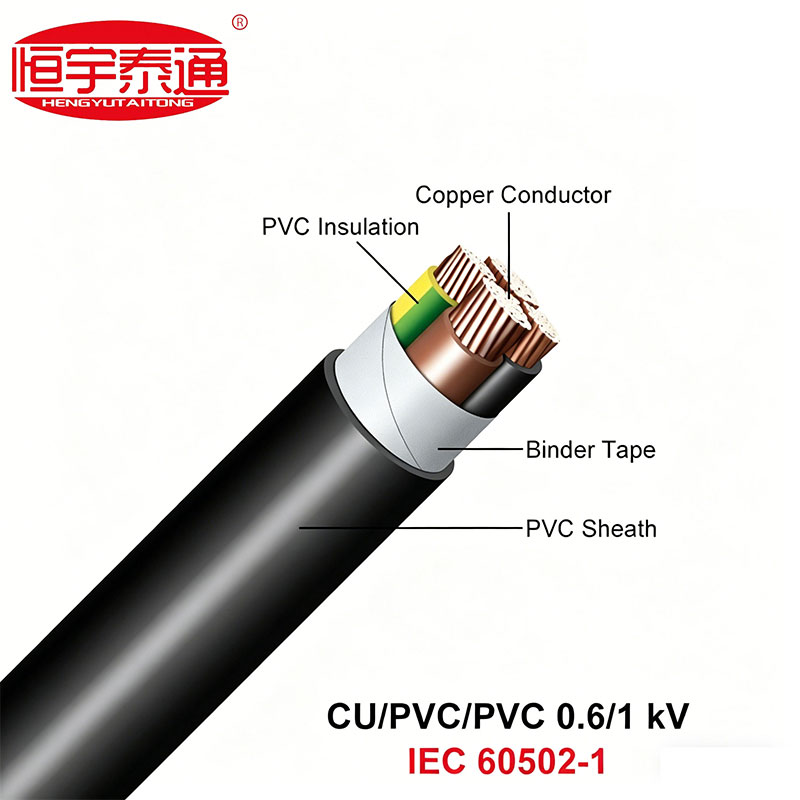

Product Structure:

Conductor (CU): Plain annealed copper, typically stranded (Class 2) for flexibility and conductivity, though solid conductors (Class 1) may be used for smaller sizes.

Insulation (PVC): A primary layer of Polyvinyl Chloride (PVC) protects each individual core.

Sheath (PVC): An outer layer of PVC provides the final protective jacket against moisture, chemicals, and abrasion.

Voltage Rating: Rated for 600V (phase-to-earth) and 1000V (phase-to-phase).

3.Reference Standard

Key Corresponding International Standards

IEC 60228 Conductors

IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

4.Product Feature And Application

Low voltaged Copper Conductor PVC Insulated Power Cables are designed for fixed installation where there is no risk of significant mechanical damage:

Residential and Commercial: Internal wiring, conduit systems, and main power supplies for HVAC or elevator motors.

Industrial: Power supply to motors, switch gear, and control panels in plants.

Infrastructure: Urban electricity networks, street lighting, and installation in cable ducts or tunnels.

Environment: Suitable for indoor and outdoor use, and can be laid directly in the ground or in concrete

5.Production Capacity

Taitong Cable is a leading manufacturer specializing in the large-scale production of high-quality electrical wires and power cables. Equipped with advanced manufacturing and testing facilities, we provide a full series of cable products designed to meet the rigorous demands of global infrastructure and industrial projects.

6.Price Advantage

Taitong provides highly competitive pricing for Low voltaged Copper Conductor PVC Insulated Power Cables through large-scale manufacturing and a streamlined global supply chain. By leveraging direct factory sales, we eliminate middleman markups, passing significant cost savings to our clients in the industrial and infrastructure sectors.

7.Environmental philosophy of Taitong Cable

Taitong Cable is dedicated to manufacturing and supplying high-quality, eco-friendly cable products while advancing a sustainable, low-carbon industry ecosystem. We strictly follow environmentally compliant production processes, actively utilize recyclable materials, and continuously reduce carbon emissions and industrial waste in line with ISO 14001 standards.

Our commitment is to provide reliable, sustainable cable solutions that support global environmental goals and accelerate the green transformation of the cable industry.
