H01N2-E Extra Flexible Rubber Welding Cable EN 50525

H01N2-E Extra Flexible Rubber Welding Cable from Taitong Cable, Chinese manufacturer, complies with EN 50525-2-81. It adopts Class 6 (Class-E) finely stranded copper conductor, insulated and sheathed with EPR rubber compound. This cable features excellent flexibility, ozone resistance and oil resistance. Suitable for arc welding machines at construction sites, shipyards and steel workshops. As a professional H01N2-D/E cables supplier, Taitong Cable welcomes global clients for wholesale, bulk purchase and project inquiry.

Applications

---

H01N2-E welding cable is applied for welding machine connections. It serves heavy duty rubber welding cable for industrial welding, steel works, construction and shipyard projects. Perfect for mobile welding equipment, favored by contractors, EPC customers and wholesale purchasers for bulk order.

Approvals

---

 HAR approved cable

 Compliant with EN 50525-2-81 (supersedes HD 22.6 S2)

 Stranding: VDE-0282 (extra-fine bare copper)

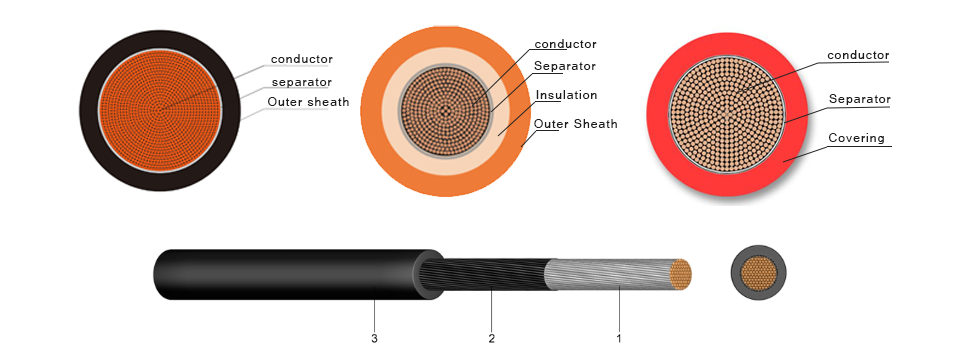

Cable Construction of H01N2-E welding cable

---

Conductor: Class 6 finely stranded bare copper

Separator: PET (Polyester Tape) layer

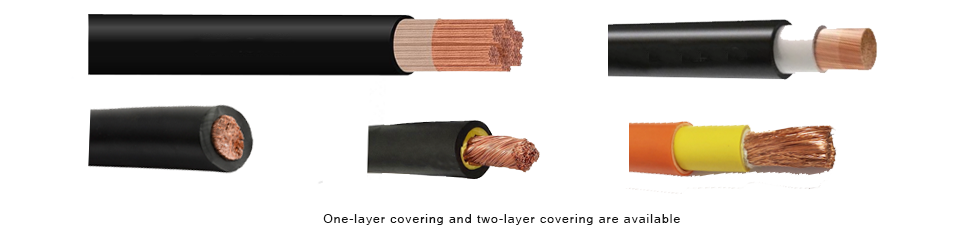

Covering:

One layer: Type EM 5 cross-linked elastomer compound, complying with EN 50363-2-2

Tow layers:

Insulation: EPR rubber compound (EM 5 / EI 7)

Outer sheath: EPR rubber compound (EM 5)

Sheath colour: Black (Other colours available upon request.)

Electrical Parameters

---

Rated voltage: 100/100V

Test Voltage: 1000 V AC, 5 min, 50 Hz

Minimum Bending Radius (to DIN VDE 0298-300):

For flexing / free movement applications: 10 x the outer diameter (10 × D) of the cable.

(Note: Some manufacturers specify an absolute minimum of 7.5 x D for cable cross-sections up to 35 mm²).

For fixed / static installations: 5 x the outer diameter (5 × D) of the cable.

Fixed installation: -40°C ~ +85°C

Flexed / moving operation: -20°C ~ +85°C

Max conductor temperature: +85°C;

Short-circuit peak: +250°C

Properties: Extra flexible, oil resistant, ozone resistant, weather resistant

Size of cable: 10 mm² to 240 mm²

General data for Type H01 N2-E (EN 50525-2-81)

---

Taitong Cable: Factory Supplier of H01N2-E Extra Flexible Rubber Sheathed Welding Cable

Taitong Cable, established in 2002, owns a dedicated rubber cable plant with top-tier domestic project track records, is your trusted supplier of H01N2-E welding cables with high quality and factory-direct price. As an experienced cable manufacturer, we are actively seeking global cooperation for long cooperation. Our H01N2-E Extra DIN EN 525-2-81 Flexible Rubber Welding Cable meets European standards, ideal for buyers across EU and European market regions, suitable for large warehouses and project orders. We holds ISO, CE certifications and full test reports. Factory visits are welcome. Backed by advanced production equipment, in-house laboratory, R&D team and multiple patents, Taitong Cable offers on-site inspection, after-sales service and technical support for our global partners.

H01N2-E arc welding leads produced by Taitong Cable are widely purchased for industrial welding projects, shipbuilding, steel fabrication, construction sites, robotic welding automation projects, heavy machinery workshops, pipeline fabrication and metalworking workshops. Ideal for EPC contractors, engineering firms, wholesalers and bulk purchasers for large-site welding jobs.
