Mine safe flexible rubber sheathed power cables

1.Product Introduction

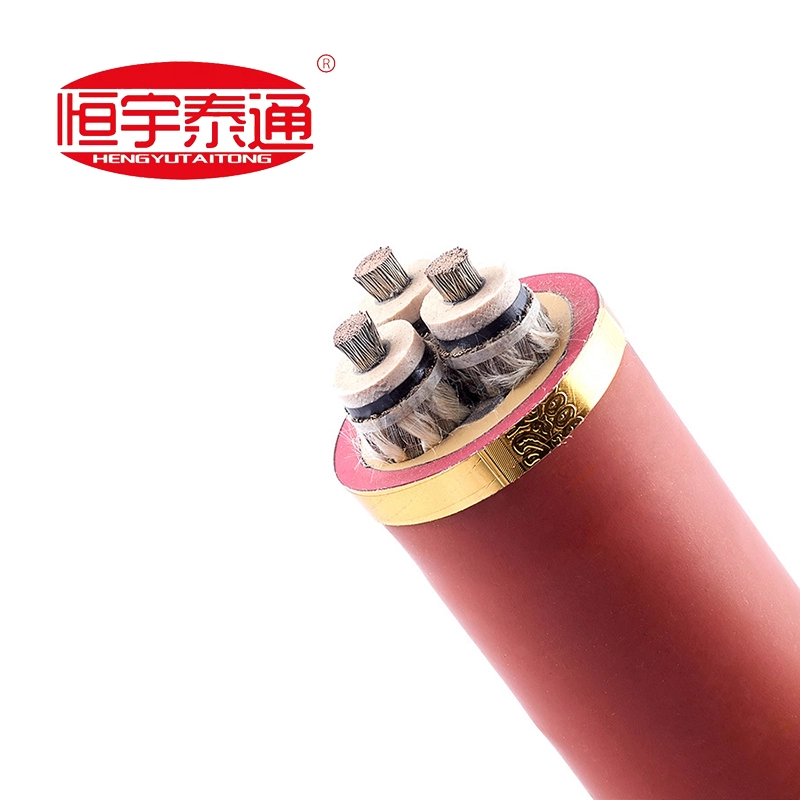

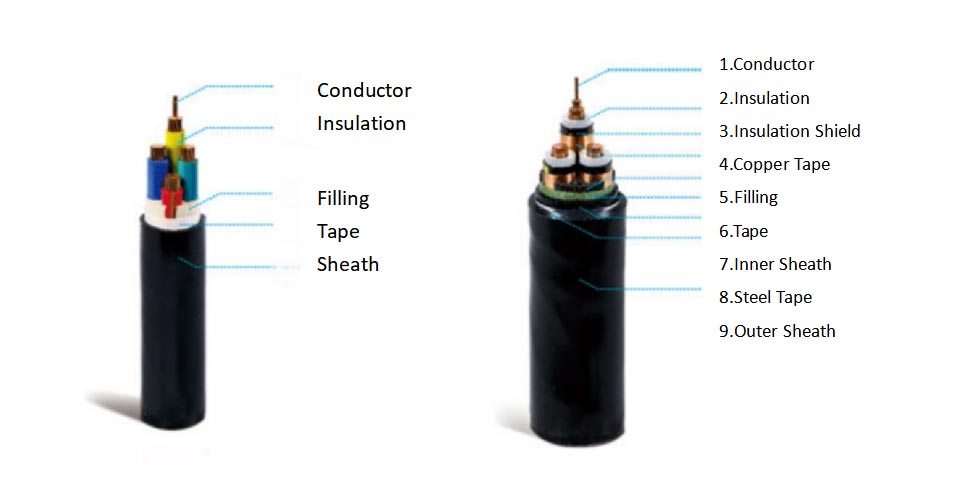

Mine safety special flexible rubber sheathed power cable consists of a stranded copper conductor, ethylene - propylene rubber (EPR) insulation, a special rubber sheath, and a grounding with binding layer, which features high flexibility, robust mechanical protection, and oil, abrasion, and impact resistance. Designed per mining safety standards, it delivers stable electrical performance, low smoke, halogen-free, flame-retardant and anti-static properties, ensuring safe operation in explosive gas environments. Mine safe flexible rubber sheathed power cables are mainly used for mobile equipment power supply, excavation machinery connection and temporary power transmission in underground coal mines, providing reliable power transmission under harsh mining conditions.

2.Product Parameter (Specification)

2.1 Rubber-sheathed flexible cables (mainstream for underground mobile & mining machinery)

2.2Plastic-insulated power cables for coal mining (for fixed laying)

Models:

Mine-type rubber-sheathed flexible power cable (ordinary type)
Mine-type light-duty rubber-sheathed flexible power cable
Mine-type shielded rubber-sheathed flexible power cable
Mine-type shielded rubber-sheathed flexible power cable with special grounding conductor
Mine-type shielded rubber-sheathed flexible power cable with grounding and monitoring cores
Mine-type rubber-sheathed flexible mining cable for shearers
Mine-type PVC insulated, PVC sheathed, non-armoured power cable
Mine-type XLPE insulated, PVC sheathed, non-armoured power cable
Mine-type XLPE insulated, steel tape armoured, PVC sheathed power cable
Mine-type XLPE insulated, fine steel wire armoured, PE sheathed power cable
Mine-type XLPE insulated, heavy steel wire armoured, PE sheathed power cable

3.Feature And Application of Mine safe flexible rubber sheathed power cables

3.1 Mine-type rubber-sheathed flexible power cable (ordinary type)

Key Performance: Equipped with EPR insulation and CR rubber sheath, the conductor is tinned soft stranded copper; the rated voltage reaches up to 0.66/1.14 KV, and the cable offers flame retardant, abrasion resistant and anti-static property.

Application: Used for fixed or semi-mobile power connection of general mining equipment in coal mines with non-corrosive gas environment.

3.2 Mine-type light-duty rubber-sheathed flexible power cable

Key Performance: It features a lightweight flexible structure, EPR insulation, and a weather and oilresistant rubber sheath, is suitable for low rated voltage applications, and delivers excellent bending performance.

Application: Applied to light mobile equipment and portable electrical tools in coal mines and mining tunnels for low-power power supply.

3.3 Mine-type shielded rubber-sheathed flexible power cable

Key Performance: Equipped with tinned copper braid shielding, EPR insulation, flame retardant rubber sheath, stable electrical performance, anti-interference and explosion-proof compliant.

Application: Deployed for power transmission of movable mining machinery and equipment with electromagnetic shielding requirements in underground coal mines.

3.4 Mine-type shielded rubber-sheathed flexible power cable with special grounding conductor

Key Performance: The cable integrates copper tape with copper wire composite shielding and a dedicated large cross-section grounding core, with EPR insulation and a high mechanical strength rubber sheath.

Application: Used for high-power mobile mining equipment and movable substations requiring reliable grounding protection in underground coal mines.

3.5 Mine-type shielded rubber-sheathed flexible power cable with grounding and monitoring cores

Key Performance: It consists of power cores, a grounding core and an independent insulation monitoring core, with EPR insulation as well as a flame-retardant and tear-resistant rubber sheath.

Application: Applied to heavy-duty mobile mining equipment needing online insulation monitoring and fault warning in underground coal mines.

3.6 Mine-type rubber-sheathed flexible mining cable for shearers

Key Performance: This cable offers extra-high flexibility, features EPR insulation, copper shielding, a tear- and drag-resistant rubber sheath, and integrates both power and control cores.

Application: Specially used for power supply and control signal transmission of coal mining shearers and heavy-duty scraper conveyors in underground coal mines.

3.7 Mine-type PVC insulated, PVC sheathed, non-armoured power cable

Key Performance: Uses solid or compact stranded copper conductor, PVC insulation and PVC sheath, rated voltage up to 8.7/10 KV, rated operating temperature 90℃, flame retardant, oil and aging resistant.

Application: Used for fixed power transmission and distribution in coal mines with dry indoor or cable trench laying conditions, no mechanical external force protection required.

3.8 Mine-type XLPE insulated, PVC sheathed, non-armoured power cable

Key Performance: Adopts solid or compact stranded copper conductor, XLPE insulation and PVC sheath, max short-circuit temperature 250℃, flame retardant, good thermal and electrical stability.

Application: Applied to fixed power supply systems in coal mines for indoor, cable trough and pipeline laying without mechanical stress.

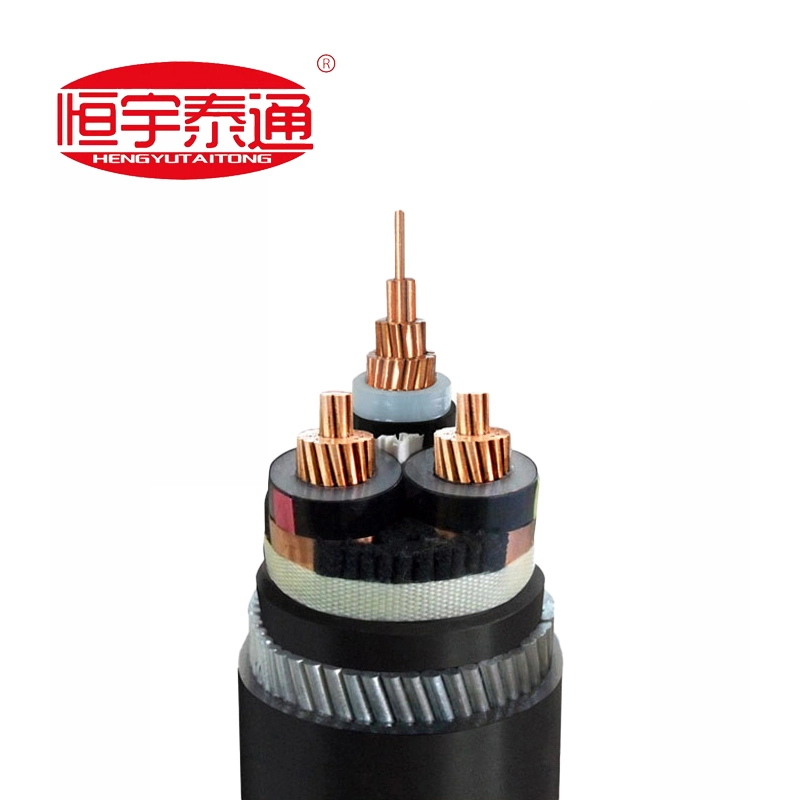

3.9 Mine-type XLPE insulated, steel tape armoured, PVC sheathed power cable

Key Performance: Features XLPE insulation, steel tape armoured, PVC outer sheath, crush resistant, flame retardant, moisture and chemical corrosion resistant.

Application: Suitable for fixed underground power distribution in coal mines, buried or cable trench laying, capable of bearing moderate mechanical crushing forces.

3.10 Mine-type XLPE insulated, fine steel wire armoured, PE sheathed power cable

Key Performance: Equipped with XLPE insulation, fine steel wire armoured, PE outer sheath, high tensile strength, impact resistant, flame retardant and moisture proof.

Application: Deployed for fixed power transmission in coal mines with vertical installation or high mechanical tension, such as mine shafts and inclined roadways.

3.11 Mine-type XLPE insulated, heavy steel wire armoured, PE sheathed power cable

Key Performance: Integrates XLPE insulation, heavy steel wire armoured, PE outer sheath, extremely high tensile and impact resistance, suitable for harsh mechanical conditions.

Application: Specially used for fixed power supply in coal mine shafts, vertical wells and severe environments with heavy mechanical impact and large tension.

4.Production Details

Taitong Cable boasts a large-scale intelligent production base with advanced extrusion, cabling and testing lines, supporting an annual cable output of over 10 million kilometers. We run dedicated production workshops for mine-use rubber-sheathed special cables, covering series in full specifications. Our robust supply system ensures stable raw material stocking, flexible batch scheduling, and fast order fulfillment. Taitong provides customized Mine safe flexible rubber sheathed power cables, strict mine safety compliance, and on-time global delivery. For coal mine rubber flexible cables, we guarantee short lead times, large-quantity supply, and consistent quality to meet underground mining equipment power connection demands worldwide.

5.Price Advantage

Taitong Cable produce series of wires and cables with automated lines, ensuring stable output for coal mine rubber-sheathed special flexible power cables. We enjoy clear price advantages from large-scale raw material procurement, lean manufacturing and efficient supply chain control. Without compromising mining safety standards and product performance, we offer highly competitive factory-direct prices. Our reliable quality and cost-effective solutions deliver superior long-term value for global mining customers.

6.Environmental philosophy of Taitong Cable

Taitong Cable upholds a green production philosophy, using low-smoke, halogen-free eco-friendly materials and cutting harmful additives. Our energy-efficient lines and waste recycling systems cut emissions and resource use. Taitong’s eco-friendly rubber-sheathed mining cables reduce underground environmental risks and meet international green standards, supporting sustainable and low-carbon mining operations globally.
