Why 1kV LV Power Cables Are Essential for Grids

Summary: In secondary power distribution networks, commercial complexes, and localized industrial zones, low-voltage lines form the final, most critical link to end-users. Low-voltage power distribution cables rated at 1kV and below serve as the primary conduits for these networks. This article breaks down the inner multi-core mechanics, material advantages, and safety architectures of standard 0.6/1kV armored aluminum cables, helping project managers maximize their power grid efficiency.

Table of Contents

Introduction

Structural Engineering of 0.6/1kV 5-Core Power Cables

The Strategic Cost Benefit of Aluminum in Low-Voltage Distribution

The Necessity of 5-Core Systems in Modern Power Tenders

Factory-Direct Compliance and Project Sourcing

Introduction

The transition from medium voltage substations to localized consumer grids requires incredibly stable secondary distribution cables. Operating at 1kV and below, these circuits must continuously manage fluctuating load profiles, single-phase unbalances, and external physical ground disturbances. To handle these demands without inflating municipal building budgets, electrical consultants rely extensively on armored aluminum cables.

Engineered precisely for long-term stability, Taitong Cable manufactures premium-grade 0.6/1kV low-voltage power distribution cables. Utilizing specialized compacting and multi-core twisting technologies, our lines offer an ideal blend of mechanical resilience and electrical dependability for global utility developments.

Structural Engineering of 0.6/1kV 5-Core Power Cables

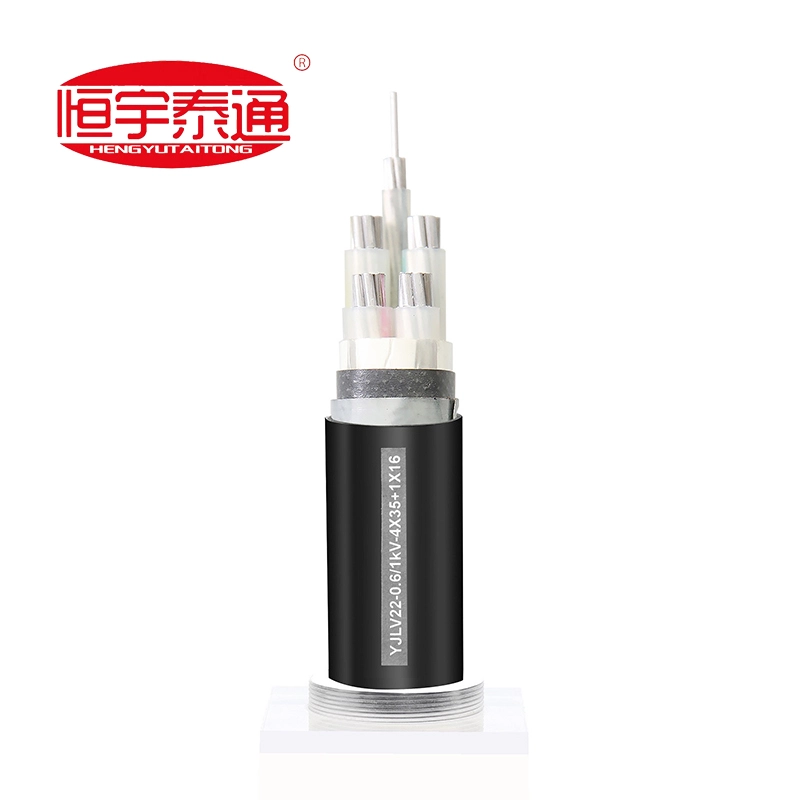

Looking at standard configurations like the YJLV22-0.6/1kV, the cable cross-section reveals an advanced multi-layered protective system built for direct burial or duct installation:

Compacted Aluminum Conductors: Shaped and stranded from high-purity aluminum to maximize electrical cross-sections while eliminating air gaps within the core.

Cross-linked Polyethylene (XLPE) Insulation: Provides high dielectric insulation and allows the core conductors to operate safely at continuous temperatures up to 90°C.

Inner Bedding and Fillers: Non-hygroscopic polypropylene materials that keep the multi-core structure perfectly round and structurally balanced.

Double Steel Tape Armour (DSTA): Overlapping metallic tapes wrapped tightly under the outer jacket, providing heavy-duty resistance against underground crushing loads and excavation shovel impacts.

Heavy-Duty PVC Outer Jacket: Provides an advanced environmental tracking layer that resists soil acids, moisture infiltration, and abrasive wear.

The Strategic Cost Benefit of Aluminum in Low-Voltage Distribution

For extensive regional secondary grids, utilizing copper cores can cause procurement budgets to skyrocket. Modern low-voltage systems choose compacted aluminum conductors for two decisive reasons:

1.Dramatic Budget Savings: Aluminum core procurement inherently cuts material expenses by up to 40% compared to highly volatile copper alternatives, allowing contractors to expand grid footprints within strict financial limits.

2.Simplified Handling on Site: The lightweight nature of aluminum cores makes these multi-core cables easier to drag through winding underground conduits or lay in deep trenches, minimizing crew fatigue and installation hours.

The Necessity of 5-Core Systems in Modern Power Tenders

International building regulations and power grid specifications frequently mandate 5-core cable architectures (e.g., 3 Phases + 1 Neutral Core + 1 Dedicated Grounding Core) over older 4-core designs:

Superior Harmonic Handling: Modern commercial zones are packed with non-linear loads that push high harmonic currents back through the neutral line. Our dedicated neutral core configurations prevent thermal overloads.

Flawless Fault Grounding: The integrated, separate grounding core (PE) provides an immediate, low-impedance path to earth. This ensures that circuit breakers trip instantly during a fault, protecting downstream equipment and personnel from hazardous touch-voltages.

Factory-Direct Compliance and Project Sourcing

Secondary power grid expansion projects leave zero margin for installation errors or manufacturing flaws. Low-voltage infrastructures demand exact technical alignment with IEC 60502-1 international standard protocols.

At Taitong Cable, we enforce a strict 100% factory-direct customized production model. We do not clear out aging, generic warehouse stock. Instead, every batch of low-voltage distribution cables is custom-extruded to match your exact project bills of quantities (BOQ), ensuring specified cross-sectional steps (e.g., 4✖35 + 1✖16mm2), specialized jacket tracking colors, and precise compliance with local electrical ordinances.

Contact our low-voltage engineering division today to secure authorized type-test catalogs, cross-sectional design blueprints, or to receive an express, contract-ready factory pricing matrix for your upcoming project tender!
