PVC insulated building wires for fixed installations

Product Introduction

Consisting of a copper conductor and PVC insulation, the PVC insulated building wires for fixed installations provide stable electrical conductivity, reliable insulation and flexible for easy installation to keep safety. Featuring high insulation resistance, good heat resistance, flame retardant properties, and long service life, they designed for fixed installation in residential and commercial buildings such as lighting circuits, power sockets, internal wiring, and fixed distribution lines for homes, offices, factories and public buildings.

2.Product Parameter (Specification)

Models:

2.1 PVC Insulated Rigid Copper Conductor Cable
2.2 PVC Insulated Rigid Copper Conductor Cable, 90°C Type
2.3 PVC Insulated Flexible Copper Conductor Cable
2.4 PVC Insulated Flexible Copper Conductor Cord
2.5 Heat-Resistant PVC Insulated Flexible Copper
2.6 PVC Insulated Rigid Aluminum Conductor Cable

3.Product Feature And Application of PVC insulated building wires for fixed installations

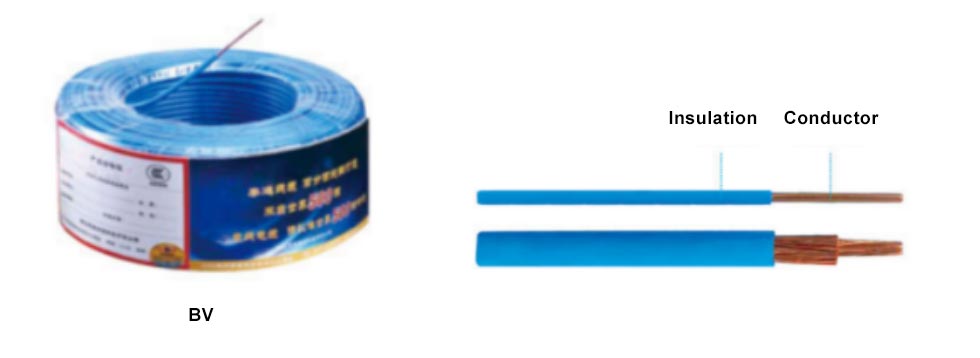

3.1 PVC Insulated Rigid Copper Conductor Cable

Main Performance:

> Solid copper conductor (single solid core)
>PVC insulation
>Rated voltage: 450/750V
>Max operating temperature: 70°C
>Good electrical insulation and mechanical strength
>Suitable for fixed installation only

Application Scenarios:

>Fixed wiring in residential and commercial buildings
>Indoor power distribution circuits
>Concealed wiring in walls, conduits, and trunking

3.2PVC Insulated Rigid Copper Conductor Cable, 90°C Type

Main Performance

>Solid copper conductor
>Heat-resistant PVC insulation
>Rated voltage: 450/750V
>Max operating temperature: 90°C
>Better heat resistance than standard BV
>Suitable for fixed installation

Application Scenarios

>High-temperature indoor environments
>Lighting and power circuits with higher heat generation
>Fixed wiring in industrial distribution boxes

3.3 PVC Insulated Flexible Copper Conductor Cable

Main Performance:

>Stranded copper conductor (flexible)
>PVC insulation
>Rated voltage: 450/750V
>Max operating temperature: 70°C
>Good flexibility, easy to bend and install
>Better resistance to vibration than BV

Application Scenarios:

Fixed wiring requiring frequent bending
Distribution cabinets, control boxes, panel wiring
Indoor wiring with complex routing

3.4 PVC Insulated Flexible Copper Conductor Cord

Main Performance:

>Fine-stranded flexible copper conductor
>PVC insulation
>Rated voltage: 450/750V
>Max operating temperature: 70°C
>High flexibility, small bending radius
>For internal wiring and connection

Application Scenarios:

>Internal wiring of electrical equipment, instruments
>Control circuits and connection leads
>Small power appliances and household equipment

3.5 Heat-Resistant PVC Insulated Flexible Copper

Main Performance:

>Fine-stranded flexible copper conductor
>Heat-resistant PVC insulation
>Rated voltage: 450/750V
>Max operating temperature: 90°C
>High flexibility plus improved heat resistance

Application Scenarios

>Internal wiring of electrical equipment in high-temperature environments
>Control and connection circuits with elevated temperature
>Appliances and devices with continuous heating

3.6 PVC Insulated Rigid Aluminum Conductor Cable

Main Performance:

>Solid aluminum conductor
>PVC insulation
>Rated voltage: 450/750V
>Max operating temperature: 70°C
>Light weight, lower cost than copper cables
>Suitable for fixed, non-flexing installation

Application Scenarios:

>Long-distance fixed power distribution lines
>Outdoor and indoor main power circuits
>Construction and industrial power supply where cost efficiency is priority

4.Taitong PVC Fixed Wiring Cable Advantages

Brand Strength: Established reputation as a large-scale cable manufacturer, full compliance with GB/T 5023, JB/T 8734, IEC standards, trusted for civil and industrial fixed wiring.
Price Advantage: Optimized production and supply chain cut costs; competitive pricing without quality compromise, ideal for bulk projects.
Quality Superiority: Rigorous QC from raw materials to delivery; pure copper/aluminum conductors, premium PVC insulation, stable 450/750V performance.
Global Supply: Well-established logistics; prompt delivery to worldwide markets, supporting diverse international projects.
Value Proposition: Durable, easy installation, low maintenance, high cost - efficiency; long - term reliability for residential, commercial & industrial use.

In addition to PVC insulated building wires for fixed installations, we also have a variety of other types and specifications of cables. Please feel free to come and inquire.
