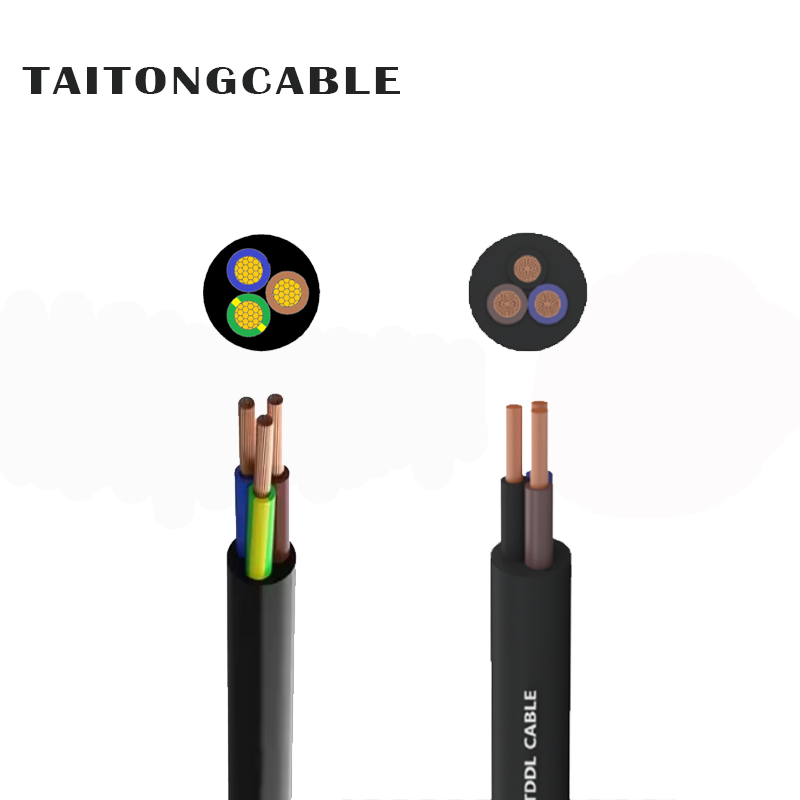

60245 IEC 57 Ordinary Duty Flexible Rubber Sheathed Cord

60245 IEC 57 Ordinary duty flexible rubber sheathed cord (YZW) is a 300/500V flexible rubber cord, equivalent to H05RN-F. Built with Class 5 stranded copper conductor, IE4 EPR insulation and SE4 oil-resistant rubber sheath, 60245 IEC 57 rubber cable delivers good oil resistance, flexibility and mechanical performance. Compliant with IEC 60245-4, 245 IEC 57 suits portable power tools, household appliances, extension leads and temporary wiring in dry, damp or wet indoor environments. Available in 2/3/4/5 core options with custom sizes and colours. Taitong Cable supplies this IEC-certified  rubber cord with factory-direct pricing, full test reports and reliable technical support for bulk buyers, distributors and custom orders worldwide.

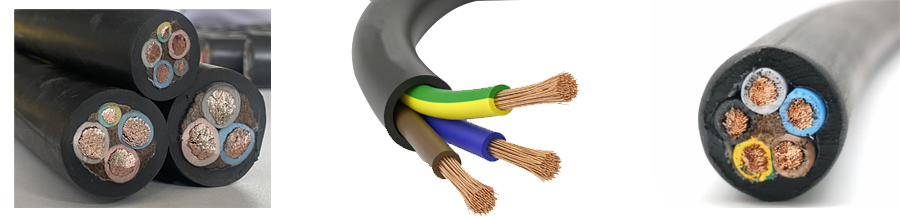

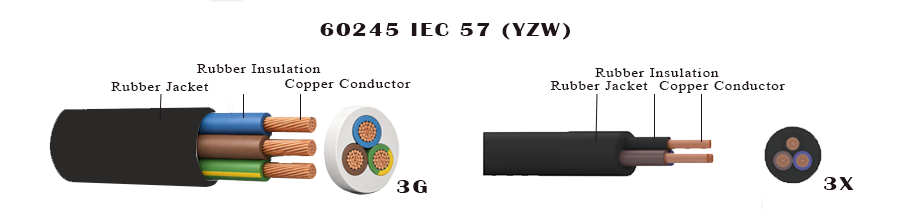

Construction of 60245 IEC 57 rubber cable

---

Conductor: Class 5 flexible stranded copper conductor (The wires can be plain or tinned.)

Separator (optional): A separator of suitable material can be applied around each conductor.

Insulation: IE4 EPR rubber compound

Sheath: SE4 oil-resistant rubber compound

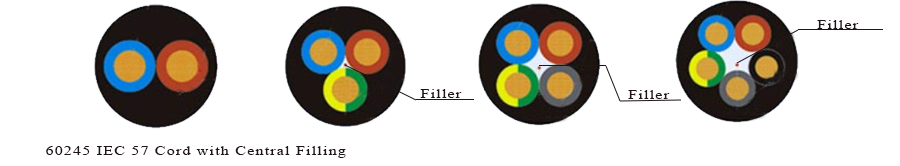

Filler(optional): A centre filler can be used.

Core options: 2 core, 3 core, 4 core, 5 core

Conductor cross sectional area / CSA: 0.75 ~ 2.5 mm², other cross-sections available upon request.

Core colour identification complies with IEC 60445

---

2G: Green/Yellow, Brown

2×: Brown, Blue

3G: Green/Yellow, Brown, Black, Grey

3×: Brown, Black, Grey

4G: Green/Yellow, Brown, Black, Grey, Blue

4×: Brown, Black, Grey, Blue

Note: Custom colour scheme available upon request.

G = with green/yellow PE earth conductor

X = no earth conductor

Applications of 60245 IEC 57 Flexible Rubber Cable

---

This oil-resistant flexible rubber cord 60245 IEC 57 is designed for dry, damp and wet indoor conditions, with limited outdoor use. It serves as power connection for handheld power tools, home appliances, extension leads and temporary site wiring. Widely adopted in small engineering projects, workshop and residential power supply. Ideal for contractors, distributors and national project buyers from Africa, the Middle East, Southeast Asia and other global regions.

1, Power connection for handheld electric power tools and testing instruments

2, Movable power cords for household appliances and office equipment

3, Indoor extension leads and temporary wiring for construction sites

4, Suitable for dry, damp or wet indoor environments, limited outdoor deployment

5, Served for contractors, bulk distributors and national projects across Africa, Middle East, Southeast Asia and worldwide

Electrical Parameters of 60245 IEC 57

---

Rated voltage: 300/500 V

Test voltage: 2000 V, 5 min

Conductor resistance: comply with IEC 60228 Class 5

Frequency: 50 / 60 Hz

Temperature and Environmental Ratings:

Maximum conductor temperature in normal use: 60 °C.

Minimum permissible ambient temperature: -35°C (moving/fixed variants down to -25°C to -35°C)

Properties: Oil-resistant (per EN 60811-404), flame-retardant (IEC 60332-1-2), and UV/weather-resistant.

Bending Radius:

For cable diameter (D) ≤ 25 mm: Radius ≥ 4× D

For cable diameter (D) > 25 mm: Radius ≥ 6× D

What cables are usually compared with 60245 IEC 57?

---

Q1: What is the difference between 60245 IEC 53 and 60245 IEC 57 cables?

A1: 60245 IEC 53 ordinary duty flexible rubber sheathed cord is rated 300/500V with standard rubber sheath, without oil resistance. This cable is suitable for dry, damp indoor environments for light-duty power supply.

While 60245 IEC 57 ordinary duty flexible rubber sheathed cord is rated 300/500V, fitted with SE4 oil-resistant rubber sheath. This cable offers excellent oil resistance, ideal for equipment with oil components.

Q2: What is the difference between 60245 IEC 57 and 60245 IEC 66 cables?

A2: 60245 IEC 57 is 300/500V ordinary duty rubber sheathed cord with SE4 oil-resistant sheath, for portable tools, household appliances and temporary light wiring.

While 60245 IEC 66 heavy duty rubber sheathed cord is rated 450/750V. This cable has thicker rubber sheath, stronger mechanical abrasion resistance, designed for heavy-load mobile applications. It comes at a higher cost.

Q3: What is the difference between 60245 IEC 57 and H05VV-F cables?

A3: 60245 IEC 57 is oil-resistant rubber flexible cord. This cable keeps good flexibility under low temperature, works well in damp or wet locations.

While H05VV-F is PVC insulated and PVC sheathed flexible cord. This cable is low cost, but poor in oil resistance and low-temperature flexibility, not recommended for oily or cold conditions.

Q4: What is the difference between 60245 IEC 57 and H05RN-F cables?

A4: 60245 IEC 57 follows IEC 60245-4 standard.

H05RN-F is European harmonized rubber flexible cord. Both 245 IEC 57 and H05RN-F share identical construction, voltage rating 300/500V, oil-resistant SE4 sheath and colour coding rules, they can be mutually replaced for most projects.
