60245 IEC 81 Flexible Rubber Sheathed Welding Cables

60245 IEC 81 (YH) flexible rubber sheathed welding cables, supplied by Taitong Cable, a professional Chinese cable manufacturer, comply with IEC 60245-6. This single-core welding electrode cable adopts Class 5 finely stranded bare copper conductor and SE3 natural rubber integrated covering. It features good flexibility, max continuous working temperature 65°C, not resistant to mineral oil. ISO certified, CE certificates. Suitable for ordinary indoor manual arc welding, favored by contractors and engineering clients from China and Southeast Asia for general welding procurement projects.

Applications of 60245 IEC 81 (YH)

---

For transmitting high currents from electric welding machine to welding torch. Used in shipyards, oily workshops, outdoor construction arc welding works. Such as arc welding systems, industrial and workshop use, automotive and shipbuilding, building and construction sites, automotive battery leads.

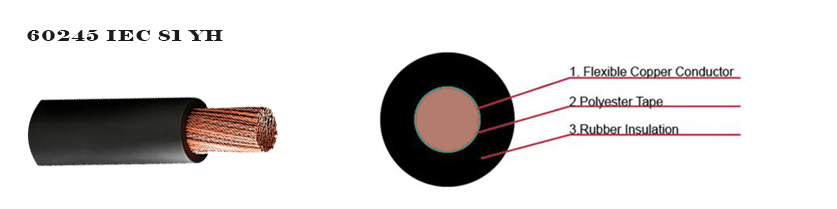

Construction of 245 IEC 81 Rubber Welding Electrode Cable

---

Conductor: single-core plain or tinned copper, Class 5 (Class 6 on custom request) to GB/T 3956 / IEC 60228.

Seprator: Synthetic film (PET / Polyester tape) or paper.

Covering: SE4 chloroprene elastomer compound, single extruded layer acting as insulation and sheath, oil-resistant.

Sheath colour: Black as standard, custom colours available upon request, such as red, yellow or blue, etc.

Standard version (to IEC 60245-6): Single integrated rubber covering (works as insulation and sheath)

Custom modified version: Two separate rubber coverings (insulation layer + sheath layer, non-standard)

Reference Standard

---

IEC 60245-6, GB/T 5013.6

Test methods for electric cables: IEC 63294,IEC 60811,

IEC 60332-1-2: Flame test method

IEC 60245-1: General requirements

Guide to use for cables: IEC 62440

Parameters

---

Rated voltage: 450/750 V

Factory dielectric test voltage: 1000 V a.c., 5 min

Conductor resistance: comply with IEC 60228

Max continuous working temperature: 65 °C

Ambient service temperature: -20°C ~ +45°C

Cable installation temperature: ≥ 0°C (Preheating required when ambient temperature below 0°C)

Minimum bending radius: 6 × cable outer diameter

Nominal cross-sectional area of conductor: 16~95 mm²

General data for types 60245 IEC 81

---

Your Reliable Manufacturer of 60245 IEC 81 YH Rubber Insulated Welding Cables

---

Taitong Cable is your reliable cable manufacturer for high-quality 60245 IEC 81 YH Rubber Insulated Welding Cables. Founded in 2002, we are an ISO certified premium Chinse supplier with rich experience in national key projects. As a professional cable factory, Taitong Cable produces GB standard YH, YHF and CE marked EN 50525-2-81 H01N2-D / H01N2-E welding cables to meet different project requirements. Our 60245 IEC 81 YH cable adopts premium SE3 natural rubber, highly flexible for ordinary indoor manual arc welding projects, suitable for contractors, engineering buyers from China, Southeast Asia and other global regions. We support custom cross-sections, provide samples, complete test certificates and type test reports. Equipped with full production and inspection equipment, we guarantee stable quality, competitive factory price and technical support. International clients are warmly welcomed for factory audit and site visit. Contact Taitong Cable now to get quotation for your welding cable procurement project. Taitong Cable is your best choice.

Comparison Table: 60245 IEC 81/82 YH/YHF vs EN 50525-2-81 H01N2-D / H01N2-E

---
