60245 IEC 82 Extra-Flexible Rubber Sheathed Welding Cables

60245 IEC 82 extra-flexible rubber sheathed welding cable, supplied by Taitong Cable - professinal Chinese cable manufacturer, complies with IEC 60245-6 and equivalent GB/T 5013.6. This single-core arc welding electrode cable uses extra-fine Class 6 bare copper conductor and SE4 chloroprene elastomer integrated covering. It provides excellent oil, ozone and ageing resistance for heavy-duty welding jobs. ISO certified, CE certificates and type test reports can be provided upon request. Ideal for contractors and engineering buyers sourcing welding machine cables, rubber welding wires for outdoor, shipyard and oily industrial welding projects across Southeast Asia and global regions requiring rubber-sheathed welding cables to IEC 60245 standard.

Applications

---

For transmitting high currents from electric welding machine to welding torch. Widely applied in shipyards, oily workshops and outdoor construction manual arc welding works.

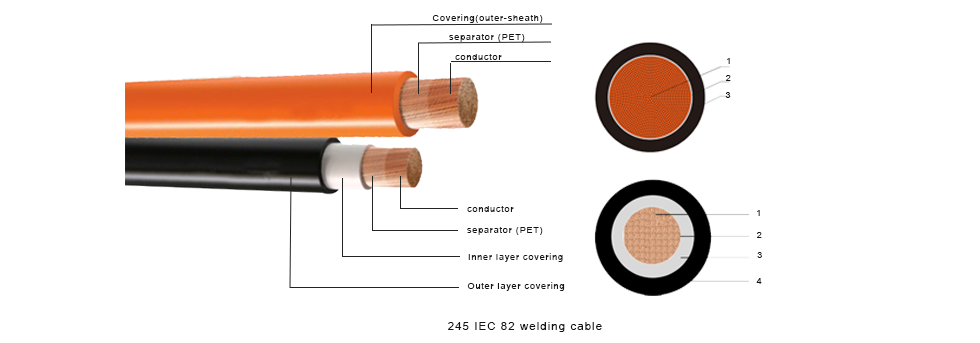

Construction

---

Conductor: Single core bare copper, Class 6 to IEC 60228.

Separator: PET / Polyester tape or paper.

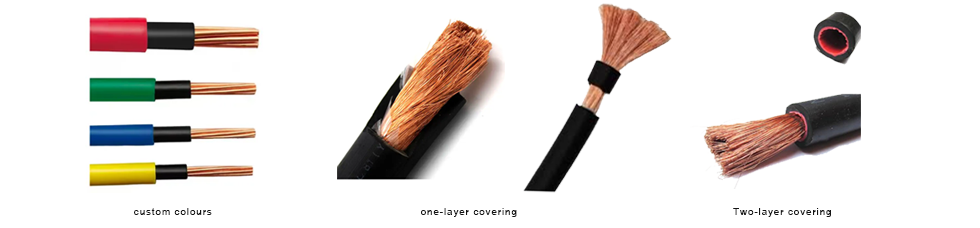

Covering: SE4 chloroprene elastomer compound, single extruded layer acting as insulation and sheath, oil-resistant. (one-layer or two layer covering per your request are optional)

Sheath colour: Black as standard, custom colours available upon request.

Parameters

---

Rated voltage: No specific voltage rating stated in the standard (up to and including 450/750V).

Factory dielectric test voltage: 1000 V a.c., 5 min

Maximum continuous operating temperature of conductor: 65 °C

Ambient service temperature: -15°C ~ +65°C

Cable installation temperature: ≥ -15°C (Generally defined as ≥ 0 °C)

Premium Manufacturer of 60245 IEC 82 YHF Welding Cables - Taitong Cable

---

Taitong Cable is your reliable manufacturer of 245 IEC 82 rubber sheathed welding cable, arc welding leads complying with IEC 60245-6 (equivalent Chinese standard: GB/T 5013.6, corresponding product model: YHF). Founded in 2002, we are an ISO certified premium wire and cable supplier in China with decades of production experience, serving national key projects and welcoming long-term cooperation with global bulk buyers, EPC contractors and wholesalers.

We produce IEC 60245-6 standard welding cables and CE marked EN 50525-2-81/ EN 50525-2-82, H01N2-D / H01N2-E heavy duty rubber welding cables to satisfy diverse project specifications. This 245 IEC 82 cable adopts premium SE4 chloroprene elastomer with outstanding oil, ozone and weather resistance (one-layer or two-layer covering optional), perfectly suited for shipyard, steel fabrication and oily industrial welding procurement projects worldwide.

Taitong Cable supports custom cross-sections and provides welding cable samples, complete test certificates and type test reports. Equipped with full production and inspection facilities plus professional R&D & technical team, we guarantee consistent stable high-quality and competitive factory direct prices. International clients from Europe, Africa, Southeast Asia and Middle East are warmly welcomed for factory audits and site visits at Taitong Cable.

FAQ

---

Q: What is the difference between 60245 IEC 81 and 60245 IEC 82?

A: 60245 IEC 81 uses SE3 natural rubber, non-oil resistant for ordinary indoor welding. 60245 IEC 82 uses oil-resistant SE4 chloroprene elastomer for oily workshops, shipyards and outdoor sites.

Q: What is the difference between 60245 IEC 82 and H01N2-D?

A: 60245 IEC 82 follows GB/T5013.6 / IEC 60245-6 with max 65°C conductor temperature. H01N2-D complies with EN50525-2-81 (VDE 0285-525-2-81), EM5 cross-linked elastomer sheath rated at 85°C, designed for EU projects requiring CE / HAR / VDE certification.

Q: Can 60245 IEC 82 replace H01N2-D for European projects?

A: No. This cable is GB/IEC standard cable and cannot satisfy EN 50525 requirements. H01N2-D must be used for EU projects with CE, HAR or VDE requirements。
