Armoured Low Voltage XLPE Insulated LSZH Sheathed Power Cables with Copper or Aluminium Conductor

Armoured low voltage XLPE insulated LSZH sheathed power cables with copper or aluminium conductor, supplied by TaiTong Cable, a professional Chinese cable manufacturer. This ;SZH electric cable comes in single-core and multi-core (2 to 5-core) versions with aluminium wire (AWA) armour for single-core and steel wire (SWA) armour for multi-core. High grade XLPE insulation ensures reliable electrical and thermal performance, while LSZH bedding and outer sheath produce low smoke and zero halogen under fire conditions for enclosed public spaces. The cable is manufactured to BS, VDE, IEC standards and holds ISO, CCC certifications. The LSZH cable fits direct burial, tunnels, industrial plants and commercial buildings. Overseas EPC contractors, electrical wholesalers and power utility clients select this cable for infrastructure power distribution. TaiTong Cable offers custom sizes, factory-direct pricing and samples for testing.

Applications

---

This 0.6/1kV armoured LSZH XLPE power cable serves fixed power distribution for indoor and outdoor installations, suitable for direct burial underground, cable trenches, tunnels and pipe ducts. With low smoke zero halogen property, the cable is widely adopted in crowded public buildings, metro stations, hospitals, schools and commercial complexes, also fits industrial workshops, power substations and infrastructure EPC projects.

Single-core variants are preferred for main high-current feeders, while multi-core types (2-core to 5-core) work well for branch power supply. The cable meets BS, VDE and IEC requirements, delivering safe power transmission in places demanding fire safety and low toxic emission. TaiTong Cable provides custom cable specifications and samples for client project qualification.

Electrical Parameters

---

Rated voltage: 0.6/1kV

Test voltage: 3.5kV for 5 min

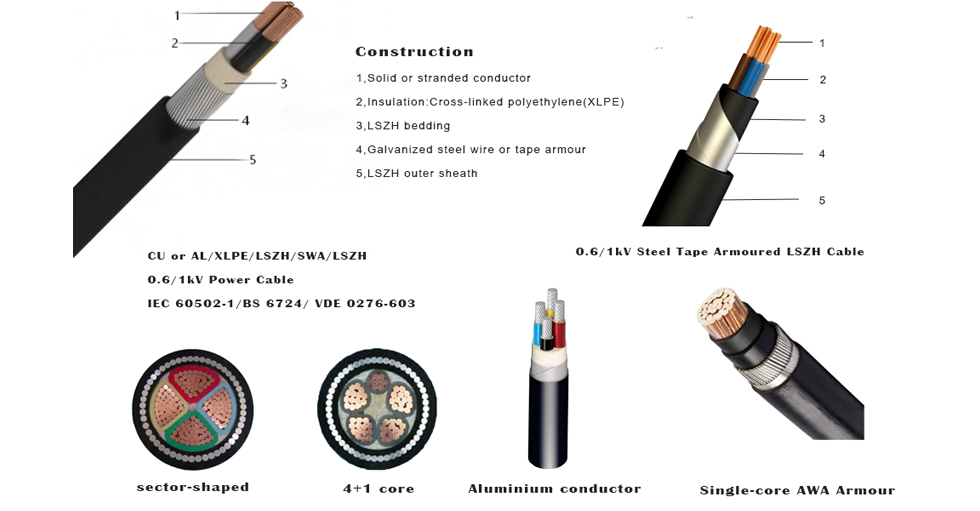

Conductor material: Copper or Aluminium, class 1 solid / class 2 stranded conductor

Insulation: cross-linked polyethylene (XLPE)

Bedding:  low smoke zero halogen (LSZH)

Armour: steel wire armour(SWA)/Aluminium wire armour (AWA) /Steel tape armour (STA)

Sheath: low smoke zero halogen compound (LSZH)

Maximum conductor short-circuit temperature: 250°C

Long-term operating temperature: 90°C

Flame performance: Flame retardant, low smoke emission, zero halogen emission

Compliant with IEC 60502-1, BS 6724, VDE standards 0276-603.

TaiTong Cable: Reliable Partner for 0.6/1kV Armoured LSZH XLPE Power Cable

---

TaiTong Cable is a reliable professional Chinese cable manufacturer equipped with modern standardized production facilities, full production lines（up to 35kV)）and advanced testing apparatus. The company maintains skilled R&D, technical and experienced overseas sales teams to deliver one-stop cable customization, manufacturing and export solutions for worldwide customers. All manufacturing procedures operate under rigorous quality systems backed by full ISO,CCC and relevant industry certifications. On-site factory audits and virtual video tours are available, allowing overseas buyers to directly check production capability, product quality and delivery schedules. Supported by stable output, strict QC and flexible order terms, TaiTong Cable serves global EPC contractors, electrical distributors and power infrastructure clients, earning consistent trust through dependable quality and responsive after-sales support.

As a mainstream export low-voltage fire-safe cable, Armoured low voltage XLPE insulated LSZH sheathed power cables with Copper or Aluminium conductor ranks among TaiTong Cable’s flagship offerings. This popular and high-quality LSZH armoured power cable is frequently searched by international buyers using terms such as low voltage armoured cable, XLPE insulated LSZH cable, copper aluminium conductor power cable and fire retardant underground power cable. Built to BS, VDE and IEC standards, the low voltage LSZH cable performs reliably across tough engineering environments. TaiTong Cable offers free test samples, flexible OEM & ODM, factory-direct pricing and expedited global shipment to satisfy bulk procurement and project requirements for overseas engineering and trade clients.
