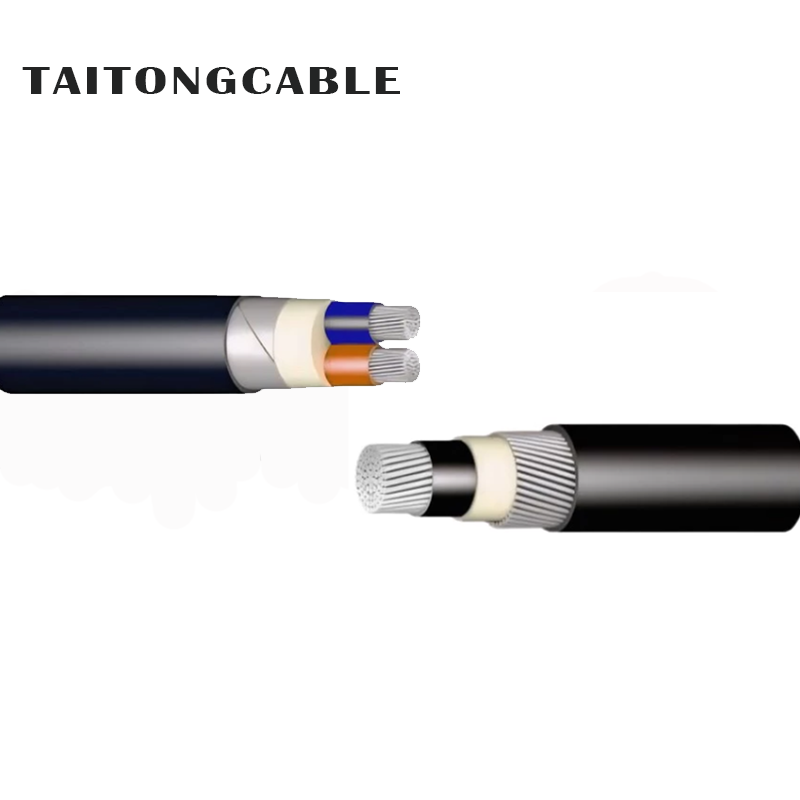

Custom Low Voltage Armoured Aluminium Conductor XLPE Insulated PE Sheathed Power Cables

Taitong Cable supplies cables up to 35kV including custom low voltage armoured aluminium conductor XLPE insulated PE sheathed power cables rated at 0.6/1kV, manufactured to IEC 60502-1 with full international certifications.

Single-core cable features solid or compact stranded aluminium conductor, XLPE insulation and UV-resistant PE sheath with non-magnetic aluminium wire armour(AWA). Multi-core options (2–core to 5-core) add filler, binding tape (optional) and steel armour after core laying-up. XLPE insulation ensures 90°C continuous operating temperature and stable electrical performance. Steel armour provides strong mechanical protection; PE sheath resists moisture, chemicals and outdoor weathering.

Custom cross-sections, core colour codes and cut lengths are available. This armoured cable fits underground, duct and indoor installation for municipal, industrial and renewable power distribution. Ideal for global EPC contractors, power utilities, project developers and Industrial building. Taitong Cable offers factory direct supply, test reports and technical support for bulk overseas orders.

Applications of Custom Low Voltage Armoured Aluminium Conductor XLPE Insulated PE Sheathed Power Cables Rated for 0.6/1kV

---

This 0.6/1kV armoured aluminium power cable is suitable for underground, duct and outdoor installations with mechanical protection needs. Widely used in municipal, industrial, building and renewable power distribution projects for global EPC buyers.

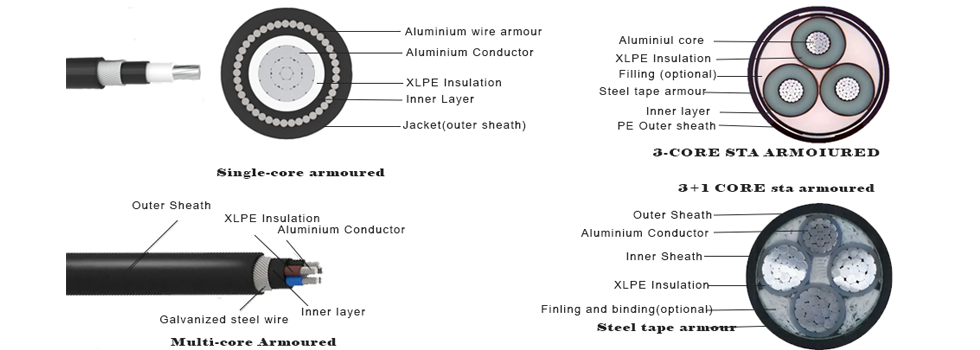

Construction

---

1,Conductor: Class 1 solid or Class 2 compacted stranded annealed aluminium conductor, complying with IEC 60228

2,Insulation: Cross-linked Polyethylene(XLPE)

3,Filler and binding layer: for 2 tp 5-core optional

4,Bedding: PVC compound or other materials as required

5,Armour: SWA galvanized steel wire armour or Steel Tape Armour (STA) for 2 to 5-core, Aluminium Wire Armour (AWA) for single-core.

6,Outer Sheath: Extruded black Polyethylene (PE)

Electrical Parameters

---

Company Strength and Procurement Advantage: Why select Taitong Cables as your trusted co-operating partner?

---

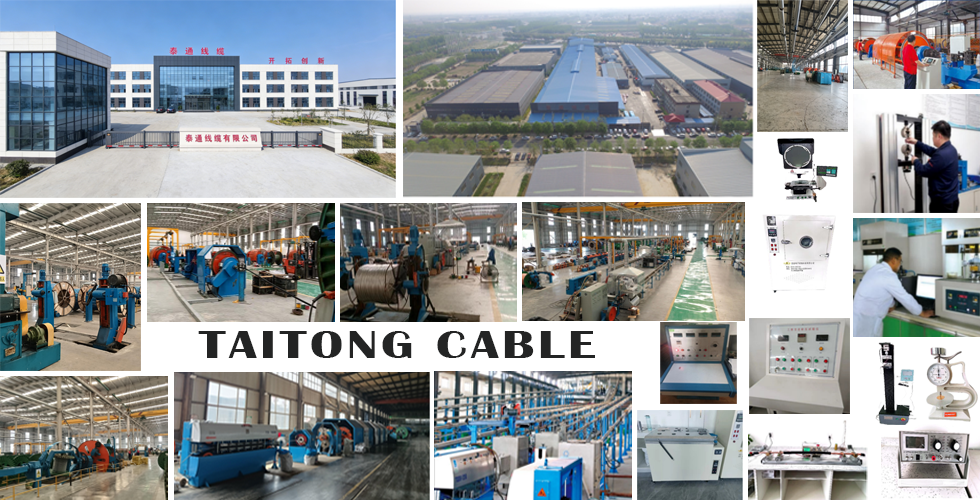

As a premium-grade cable producer in China, Taitong Cable boasts nationwide industrial layout with five standardized manufacturing facilities across Hejian, Zhengzhou and Shenyang, complemented by over 30 offline service outlets. Equipped with in-house research centers and professional testing facilities, the brand owns 38 innovative technical patents and holds full ISO, CE and IEC official certifications. Adhering to strict international manufacturing norms, Taitong Cable develops and supplies complete cable series up to 35kV, including the featured product: custom low voltage armoured aluminium conductor XLPE insulated PE sheathed power cables (AL/XLPE/AWA/PE, AL/XLPE/STA/PE, AL/XLPE/SWA/PE, 0.6/1kV).

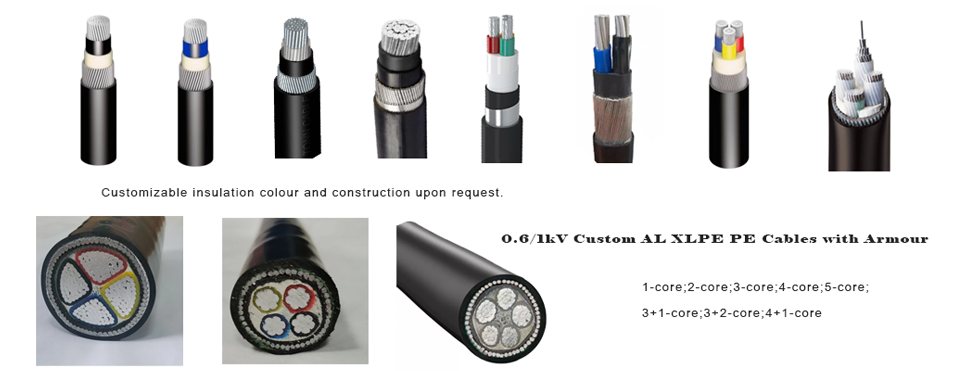

Taitong Cable offers flexible personalized customization for single-core and multi-core (2-core to 5-core) armoured cables, covering bespoke conductor sections, core configurations, standard color coding and tailored cable lengths. The brand provides pre-delivery sample verification, authoritative factory test documents and dedicated engineering technical support for international clients. Backed by decades of cable production experience for large projects, sufficient inventory reserves and direct ex-factory pricing policies, Taitong Cable guarantees stable product consistency, shortened delivery cycles and optimized procurement costs. Perfect for large-volume tenders, urban infrastructure, residential building works, industrial power distribution and new energy engineering, Taitong Cable delivers integrated cable supply solutions for global purchasers, EPC enterprises and overseas construction projects.
