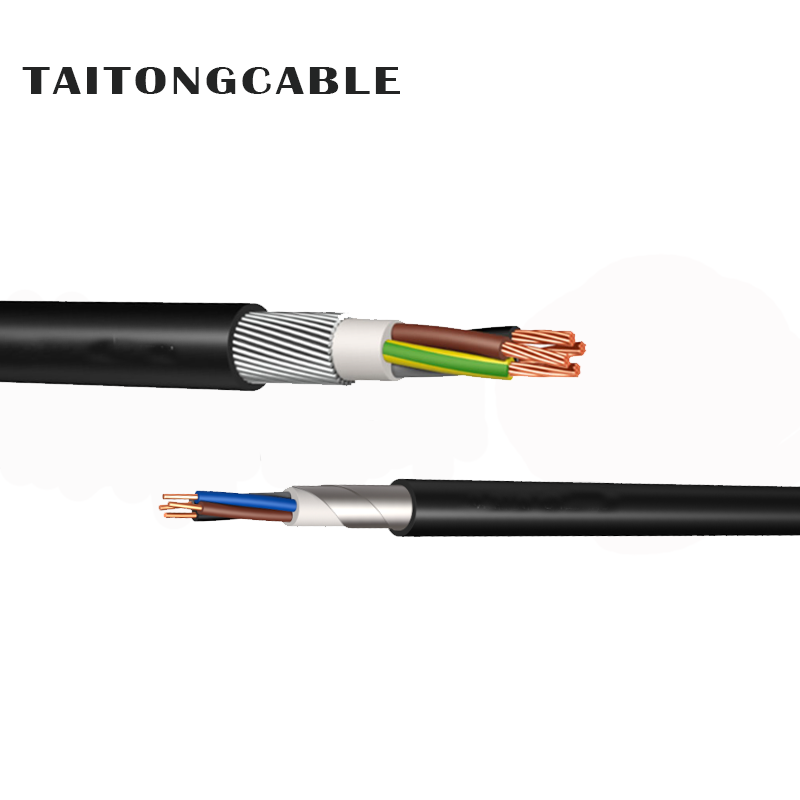

Custom Low Voltage Armoured Copper Conductor XLPE Insulated PE Sheathed Power Cables

Manufactured in accordance with IEC 60502-1 and IEC 60228, the customized low voltage armoured copper conductor XLPE insulated PE sheathed power cables rated at 0.6/1kV are built with compacted copper conductor, heat-resistant XLPE insulation and corrosion-resistant PE outer-sheath. Single-core versions of CU/XLPE/PVC/AWA/PE or cables adopt aluminium-wire armour (AWA) to avoid eddy-current loss for AC circuits, while multi-core cables are available with steel-wire armour (SWA)-CU/XLPE/PVC/ SWA/PE or steel-tape armour (STA)-CU/XLPE/PVC/STA/PE for strong anti-crushing protection. With stable electrical performance and excellent underground adaptability, these armoured cables are widely used for direct-buried power-distribution projects.

Backed by complete ISO, CE certifications and full-set testing reports, Taitong Cable delivers reliable custom-armoured cable solutions for global purchasers. We offer flexible customization on armour types, cable dimensions and sheath colours, support large-volume bulk procurement, sample testing and on-site factory inspection. Our factory-direct-supply service provides cost-effective underground power cables for international contractors, local agents and large-scale infrastructure projects.

Applications

---

Single‑core AWA armoured cables rated at 0.6/1kV avoid eddy‑current heating for AC circuits, for underground duct laying, substation wiring and single‑circuit industrial power supply.

Multi‑core SWA cables rated at 0.6/1kV deliver heavy‑duty mechanical protection for direct‑buried infrastructure routes; STA multi‑core cables suit cable‑trench, municipal, commercial and factory multi‑circuit power‑distribution projects. All XLPE‑PE armoured cables work for outdoor, underground and protected indoor low‑voltage power‑transmission.

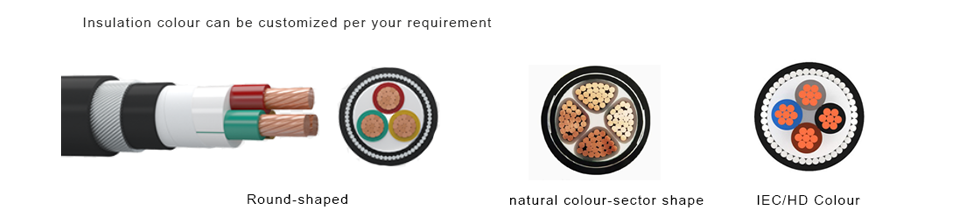

Construction

---

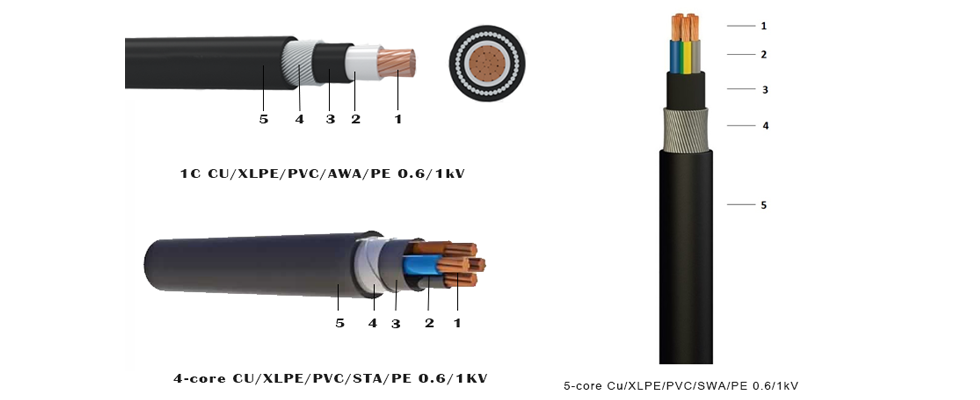

→ 0.6/1kV Single-core Low-voltage AWA armoured Copper XLPE PE Power Cables

1, Conductor: Class 1 solid or Class 2 stranded copper ,IEC 60228

2, Insulation: XLPE （90℃）

3,Inner Sheath: PVC

4, Outer sheath: PE

Size: 1.5-400mm²

Electrical Parameters

Rated Voltage: 0.6/1(1.2)kV

Maximum conductor temperature in normal operation: 90℃

Short Circuit Temperature-(max 5-second fault duration) 250℃

Min. Bending Radius (Installation): 15D

Min. Bending Radius Near Junction Boxes and Terminations:12D (D=outer diameter)

→ 0.6/1kV Multi-core Low-voltage SWA /STA armoured Copper XLPE PE Power Cables

1, Conductor: Class 1 solid or Class 2 stranded copper ,IEC 60228

2, Insulation: XLPE（90℃）

3,Filling and binding tape: optional

4,Inner Sheath: PVC

5, Galvanized steel wire armour or steel tape armour

6, Outer sheath: PE

Size: 2.5-400mm²

Electrical Parameters

Rated Voltage (U0/ U(Um)): 0.6/1(1.2)kV-Low voltage

Maximum conductor temperature in normal operation: 90℃

Short Circuit Temperature-(max 5-second fault duration) 250℃

Min. Bending Radius (Installation): 12D

Min. Bending Radius Near Junction Boxes and Terminations:10D (D=outer diameter)

Factory Strength and Customer-Oriented Advantages for Customized Low Voltage Armoured Copper XLPE-PE Power Cables

---

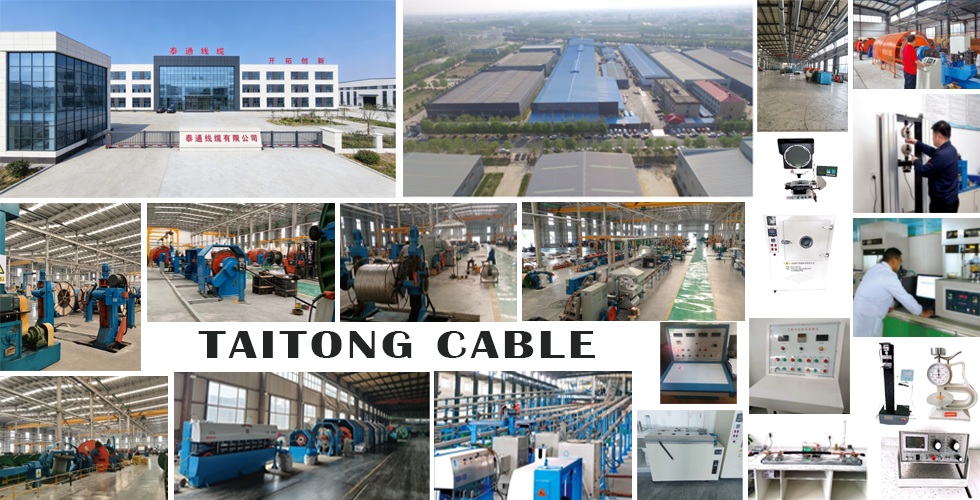

With decades of professional manufacturing experience in the various of cable industry, Taitong Cable is a large-scale certified wire and cable factory based in China integrating R&D, production and global sales. Equipped with modern standardized production workshops and full sets of advanced testing equipment, our professional technical and quality inspection teams strictly control every production process. Taitong Cable holds complete ISO management system certifications, CE qualifications and fully comply with IEC international standards, accumulating rich practical experience in national and global infrastructure, power transmission, industrial construction and municipal engineering projects. With mature overseas business layout, our cables are served to distributors, contractors and engineering purchasers worldwide, delivering stable, high-quality cable solutions and reliable long-term cooperation guarantees for global clients.

Focusing on global procurement demands and project requirements, Taitong Cable delivers cost-effective, standard-compliant and tailor-made solutions for custom low voltage armoured copper conductor XLPE insulated PE sheathed power cables. Full customization of technical specifications, armour configurations and structural parameters is available to match various engineering drawing standards and on-site application needs. Abundant factory stock and flexible production capacity support bulk order procurement, urgent project delivery and personalized custom orders, fully catering to local agents, engineering contractors and large-scale infrastructure purchasers. Factory-direct sales model eliminates intermediate markups to ensure competitive pricing. Complete service systems cover professional pre-sales technical consultation, free sample testing and systematic after-sales support, effectively cutting procurement costs, accelerating project progress and ensuring stable and long-term cable operation for construction, rail transit and power distribution sector projects.
