Low Voltage 2-5-Core STA Armoured Aluminium Conductor XLPE Insulated PVC Sheathed Power Cables

Founded in 2002, Taitong Cable is a well-established Chinese cable manufacturer operating 5 modern production bases, supplying high-grade low voltage 2-5-Core STA armoured aluminium conductor XLPE insulated PVC sheathed power cables rated 0.6/1kV, manufactured to IEC 60502-1 and IEC 60228 international standards.

Constructed with solid or compacted stranded aluminium conductor, XLPE insulation, fillers (optional), PVC bedding (inner-sheath), steel-tape armour (STA) and PVC outer sheath, this STA armoured cable NA2XBY runs at a maximum continuous temperature of 90°C and provides strong mechanical protection for underground, duct and trench fixed-power installations, and this electric cable is widely selected for utility upgrades, site development and general infrastructure projects, an ideal choice for global contractors, distributors and clients looking for bulk-procurement cable supplier.

600/1000V-NA2XBY  AL/XLPE/PVC/STA/PVC

Applications of Low Voltage 2-5-Core STA Armoured Aluminium Conductor XLPE Insulated PVC Sheathed Power CablesRated for 0.6/1kV

---

Designed for stationary low-voltage power supply, this 0.6/1 kV multi-core (2-5-core) STA armoured aluminium cable withstands external mechanical stress for underground laying, concealed routing and duct-mounted runs, well-suited for site utilities, public utility upgrades, campus developments, warehouse complexes, transport facilities and off-grid power-transfer works.

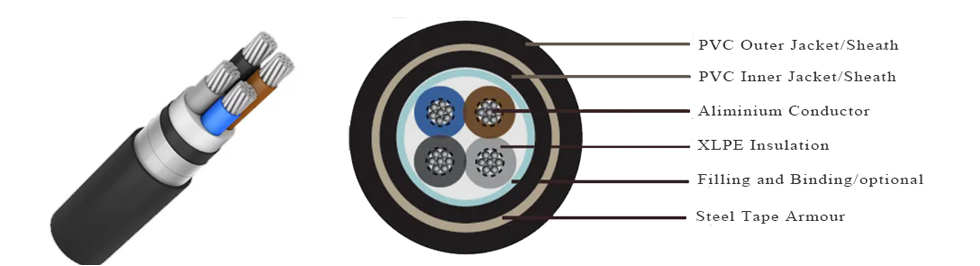

Construction

1, Conductor: Solid Class 1 or compacted stranded Class 2 aluminium, to IEC 60228

2, Insulation: Extruded XLPE (Cross-linked Polyethylene)

3, Fillers (optional): Non-hygroscopic fillers to round-up the cable core

4, Inner Sheath: Extruded PVC bedding

5, Armour: STA-Steel Tape Armour (single steel tape)

6, Outer Sheath: Extruded black PVC

Electrical Parameters

---

Why Choose Taitong Cable for Low Voltasge STA Armoured Aluminium Power Cables?

---

Founded in 2002, Taitong Cable is a specialized export-oriented cable manufacturer with five independent modern production bases in China, focusing on cable (below 35kV) R&D, precision production and global engineering supply. Equipped with professional in-house testing laboratories and full-process intelligent production lines, the brand implements strict IEC standardized quality management systems and holds complete ISO certification qualifications, ensuring every batch of products meets unified international delivery standards. All 0.6/1kV Low voltage 2-5-core STA armoured aluminium conductor XLPE insulated PVC sheathed power cables strictly follow IEC 60502-1 and IEC 60228 international specifications, with stable and reliable engineering applicability, other standards are available to custom.

Taitong Cable supports customized parameter adjustment, exclusive packaging and full-set export document services for global clients. With mature bulk order production capacity and scientific production scheduling, Taitong realizes stable mass delivery and shortens engineering procurement cycles. Adhering to direct factory supply modes to cut intermediate costs, we provide high cost-performance multi-core aluminium steel tape armoured cables for global clients. Long-term serving international engineering contractors, overseas distributors and infrastructure tendering projects, Taitong Cable delivers professional pre-sales technical consultation and after-sales guarantee services, standing as a reliable long-term cooperative supplier for global low-voltage cable procurement.
