Low Voltage Single-Core AWA Armoured Aluminium Conductor XLPE Insulated PVC Sheathed Power Cables

Taitong Cable is a professional Chinese manufacturer and bulk-supply supplier of low voltage single-core AWA armoured aluminium conductor XLPE insulated PVC sheathed power cables. Manufactured in compliance with IEC 60502-1 standard, this 0.6/1 kV AWA armoured AL XLPE PVC cable adopts compacted aluminium conductor, XLPE insulation, PVC bedding, aluminium-wire armour (AWA ) and PVC outer sheath. The aluminium wire armour avoids magnetic-loss risks for single-core AC circuits while providing good mechanical crush protection. This NA2XRY cable delivers stable electrical performance, heat-resistance and long-term durability.

Suitable for underground direct burial, ducts and fixed low-voltage power distribution in municipal, industrial and infrastructure projects. With strict quality-control systems, Taitong Cable serves global contractors, distributors and project purchasers across Africa, Southeast Asia and the Middle East and other regions. Custom specifications, sample testing, factory audit and large-volume procurement services are available for our global clients.

NA2XRY-Single-Core-0.6/1kV-AL/XLPE/AWA/PVC

Applications of low voltage single-core AWA armoured aluminium conductor XLPE insulated PVC sheathed power cables rated for 0.6/1kV

---

This 0.6/1kV 1-C AWA armoured AL XLPE PVC cable is engineered for underground-laid low-voltage power distribution. With mechanical shielding from AWA armour, it fits burial, ducts and trench installations without heavy tension. Commonly deployed in municipal grids, industrial sites and public infrastructure projects, and well-suited for engineering contractors and bulk purchasers in overseas markets.

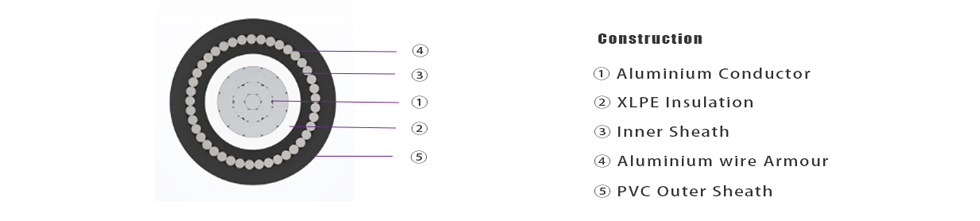

Construction

---

1,Conductor: Class 1 solid or Class-2 stranded aluminium, IEC 60228

2,Insulation: Extruded XLPE, IEC 60502-1

3,Bedding: Extruded PVC inner-sheath

4,Armour: AWA-Aluminium Wire Armour (non-magnetic armour for singlecore AC circuit, eliminate eddy-current loss)

5,Outer-sheath: Extruded black PVC

Electrical Parameters

---

Note: Data based on IEC standards; please state requirements for other non-equivalent standards.

Factory and Product Advantages of Taitong Cable, A Reputable and Professional Large Chinese Cable Manufacturer and Supplier of 0.6/1kV LV Single-Core AWA Armoured Aluminium XLPE PVC Cable

---

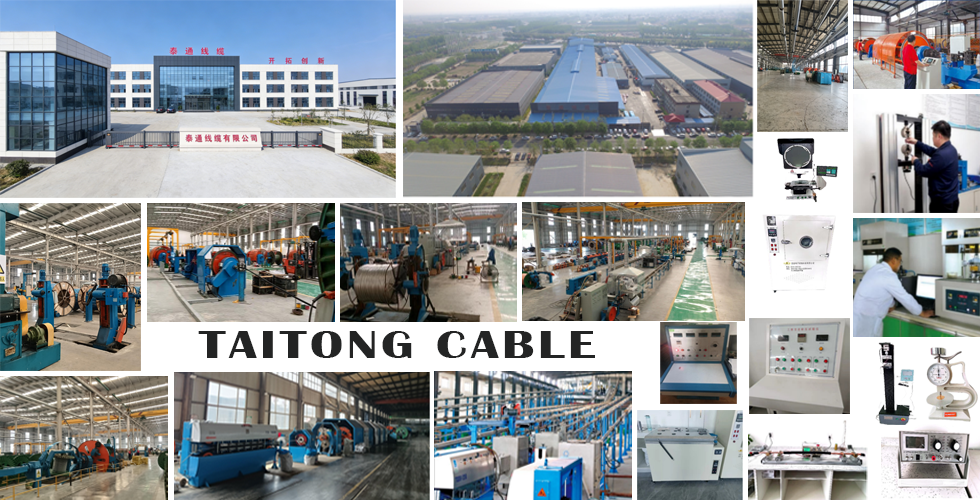

Founded in 2002, Taitong Cable is a professional high-tech wire and cable manufacturer with mature production experience and strong comprehensive strength. We own 5 modern production bases in China, advanced automated production and precision testing equipment, and hold 38 technical patents. Certified with ISO quality, environment and occupational health safety systems, all Taitong's cable products up to 35kV comply with IEC and international mainstream standards such as VDE/HD/EN/BS. With a professional R&D and sales team,Taitong Cable supports large-batch wholesale, bulk project procurement and customized services, providing cost-effective products and stable supply for global distributors, engineering contractors and other clients.

For global project contractors, distributors and bulk buyers, the low voltage (0.6/1kV) single-core AWA armoured aluminium conductor XLPE insulated PVC sheathed power cables made in Taitong Cable are factory-direct pricing and trustworthy procurement solutions for low-voltage power distribution projects. Different from ordinary armoured cables, our AWA non-magnetic armoured structure solves the overheating and high-loss problems of single-core AC cable operation, greatly improving project safety and service life. All our NA2XRY 1/C cables are strictly complied with international production standards, with full-process quality testing, and customized specifications for large-scale bulk orders. With abundant inventory reserves and efficient delivery capabilities, Taitong Cable helps clients save procurement cycles and project costs. Whether for municipal engineering, industrial construction or commercial infrastructure projects, our stable product quality and professional one-stop service can fully meet diverse long-term cooperation needs all over the world.
