Custom Low Voltage Un-armoured Aluminium Conductor XLPE Insulated PE Sheathed Power Cables

Custom low voltage unarmoured aluminium conductor XLPE insulated PE sheathed power cables by Taitong Cable are rated 0.6/1kV, manufactured to IEC 60502-1 with full certification support. Constructed with solid or compact stranded aluminium conductor, XLPE insulation, optional filling and binding tape, and UV-resistant PE outer sheath. Single-core design omits filler and binding tape naturally; multi-core versions (2–5 cores) adopt optional filling and binding tape to maintain round cable profile. XLPE delivers excellent electrical stability and 90°C continuous working temperature; PE sheath offers moisture, chemical and weather resistance.

This lightweight, cost-effective unarmoured cable suits indoor, duct and outdoor installations without heavy mechanical impact. Available with custom core numbers, cross-sections, colour coding and cut lengths. Preferred by global EPC contractors, utility buyers and project developers for municipal, industrial, building and renewable power distribution. Taitong Cable provides factory direct supply, test reports and good after-service for worldwide power projects.

Applications of Low Voltage Un-armoured Aluminium Conductor XLPE Insulated PE Sheathed Power Cables Rated for 0.6/1kV

---

Suitable for 0.6/1kV power distribution in municipal, industrial, commercial and renewable energy projects. For indoor laying, cable ducts and outdoor installation where no severe mechanical damage exists. Widely adopted by EPC contractors and power utilities for building power supply and grid auxiliary lines.

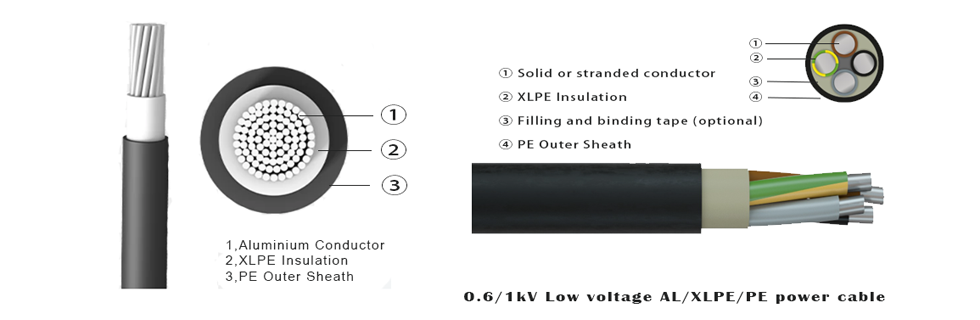

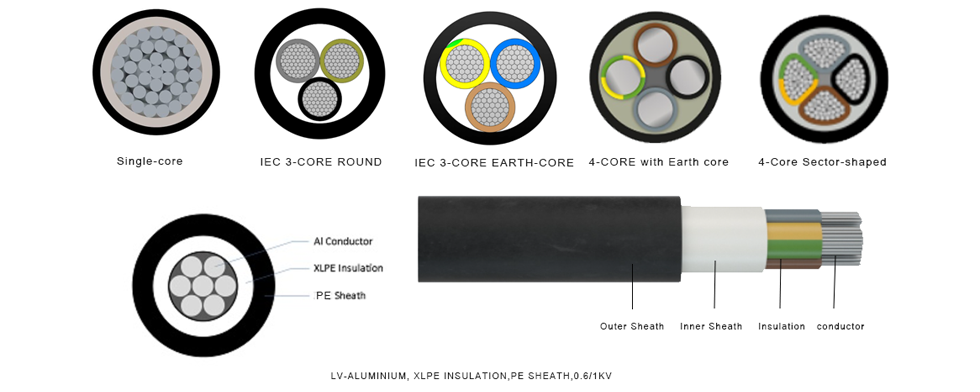

Construction

---

1,Conductor: Class 1 solid or Class 2 compacted stranded annealed aluminium conductor, complying with IEC 60228

2,Insulation: Cross-Linked Polyethylene (XLPE)

3, Filler and binding layer: Suitable for multi-core versions and optional.

4,Outer Sheath: Extruded black Polyethylene (PE)

Electrical Parameters

---

Taitong Cable Factory Strength and Customization Service for series of cables

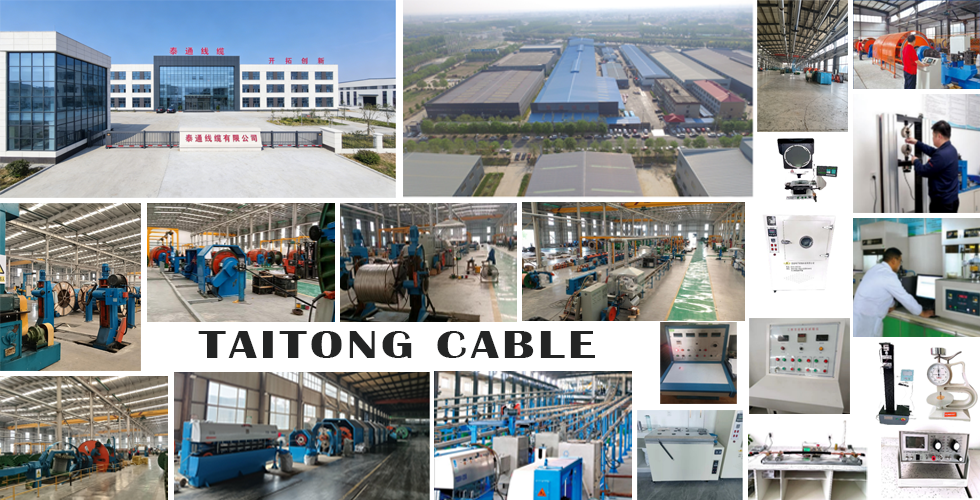

As a professional Chinese cable manufacturer, Taitong Cable owns 5 modern production bases located in Hejian, Zhengzhou and Shenyang, supported by over 30 domestic service offices. Boasting 38 technical patents and independent R&D and testing laboratories, the company holds complete ISO, CE and IEC certifications, strictly complying with international manufacturing and quality inspection standards. Taitong professionally produces full-range power cables up to 35kV, covering the 0.6/1kV low voltage un-armoured aluminium conductor XLPE insulated PE sheathed power cables (AL/XLPE/PE 0.6/1kV) and other mainstream cable series.

Taitong provides one-stop customized solutions, including custom core numbers, cross-sections, color coding and cut lengths to match diverse project demands. Free sample provision are offered, professional technical guidance and complete official test reports are provided for every batch of products. With large-scale production capacity and stable supply chains, Taitong C able guarantees fast delivery, factory-direct competitive prices and reliable quality for bulk orders and global large-scale municipal, industrial and renewable energy projects. Our full qualification system and strict quality control help global clients reduce procurement costs and project risks efficiently.
