Low voltage unarmoured Copper or Aluminium XLPE Insulated LSZH Sheathed Power Cables

Taitong Cable manufactures low voltage unarmoured XLPE insulated LSZH sheathed power cables rated at 0.6/1kV, meeting IEC specifications with ISO certifications. The cable adopts class 1 solid or class 2 compact stranded copper or aluminium conductors. XLPE insulation ensures outstanding electrical stability with 90°C long-term working temperature. The outer LSZH halogen-free polyolefin sheath limits toxic fumes and smoke release during fire hazards. Multi-core variants have optional filling and binding tape for round cable formation. Designed for indoor and duct laying, This LSZH cable is widely adopted in tunnels, high-rise complexes, medical facilities and renewable power distribution. Targeting international EPC contractors, utility purchasers and project developers, Taitong Cable, a professional Chinese cable manufacturer and supplier, offers custom sizes, colour coding and cut lengths. Samples, full test certificates and dedicated technical support are available upon request.

Cu/AL conductor XLPE Insulated LSZH Outer Sheath Power Cable 0.6/1kV

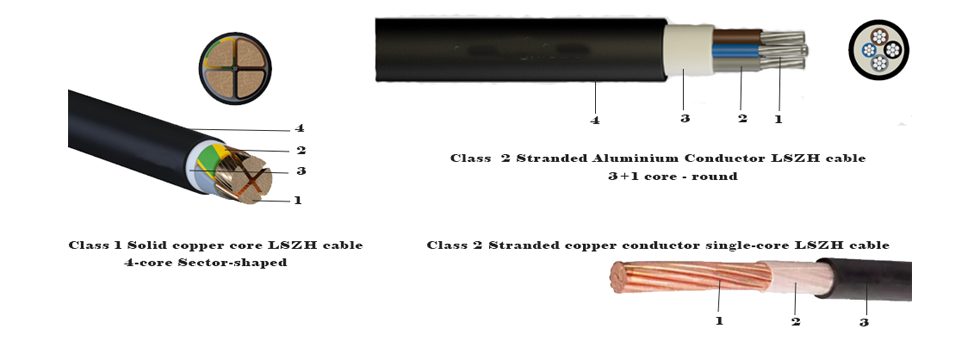

Low-voltage Unarmoured LSZH Low Voltage Unarmoured Cable Structure

---

1，Conductor:Solid or Compacted stranded copper or aluminium conductor

2，Insulation: XLPE (Cross-linked Polyethylene) insulation, 90°C continuous working temperature

3，Filling & binding tape:Not required for single-core cable; optional for multi-core (2 to 5-core) cable to shape round core assembly

4，Outer sheath；Extruded LSZH (Low Smoke Zero Halogen / halogen-free polyolefin) sheath

Applications

---

This LSZH unarmoured low voltage power cable is for indoor and duct laying. Its low-smoke, halogen-free feature suits high-rise buildings, hospitals, tunnels and renewable power distribution. Preferred for public infrastructure and EPC projects requiring high fire safety.

Electrical Performance

---

Rated voltage: 0.6/1kV

Insulation: XLPE, high dielectric strength, low dielectric loss

Continuous operating temperature: 90°C

Short-circuit temperature: 250°C

Compliance standard: IEC 60502-1, IEC 60754, IEC 61034, IEC 60332-3

Stable long-distance power transmission

Why Select Taitong Cable as Your Long-term Cable Supplier?

---

Taitong Cable, a reliable Chinese cable manufacturer and supplier, operates 5 modern production bases across China supported by over 30 domestic service offices and holds 38 technical patents. With rich experience in large-scale domestic and abroad power projects, a full portfolio of cables up to 35kV are manufactured, including the low voltage unarmoured XLPE insulated LSZH sheathed power cables with copper or aluminium conductor.

Strict multi-layer quality inspection procedures run through raw material incoming, production processing and finished product delivery to stabilize cable electrical performance, flame retardancy and environmental safety. Adequate factory stock supports fast mass order delivery, while standardized production controls end-product quality and cost to offer competitive factory prices for bulk purchasers.

Taitong Cable provides free product samples, customized specifications, complete IEC standard test reports and full-cycle after-sales service. Professional technical teams support long-term business cooperation with global EPC contractors, utility companies and construction developers. High-quality halogen-free low voltage (0.6/1kV) power cables are widely applied in high-rise buildings, hospitals, tunnel engineering and renewable power distribution, creating stable win-win value for global project clients.Taitong Cable warmly welcomes all customers to visit and inspect our factory.
