Low Voltage PVC Power Cables

High quality LV PVC Insulated Power Cables from a Professional Chinese Manufacturer

Low Voltage 2-5Core PVC Insulated PVC Sheathed Aluminum Conductor Power Cables

Taitong Cable, a cable manufacturer based in China, offers premium low voltage 2-5 core PVC insulated PVC sheathed aluminium conductor power cables of 0.6/1kV that meet IEC standards. Suitable for bulk cable procurement, our factory-direct wholesale brings favourable rates and quick delivery. Complete qualification documents and thoughtful after-sales service are provided to satisfy overseas project purchasing demands.

Send Inquiry

Product Description

The Low-Voltage 2-5 Core PVC-insulated PVC-sheathed Aluminum conductor power cables made in Taitong Cable, are rated for 0.6/1 kV and manufactured in accordance with IEC 60502-1. Please state any other non-equivalent standards inside your inquiry list.

The layered-from-inside-out construction of LV multi-core Aluminum PVC electric cable adopts stranded Class-2 aluminium conductor with lightweight and good conductivity (Class 1 solid aluminum core is also optional per client's requirement or for cables with nominal cross-section no more than 6mm²); hot-extruded PVC insulation delivers outstanding voltage-resistance and ageing-proof property; halogen-free filler keeps the round cable shape; non-woven binding tape holds cores tightly; tough outer PVC sheath brings abrasion-resistant and moisture-proof performance for long-time service.

This power cable (AL/PVC/PVC 600/1000V) fits indoor wiring, commercial construction and municipal-engineering layouts. As a large wire and cable supplier based in China, our factory (Taitong Cable owns 5 large manufacturing plants) welcomes bulk procurement, project-based orders and stock-resale global clients, offering customizable structures, competitive factory rates, short lead-time and full-range after-sales support.

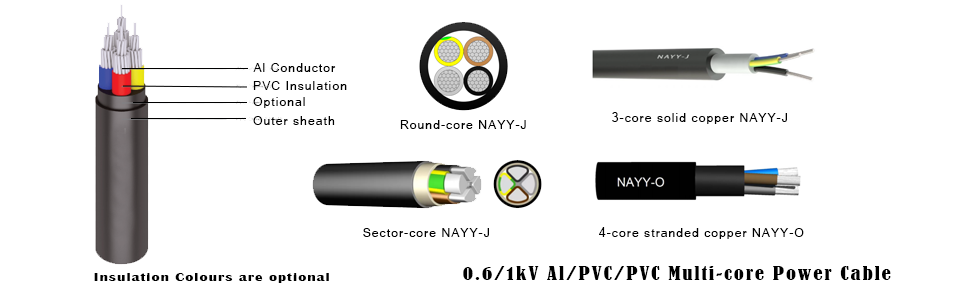

Construction

1, Conductor: Aluminium-core, optional Class-1 solid conductor (≤6 mm²) or Class-2 stranded aluminium conductor, lightweight and high-conductivity, IEC 60228;

2, Insulation:PVC Extruded polyvinyl-chloride insulation,

3, Filler and Inner sheath(Optional): Fill gaps between cores to keep round cable shape

4, Binding tape:Non-woven fabric binding tape Wrap assembled cores tightly for structural stability

5, Outer PVC sheath: Abrasion-resistant and moisture-proof outer jacket

Core Insulation Colour: Identification in accordance with HD 308 S2. Green/Yellow for protective conductor as per IEC 60445. (See figure below)

Number of cores	Standard Core Colours (per HD 308 S2)
2	-	-	Blue	Brown
3	G-type / J-type	Green-and-yellow	Blue	Brown
3^a	O-type / X-type	-	Blue	Brown	Black
3	O-type / X-type	-	-	Brown	Black	Grey
4	G-type / J-type	Green-and-yellow	-	Brown	Black	Grey
4^a	G-type / J-type	Green-and-yellow	Blue	Brown	Black
4	O-type / X-type	-	Blue	Brown	Black	Grey
5	G-type / J-type	Green-and-yellow	Blue	Brown	Black	Grey
^a For certain applications only.
Type: NAYY-J; NAYY-O

Insulation colour codes optional for Southeast-Asian, Middle-Eastern and African markets

2-core: red, black

3-core: red, yellow, blue

4-core: red, yellow, blue, black

5-core: red, yellow, blue, black, green (earth-core)

Applications of Low Voltage 2-5Core PVC Insulated PVC Sheathed Aluminum Conductor Power Cables 0.6/1kV

The 600/1000V multi-core Aluminium PVC insulated and sheathed unshielded and unarmoured electric cable is suitable for indoor fixed-layout power-distribution wiring, commercial residential buildings, office premises, factory workshops, municipal construction and warehouse power circuits. As an unshielded aluminium-core power cable, it fits common-purpose indoor installation without strong electromagnetic interference.

Technical Specifications of Low Voltage 2 to 5-Core PVC Insulated PVC Sheathed Aluminum Conductor Power Cables 0.6/1kV unshielded and unarmoured

Reference Standards	Compliant with IEC 60502.1:overall cable-structure standard IEC 60228:aluminium-conductor specification (Kindly specify other national standards such as BS, VDE and SASO inside your inquiry.)
Rated voltage	0.6/1 kV
Maximum continuous operating temperature of conductor	70℃
Short-circuit temperature	160℃ (max duration 5 seconds)-160℃ (cross-section≤300mm²), 140℃ (cross section＞300mm²)
Minimum installation temperature	≥0℃
Conductor DC resistance at 20℃	Complies with IEC 60228 (aluminium conductor)
Insulation resistance at 20℃	Meets IEC requirements for PVC insulation
AC withstand voltage test	3.5 kV, 5 min, no breakdown
Current carrying capacity	Subject to cable cross-section, installation method and ambient temperature
Bending Radius	Min. Bending Radius (Installation): 20D Min. Bending Radius Near Junction Boxes & Terminations: 15D (D=outer diameter)
Nominal cross-sectional area of conductors	2.5~400mm²(or per Client’s request) (2/3/4/5 cores, include 3+1cores, 3+2 cores and 4+1cores);
Colour of outer-sheath	Black serves as the standard sheath/jacket colour; grey, blue, red and other colours are customizable or printed-numeric core identification. Refer to IEC 60445 and HD 308 S2 for mainstream-European insulation colour codes of 2 to 5-core cables.

Purchase low voltage aluminium PVC power cable in China, choose trusted Taitong Cable.

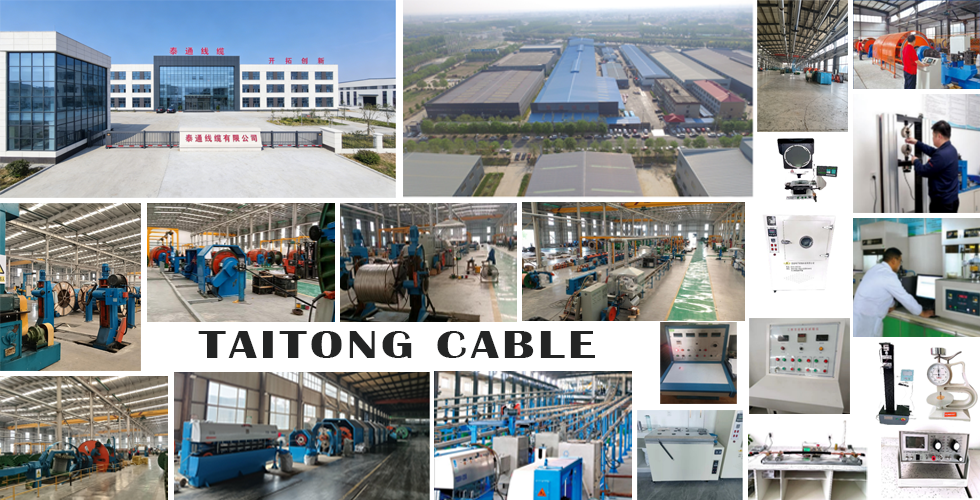

Taitong Cable, founded in 2002, is a professional Chinese cable manufacturer and supplier with 5 production factories across different regions in China. We own professional R&D and technical teams, multiple patented technologies, more than 30 national offices and an in-house testing laboratory. All cable products produced and customized in Taitong comply with IEC, BS, VDE and ISO management certifications, with complete qualification documents for global tender and project inspection. Our 0.6/1kV low voltage 2-5core pvc insulated pvc sheathed aluminum conductor power cables (aluminum power cable, pvc insulated power cable, low voltage multi-core cable, 0.6/1kV lv distribution cable) serve power distribution, building construction, industrial plants, municipal engineering and EPC infrastructure projects. Suitable buyers include electrical distributors, EPC contractors, engineering firms, power utility purchasers and wholesale importers.

This unarmoured aluminum PVC power cable brings tangible benefits for global clients. Taitong Cable provides competitive factory-direct price, stable and fast production lead time to meet tight project schedules. Free samples are available for quality verification, and factory audit or virtual factory inspection is supported for all customers. Our technical team offers full pre-sales technical support and reliable after-sales service. Customized specifications are acceptable for different project demands. As a reliable power cable supplier, Taitong Cable maintains strict quality testing in our laboratory for every batch, helping our clients reduce project risks and secure long-term stable cable supply.
