Low Voltage PVC Power Cables

High quality LV PVC Insulated Power Cables from a Professional Chinese Manufacturer

Low Voltage Single Core Copper Conductor PVC Insulated and Sheathed Power Cables

Taitong Cable,a professional Chinese cable manufacturer and global supplier, provides Low voltage single core copper conductor PVC insulated and sheathed power cables rated at 0.6/1kV. These wiring cables feature solid or stranded copper conductors with dual PVC insulation and sheath, offering a full range of cross-sections and fully conforming to ISO & IEC standards for global construction wiring projects. We supply consistent high-quality cables via factory direct channels at competitive prices, fully catering to bulk orders and project procurement requirements from global clients.

Send Inquiry

Product Description

Taitong's 0.6/1kV Low voltage single core copper conductor PVC insulated and sheathed power cables delivers stable electrical transmission with low voltage drop and low energy consumption. The inner PVC insulation offers excellent dielectric performance to avoid electric leakage, while the outer PVC sheath boasts strong resistance to moisture, acid, alkali and mechanical wear. Custom flame-retardant versions are available to meet various project specifications. High-conductivity copper conductors guarantee steady power supply and extended service life. These cables are widely applicable for factory cable renewal and bulk procurement of large construction projects. We support factory direct supply and customized specifications for global engineering purchasers.

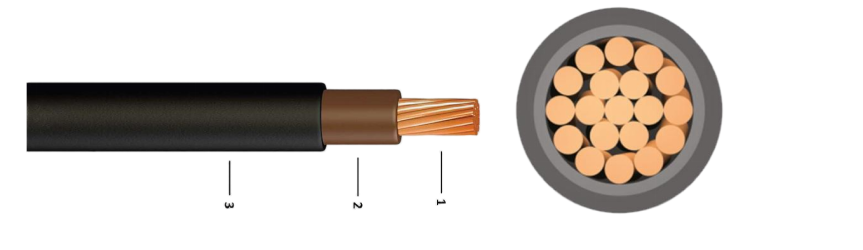

1, Copper Conductor 2, PVC Insulation 3, PVC oversheath

0.6/1kV Single-core,PVC insulated,PVC sheathed Power cable

Applications 丨Cu/PVC/PVC - NYY- NYY/NYY-O/NYY-J

LV PVC Insulated Single Core Copper PVC Sheath Power Cables apply to fixed indoor and outdoor wiring in urban power distribution, industrial plants and switchgears. The cables support laying in cable trays, conduits or underground with proper mechanical shielding.

Electrical Performance Parameters

Reference Standards	IEC 60502.1 EN 60502./IEC 60228 1DIN VDE 0276 / HD603 S1 available
Rated Voltage (U0/ U(Um))	600/1000V (1.2kV)-Low voltage
Operating Temperature	Maximum conductor temperature in normal operation: 70℃ (PVCST: 80℃,PVC ST2: 90℃)
Short Circuit Temperature	160℃ (cross-section≤300mm²), 140℃ (cross section＞300mm²)
Min. Bending Radius (Installation)	20D (D=outer diameter)
Min. Bending Radius Near Junction Boxes & Terminations	15D (D=outer diameter)
Color of oversheath	normally black *Other colours available upon request
Nominal cross-sectional area of conductors	10~400mm² (or per Client’s request)
Special feature available on request	IEC 60332-3-22 (Category A);IEC 60332-3-24 (Category C);Low smoke halogen free; wire armour for mechanical protection
Note: Data based on IEC standards; please state requirements for other non-equivalent standards.

The outer sheath serves as the outer protective layer with the following optional types

ST₂-PVC (conventional PVC sheath)

ST₇-PE polyethylene sheath

ST₈-LSZH low-smoke zero-halogen polyolefin sheath

Custom-formulated sheaths with anti-termite, anti-rodent, oil-resistant, UV-resistant and flame-retardant properties are also available.

Parameters 丨 0.6/1kV - Sing-Core Copper Conductor PVC Insulated PVC Sheathed Power Cable

No. of cores and Norminal Cross-Section (mm²）：

1x10, 1x16, 1x25, 1x35, 1x50, 1x70, 1x95, 1x120, 1x150, 1x185, 1x240, 1x300, 1x400

Conductor dimensions for single-core cable

Nominal cross-sectional area	Minimum number of wires in the conductor		Diameters ofcircularcopperconductors				Standard Packing Length
	Minimum number of wires in the conductor		Solid Class 1	Non compacted stranded class 2	Stranded compacted circle class 2
	circle	Circularcompacted	Solid Class 1	Non compacted stranded class 2	Minimum diameter	Maximum diameter
mm²	Cu		mm	mm	mm	mm	m
1,5	7	6	1,5	1,7	-	-	Per client’s requirement1
2,5	7	6	1,9	2,2	-	-	Per client’s requirement1
4	7	6	2,4	2,7	-	-	Per client’s requirement1
6	7	6	2,9	3,3	-	-	Per client’s requirement1
10	7	6	3,7	4,2	3,6	4,0	Per client’s requirement1
16	7	6	4,6	5,3	4,6	5,2	Per client’s requirement1
25	7	6	5,7	6,6	5,6	6,5	Per client’s requirement1
35	7	6	6,7	7,9	6,6	7,5	Per client’s requirement1
50	19	6	7,8	9,1	7,7	8,6	Per client’s requirement1
70	19	12	9,4	11,0	9,3	10,2	Per client’s requirement1
95	19	15	11,0	12,9	11,0	12,0	Per client’s requirement1
120	37	18	12,4	14,5	12,3	13,5	Per client’s requirement1
150	37	18	13,8	16,2	13,7	15,0	Per client’s requirement1
185	37	30	15,4	18,0	15,3	16,8	Per client’s requirement1
240	37	34	17,6	20,6	17,6	19,2	Per client’s requirement1
300	61	34	19,8	23,1	19,7	21,6	Per client’s requirement1
400	61	53	22,2	26,1	22,3	24,6	Per client’s requirement1

Note:

¹ Cable length per reel follows your specified demand. If no special requirement, we can customize both cable length and reel size according to your needs.

Factory Advantages

At Taitong Cable, you can purchase high-quality, fully compliant Low voltage single core copper conductor PVC insulated and sheathed power cables at factory-direct prices.

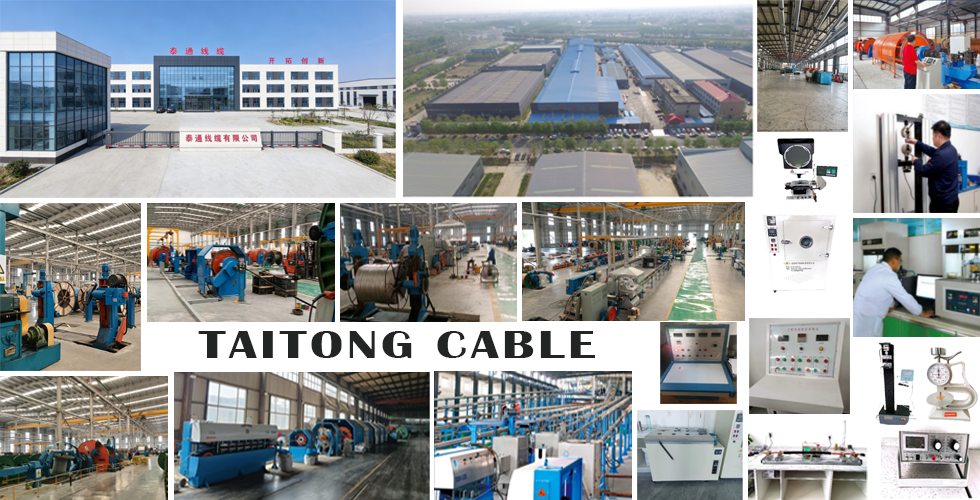

As a professional cable manufacturer, Taitong Cable holds complete industry certifications and operates modern automated production workshops. With rich experience serving large-scale global engineering projects and long-term cooperative clients, we supply a full lineup of cables covering low, medium and high voltage up to 35kV, including overhead cables, special-purpose cables and rubber insulated cables. All products comply with international standards and are available at factory-direct competitive prices. Global purchasers can source stable high-quality cables from Taitong, a reliable Chinese manufacturer.
