Low Voltage Single-Core AWA Armoured PVC Copper Power Cables

This Low voltage single-core AWA armoured PVC copper power Cable adopts high conductivity copper conductor, PVC insulation, PVC bedding, non-magnetic aluminium wire armour and PVC outer sheath. The AWA aluminium wire armour effectively avoids eddy current overheating problem under single-phase AC operation, with excellent compression and impact resistance for underground direct burial laying.

All products made in Taitong Cable, LV single core AWA armoured copper power cables with CU/PVC/PVC/AWA/PVC structure, strictly conform to BS 5467 and IEC 60502 standards, multiple cross-section specifications are available to match different engineering demands. As a global cable supplier in China, we support factory direct supply with stable quality and competitive prices, well suited for bulk wholesale, construction, substation and overseas power project procurement from global EPC customers.

1/C CU/PVC/PVC/AWA/PVC 0.6/1kV IEC 60502-1

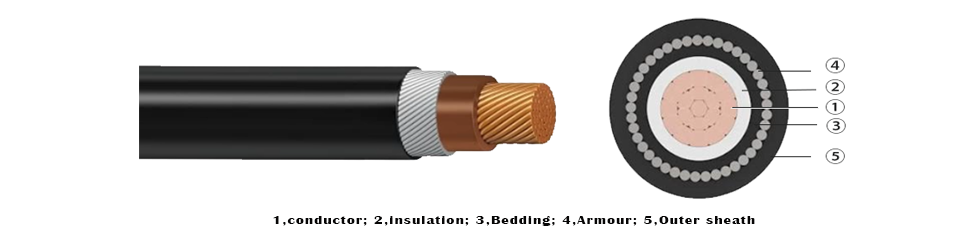

Construction

---

Single Core Copper PVC Insulated PVC Bedding AWA Armoured PVC Sheathed Power Cable 0.6/1kV Low Voltage

① Conductor: Plain annealed copper, Class 1 solid (RE) or Class 2 stranded as per IEC 60228

② Insulation: Polyvinyl Chloride (PVC)

③ Bedding: An extruded layer of polyvinyl chloride (PVC) compound

④ Armour: A single layer of Aluminium wire armour (AWA)

⑤ Sheath: Polyvinyl Chloride (PVC)

Applications of Low Voltage Single-Core AWA Armoured PVC Copper Power Cables

---

Power Distribution Networks: Used for main low-voltage power supply and distribution in industrial plants, power stations, and commercial buildings.

Indoor and outdoor use: Suitable for installation in fixed routing, cable trays, conduits, open air, or service tunnels.

Underground Burial: Recommended for direct burial in the earth or in underground ducts where robust mechanical and environmental protection is required.

Electrical Parameters

---

Single-core 0.6/1 kV copper PVC-insulated AWA aluminium wire armoured cable has multiple-structure options

---

1, AWA non-magnetic armour eliminates eddy-current loss for AC single-core wiring.

2, Optional outer sheath: ST2-PVC for indoor projects, ST7-PE for outdoor direct-burial, ST8-LSZH for public-safety-critical tunnels and subways.

3, XLPE insulation, flexible conductor and special-modified sheath are available for flame-retardant, fire-resistant, UV-resistant and anti-termite working conditions.

Key Environmental and Physical Strengths of Low Voltage (LV) Single-Core AWA Armoured PVC Copper Power Cables

---

Mechanical Protection: The aluminum wire armor protects the core against physical damage, heavy impacts, and pulling tension during installation.

Non-Magnetic Armor: Because it is a single-core AC cable, aluminum wire (instead of steel) is used for the armor to avoid dangerous magnetic induction and overheating.

Moisture and Chemical Resistance: Can operate safely in wet or dry locations due to its impermeable PVC layers.

Taitong Cable Advantages as a leading cable supplier in China

---

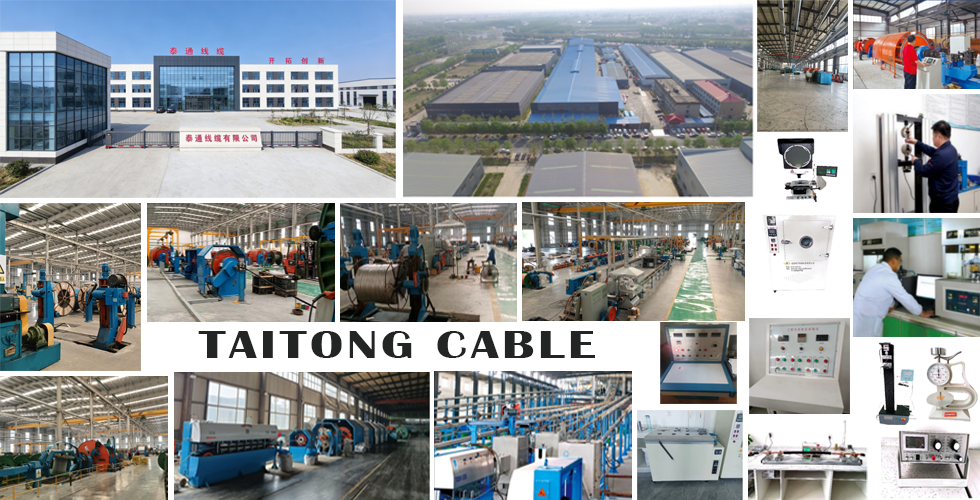

Taitong Cable, a professional Chinese manufacturer and global supplier of low voltage single-core AWA armoured PVC copper power cables, provides services for global EPC enterprises, electrical contractors and cable distributors. We run five production bases in China, offering a full range of cables up to 35kV. With extensive experience supporting large and national key projects, we are the ideal partner for EPC companies and clients requiring large warehouse bulk procurement.Our cables adopt non-magnetic aluminium wire armour to avoid eddy current heating for single-core AC circuits, suitable for direct burial, cable tray and substation wiring. All cables comply with IEC 60502-1; custom manufacturing to BS 5467 or VDE 0276-603 is available. Supported by full ISO & IEC certifications, we deliver diverse cross-section options, stable quality and factory-direct pricing. Custom sheath colours and flame retardant options are available for worldwide construction and industrial power projects.
