Low‑Voltage Single-Core Aluminum Conductor PVC Insulated PVC Sheathed Unarmoured Power Cables

Taitong Cable supplies wholesale‑grade 0.6/1 kV single‑core unarmoured aluminium power cable with stranded aluminium conductor for low‑resistance transmission (Class 1 solid is optional for special sizes); PVC‑A insulation with great electrical‑insulating and ageing‑resistant property; wear‑resistant black PVC outer‑sheath for outer‑layer mechanical protection. Produced strictly to IEC 60502‑1, the cable endures 70℃ continuous operating temperature. Designed for indoor fixed‑type power wiring in buildings. Bulk purchase, custom‑made length are available for overseas buyers based in China as a cable manufacturer.

0.6/1kV AL-PVC-PVC (IEC Standard)
N2XY (European Standard)

Single-core insulation colours

Brown for phase conductor, blue for neutral wire, green-yellow for earth-use cable.

Black insulation is the common-stock option.

Custom insulation colours are acceptable.

Outer PVC sheath is black as standard.

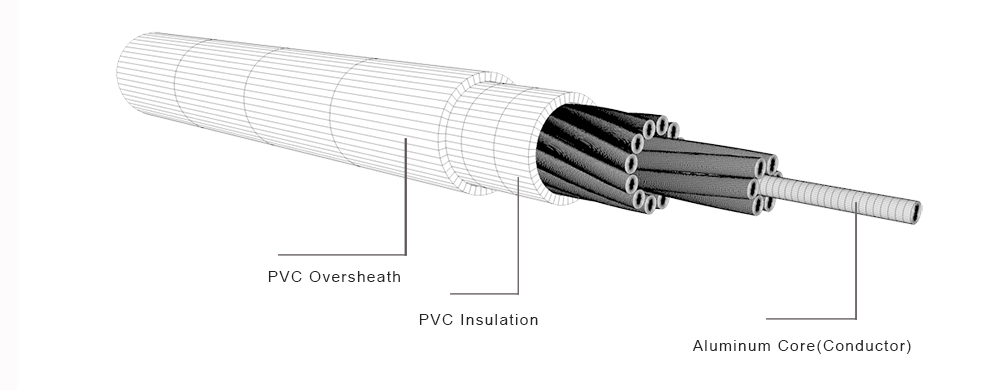

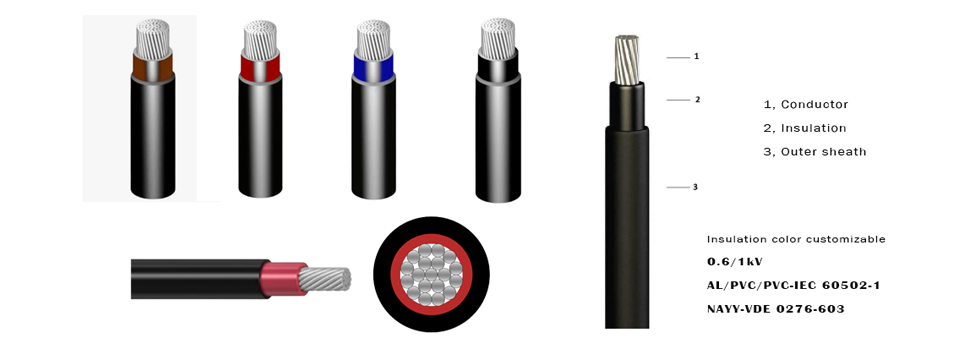

Construction

---

Conductor: Class-1 solid/Class-2 stranded aluminium conductor (IEC 60228)

Insulation: PVC compound insulation

Sheath: Black PVC outer-sheath

Technical Specifications of Low‑Voltage Single-Core Aluminum Conductor PVC Insulated PVC Sheathed Unarmoured Power Cables-0.6/1kV

Applications of Low voltage single-core aluminium power cables with PVC insulation and sheath rated for 600/1000V

This 0.6/1kV single-core aluminium unarmoured power-cable is intended for indoor fixed-installation. It is widely used for power distribution inside residential, commercial and industrial buildings, lighting circuits, wall-embedded wiring and general-purpose electrical-system layout. Not fit for underground burial or outdoor exposed-use without extra mechanical protection.

Electrical Parameters

---

Optional customizable-built constructions for 0.6/1kV LV Single-Core Aluminum Power Cable with PVC Insulation and Sheath (AL/PVC/PVC)

---

1, Class-1 solid or Class-2 stranded aluminium-conductor

2, Optional armour: AWA aluminium-wire armour for single-core cable / SWA steel-wire armour or STA steel-tape armour

3, Custom sheath material: LSZH, PE

4, Custom insulation and outer-sheath colour

5, Copper-tape shielding layer on demand

6, Custom cut-to-reel length

7, Custom surface printing and markings

8, Custom-rated flame-retardant and fire-resistant materials in accordance with relevant IEC standards

9, Multiple sheath options: anti-termite, UV-resistant and oil-resistant outer sheath

10, Custom operating-temperature and environmental-adaptation requirements

Purchasing Low Voltage Single-Core Aluminum-Core PVC Insulated and PVC Sheathed Power Cables of 600/1000V from Taitong Cable is the right choice for EPC, large project procurement and distributors

Founded in 2002, China-based Taitong Cable is a professional and reliable factory supplier for low-voltage single-core aluminium unarmoured power cable with PVC insulation and sheath (0.6/1kV,1.2kV). With over 20 years of industry experience, we have established a complete production and quality control system, holding full qualifications including ISO, CE and IEC-related certification, and we can assist customers from different regions in completing local market access certifications to meet regional compliance requirements.

Backed by large-scale production capacity, Taitong Cable offers factory-direct competitive quotations, sufficient bulk inventory and short lead times, fully supporting bulk procurement and custom orders. Our Low-Voltage Single-Core Aluminum Conductor PVC Insulated PVC Sheathed Unarmoured Power Cables strictly comply with IEC standards, and support full-range customization including armour (AWA/SWA/STA), flame-retardant, fire-resistant, anti-termite, UV-resistant and oil-resistant sheath materials, as well as conductor type, insulation color and length.

Adhering to the principle of sincere cooperation, we provide fast technical response and comprehensive after-sales service, solving product and delivery problems for customers in a timely manner. Whether for wholesale, project procurement or customized needs, cables made in Taitong can meet clients’ demands with high-quality products, favorable prices and reliable service, making us your preferred partner for cable procurement as a Chinese cable manufacturer.
