Low Voltage 2-to-5-core STA Steel Tape Armoured Aluminium PVC Insulated and Sheathed Power Cables

Taitong Cable, a-trusted Chinese wire and cable manufacturer, supplies Low voltage 2-to 5-core STA (steel tape armoured) Aluminium PVC insulated and sheathed power cables. This cable adopts a well-organized construction with optional round or compacted sector-shaped aluminium conductor, premium PVC insulation, optional core fillers and binding tapes (optional), compulsory inner bedding, steel-tape armour against mechanical squeeze, and wear-resistant PVC outer sheath for moisture and corrosion defence. Certified by ISO, CE and IEC 60502-1, this multi-core STA armoured Aluminium PVC insulated power cable delivers steady electric-property and long-term service, well-suited for underground installation, municipal works, plant power-distribution and commercial-building wiring projects.

Backed by abundant large scale project experience, our factory serves overseas bulk buyers and engineering contractors. Custom-made parameters, bulk wholesale, factory-price, quick delivery and complete after-sales service are available. Clients can request test samples and schedule on-site factory inspections for convenient procurement.

0.6/1kV AL-PVC-DSTA-PVC

(VDE: NAYBY-O NAYBY-J )

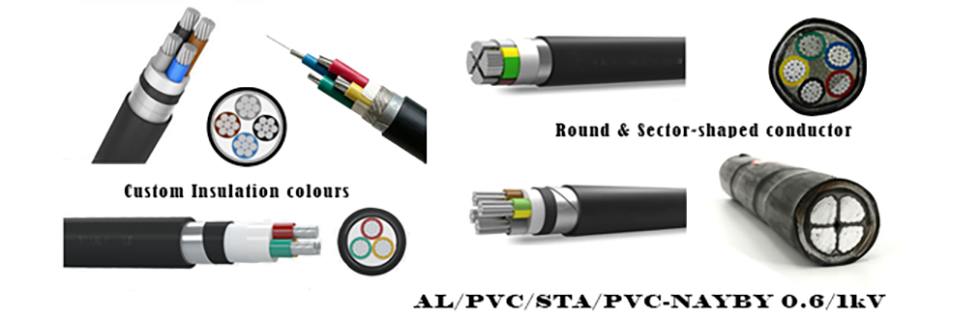

Red, green and other custom colours are available. Core insulation colour codes can be customized to meet regional market requirements.

---

PVC material features excellent tinting performance. For multi-core PVC cables sold in Southeast-Asian, Middle-Eastern and African markets, the standard-used colour scheme covers red, yellow, blue, black and green for the earth conductor, which is the common industrial solution. The IEC 60445 European standard colour coding adopts brown, black, grey (gray), light-blue and green-yellow combination.

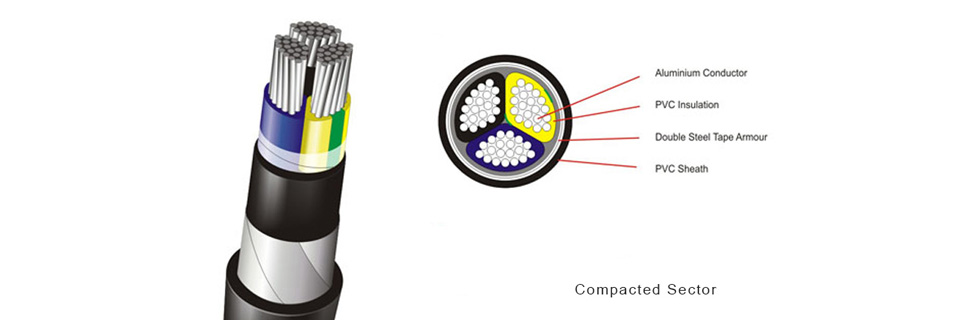

Construction

---

1, Aluminium conductor:Class-1 solid or Class-2 stranded aluminium (IEC 60228)

2, Extruded PVC insulation

3, Core filler (optional) (custom-halogen-free filler available)

4, Binder non-woven tape for cable-core binding (optional)

5, Inner PVC bedding-layer

6, Double steel-tape (DSTA) armour for mechanical-crush protection

7, Outer extruded PVC over-sheath

Applications of Low voltage 2-to-5-core STA steel tape armoured Aluminium PVC insulated and sheathed power cables 0.6/1kV

---

This 0.6/1kV low-voltage multi-core cable with steel tape armour resists extrusion and underground mechanical damage, widely used for underground burial, pipe laying, municipal engineering, residential complex power distribution, factory wiring, commercial buildings and outdoor infrastructure projects.

Electrical Parameters

---

0.6/1kV STA-Armoured Aluminium PVC Power Cable-Purchase Advantages From Taitong Cable

---

As a professional Chinese cable manufacturer, Taitong Cable takes pride in delivering high-quality Low voltage 2-to-5-core STA steel tape armoured Aluminium PVC insulated and sheathed power cables to global purchasers.

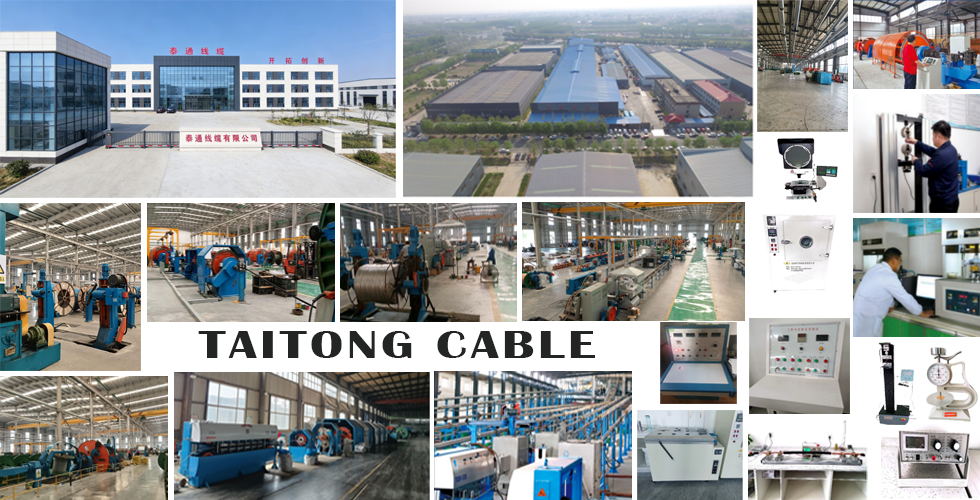

Our factory is equipped with advanced production and testing equipment, boasting rich experience in large-scale overseas engineering projects, enabling us to meet bulk order demands with efficient production and fast delivery. This low-voltage 2-5 Core STA-Armoured Aluminium PVC Power Cable fully complies with IEC 60502-1, ISO, CE or BS 6346 standards per client's requirement, with complete IEC-form test reports and full qualifications, ensuring stable electrical performance, excellent compression resistance and long service life for underground laying, municipal engineering, factory power supply and other scenarios.

Taitong Cable supports customizable specifications, including insulation colour codes tailored to regional habits, and provide thoughtful after-sales service. Global project contractors and bulk-order buyers are warmly welcome to inquire about samples and arrange factory inspections. Choose Taitong Cable for reliable quality, competitive factory prices and comprehensive procurement support to ensure the smooth progress of your projects.
