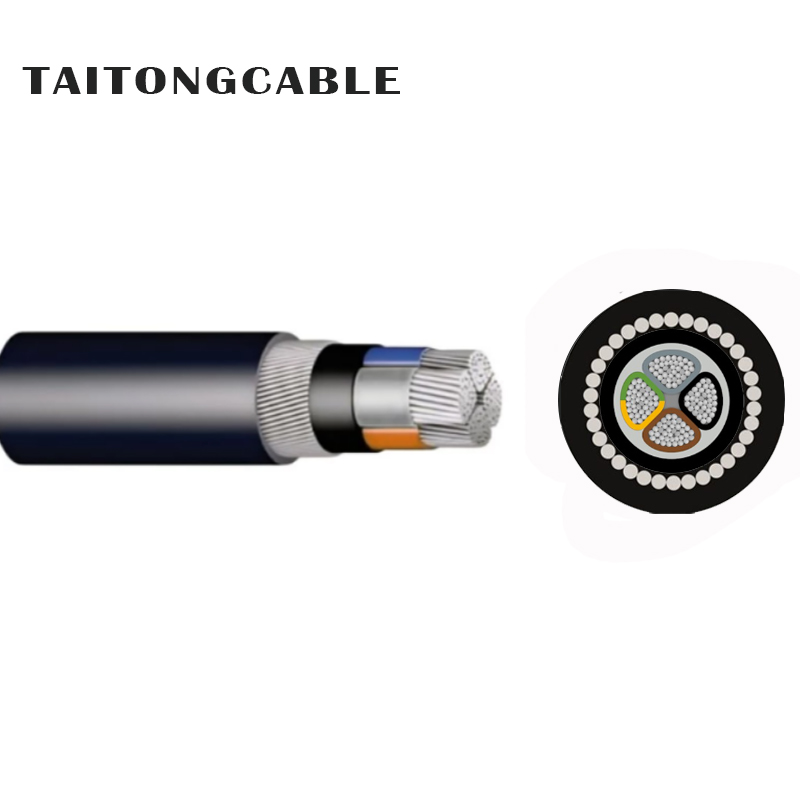

Low‑Voltage 2‑5‑Core SWA Steel‑Wire‑Armoured Aluminium PVC‑Insulated PVC‑Sheathed Power Cables

Low-voltage 2-5-Core SWA steel-wire-armoured Aluminium PVC-insulated PVC-sheathed power cables comply with IEC 60502-1 standard (Please specify other applicable standards such as HD/VDE or BS standards in your inquiry.). The cable adopts multi-layer composite construction. Optional round or compacted sector -Class 1 solid or Class 2 stranded-aluminium conductor ensures excellent electrical conductivity; ageing-resistant PVC-insulation guards against electric breakdown; core filler and binding tape hold internal cores in tidy layout (optional); inner bedding separates the armour layer from insulation; SWA steel-wire armour supplies robust compression-resistance for underground laying; tough outer PVC-sheath achieves moisture-proof and wear-resistant performance. Ideal for buried municipal power-supply wiring. Supplied by Taitong Cable, 0.6/1kV LV SWA armoured Aluminium conductor PVC power cables accept bulk wholesale, bespoke specifications and quick delivery for overseas distributors and project-based buyers (EPC).

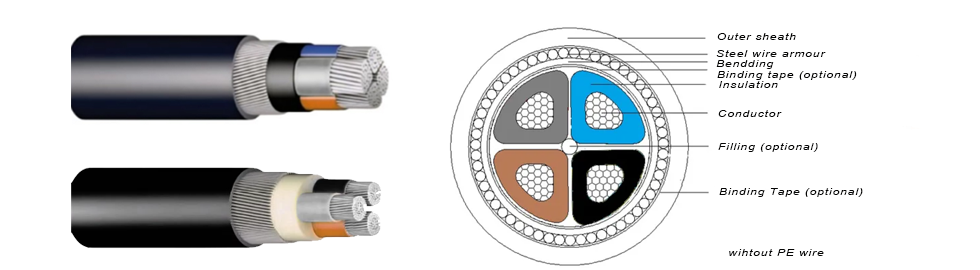

Construction

---

1, Optional round or compacted sector aluminium conductor for different cross-section sizes

2, Mandatory ageing-resistant PVC insulation

3, Optional core filler (omitted for tight-fitted sector-shaped cores)

4, Optional non-woven binding tape to bundle assembled cores

5, Mandatory inner bedding layer for insulation protection

6, Mandatory SWA steel-wire armour against underground mechanical impact

7, Mandatory tough outer PVC sheath with moisture-proof and abrasion-resistant performance

Applications of Low-Voltage 2-core to 5-Core SWA Steel-Wire-Armoured Aluminium PVC-Insulated PVC-Sheathed Power Cables

---

This SWA-armoured underground power cable suits buried pipeline laying, municipal engineering, commercial-site power supply, factory wiring and outdoor infrastructure projects. Its steel-wire armour guards against compression and mechanical damage underground. Custom-built colours and specifications are available for overseas project procurement.

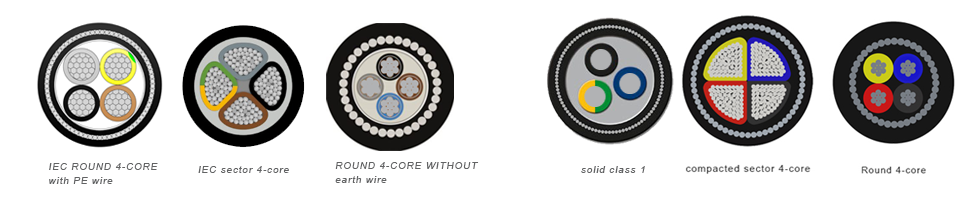

Differences Between Round Shaped and Sector Shaped Conductors for Multi-core PVC SWA Armoured Aluminium Power Cables

---

1. Round shaped conductor

Structure: Every single conductor adopts an independent round cross-section.

Advantages: Easy fabrication, excellent bending property, simple stripping. It is widely used for small size cables (≤16mm²).

Drawbacks: Large gaps exist between cored after cabling, which brings bigger overall cable diameter, higher material consumption and increased production cost.

2. Sector-shaped (tile type) compacted conductor

It is only applied to large size 3-, 4- and 5-core power cables. Stranded aluminium wires are mechanically pressed into sector-shaped cores. Several sector cores can perfectly assemble into a full-round circle.

Main merits: Tiny gaps between inner cores shrink the outer diameter of finished cables, cutting the consumption of sheath and filler materials to lower costs. The compact-built structure delivers strong extrusion resistance, ideal for underground-buried SWA-armoured cables. Larger conductor cross-section is achievable under the same cable outer diameter.

3. Conductor selection rules

Small section cables adopt round-shaped conductors for easy manufacture and good flexibility. Sector compacted conductors are preferred for multi-core cables above 25mm². Single-core cables always use round conductors, and sector shaped cores are unavailable.

Electrical Parameters

---

Taitong Cable Advantages of supplying cable products

---

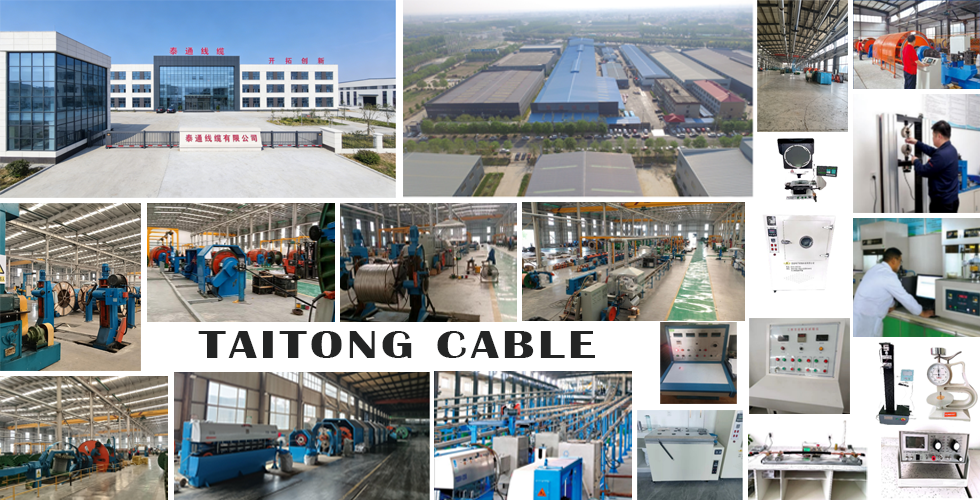

Taitong Cable is a well-established Chinese cable manufacturer with over 20 years of cable production experience and solid industrial standing in China. The factory owns large-scale production facilities and has supplied power cables for many domestic infrastructure and EPC projects and continuously seeks cooperation with more overseas customers. Taitong Cable holds complete ISO, CCC and international qualifications, and manufactures cables complying with BS, VDE and IEC standards to satisfy global market requirements. The factory accepts custom cable specifications, provides competitive factory-direct prices and product samples for buyers. On-site factory audit and virtual inspection are available for all purchasers. Taitong Cable serves electrical distributors, EPC contractors, power engineering firms and project buyers worldwide, delivering stable cable supply, strict quality control and responsive export support for all cable procurement orders as a professional cable supplier.

As a trustworthy Chinese wire and cable manufacturer and supplier, Taitong Cable provides Low voltage 2-core to 5-Core SWA steel wire armoured Aluminium PVC-insulated PVC sheathed power cables. Our 2-5 Core Low voltage SWA Aluminium PVC power cable suits underground municipal projects, plant power distribution and overseas infrastructure construction. Equipped with skilled-experienced teams and abundant large-project experience, our well-equipped factory handles bulk-volume orders and speedy delivery. Taitong serves purchasers across the global market with bulk wholesale, personalized customization and complete after-sales support. Strict IEC-standard quality, ISO,CE,certificated and factory-friendly rates lower your procurement expense and guarantee steady,long-term supply.
