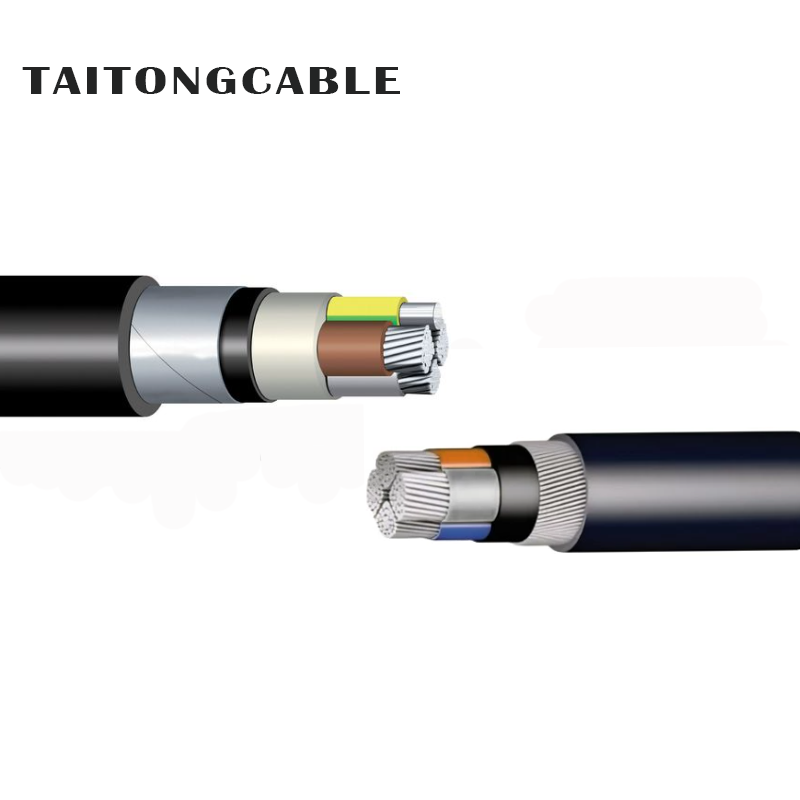

Low voltage armoured custom Aluminium Conductor PVC Insulated PE Sheathed Power Cables

Customizable low voltage armoured aluminium conductor PVC insulated PE sheathed power cables supplied by Taitong Cable are 0.6/1 kV electrical cables manufactured per IEC 60502-1, available in single-core and multi-core (2-core to 5-core) constructions for custom-order.

Single-core: aluminium conductor delivers high-efficiency conductivity; PVC insulation provides stable dielectric strength and thermal ageing resistance; high-density PE outer sheath offers excellent moisture and corrosion resistance; AWA aluminium wire armour withstands mechanical stress during underground installation.

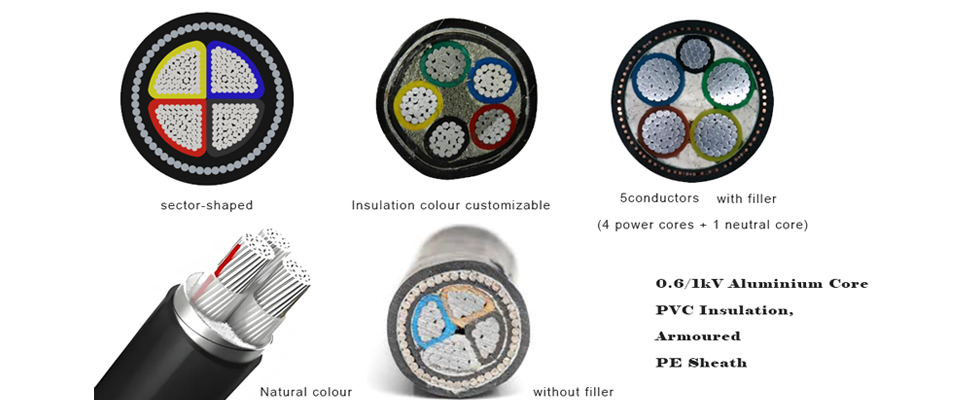

Multi-core: compacted aluminium conductor ensures stable current-carrying capacity; PVC insulation features reliable electrical and abrasion-resistant performance; tough PE outer sheath resists soil chemical erosion and dampness; optional SWA steel wire armour or STA steel tape armour delivers robust anti-crush and anti-impact protection for harsh buried conditions.

Factory direct supply caters to international purchasers for underground direct-burial power transmission projects.

Applications of Low voltage Armoured custom Aluminium Conductor PVC Insulated PE Sheathed Power Cables Rated for 0.6/1kV

---

For direct underground-buried low-voltage power distribution. Widely used in municipal infrastructure, urban grid, industrial plants and building construction projects. Supports single-core AWA, 2-5-core STA/SWA armour.

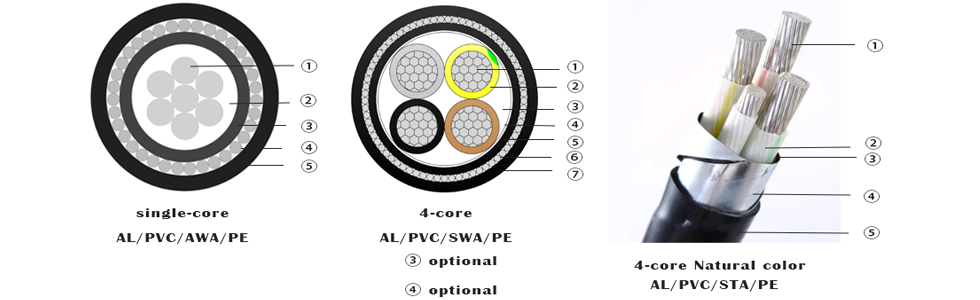

Construction

---

1,,Conductor: Class 1 solid or Class 2 compacted stranded annealed aluminium conductor, complying with IEC 60228

2,Insulation: Extruded Polyvinyl-Chloride (PVC)

3, Filler and binding layer: optional

4,Bedding: Extruded PVC inner covering

5,Armour: SWA galvanized steel wire armour or Steel Tape Armour (STA) for 2 to 5-core, Aluminium Wire Armour (AWA) for single-core.

6,Outer Sheath: Extruded black Polyethylene (PE)

Electrical Parameters

---

Why choose Taitong Cable for series of cables?

---

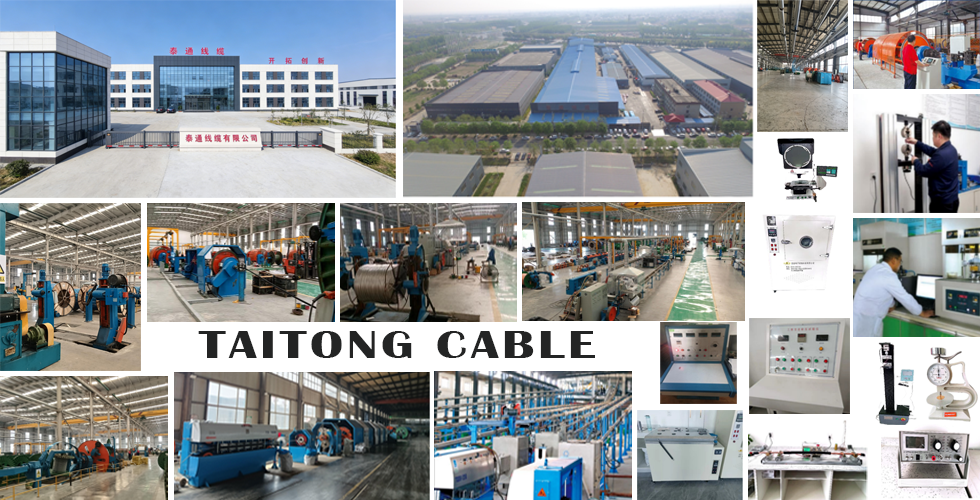

Professional qualified cable manufacturer Taitong Cable owns abundant cable industry experience, expert R&D team, premium production and testing equipment, 5 standardized production workshops and 31 nationwide service offices. Independent patented technologies support diversified customized cable production. Taitong Cable focuses on full-series cable products under 35kV, including low/medium/high voltage power cables, control cables, overhead cables and rubber-sheathed cables. All cable products strictly comply with IEC 60502 and global industrial standards.

Taitong Cable provides high-quality customizable low voltage armoured custom Aluminium conductor PVC insulated PE sheathed power cables (0.6/1kV) with rigorous quality control in China. The cable series supports single-core AWA aluminium wire armour and multi-core SWA/STA optional armouring customization. Taitong Cable serves global purchasers, engineering contractors and bulk wholesale clients with one-stop customization, steady bulk supply, standardized factory inspection and premium after-sales support. Standardized production, complete industry qualifications and flexible custom solutions deliver cost-effective, long-service-life underground buried power cables for various industrial construction and infrastructure projects.
