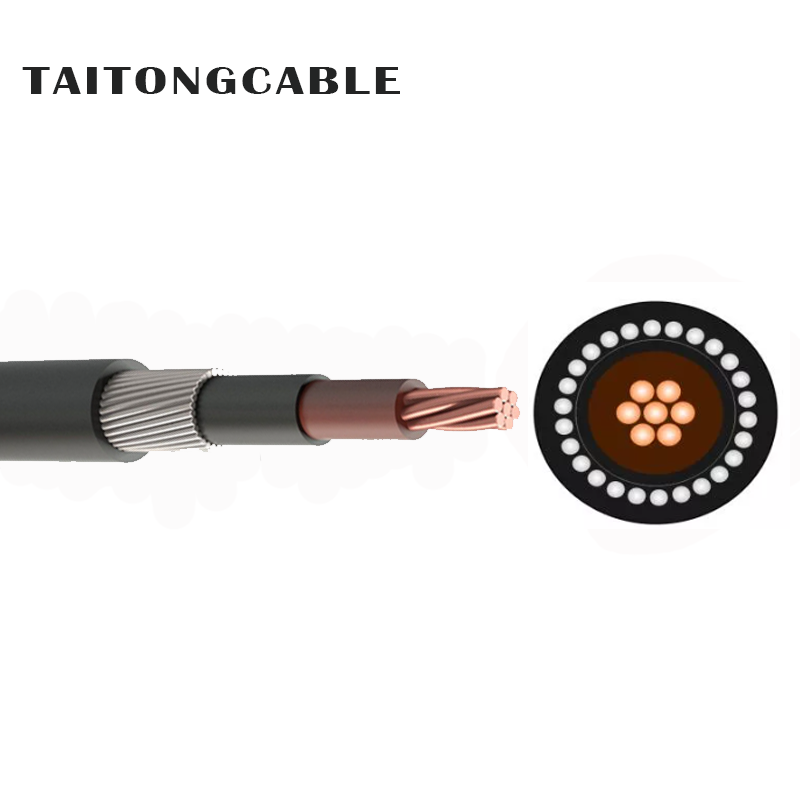

Low Voltage Single-Core AWA Armoured Copper Conductor PVC Insulated PE Sheath Power Cables

Low voltage single-core AWA armoured copper conductor PVC insulated PE sheath power cables are 0.6/1 kV AC rated heavy-duty power cables produced by Taitong Cable, a large-scale cable supplier and manufacturer in China. This single-ore armoured copper cable adopts solid or compacted stranded copper conductor, extruded PVC insulation, PVC bedding, aluminium wire armour (AWA) and water-resistant PE outer sheath.

Aluminium wire armour (AWA) provides excellent mechanical protection against compression and impact damage, specially designed for single-core cable to avoid eddy-current heating risk. The PE outer sheath (Jacket) delivers outstanding waterproof, moisture-proof and anti-corrosion performance, ideal for direct-buried, outdoor and harsh underground laying environments. Manufactured in compliance with IEC 60502-1 and IEC 60228 standards, this durable power cable is widely used for municipal power networks, industrial plants, infrastructure and commercial power-supply projects. Taitong Cable supplies ISO certified bulk order and custom-made cable solutions for global distributors, EPC contractors and large-scale project purchasers.

IEC 60502-1, Copper Core, PVC Insulation, PVC Inner Sheath,Aluminium wire Armour,PE Outer Sheath/jacket,0.6/1kV

Applications of Low Voltage Single-Core AWA Armoured Copper Conductor PVC Insulated PE Sheath Power Cables Rated for 0.6/1kV

---

Rated for 0.6/1kV AC, this single-core AWA armoured CU/PVC/AWA/PE electric cable is suitable for direct-buried underground laying, underground ducts and outdoor installations. With waterproof PE sheath and no-eddy-current aluminium wire armour, it delivers stable power supply for municipal grids, substations, industrial facilities and infrastructure power-distribution projects worldwide.

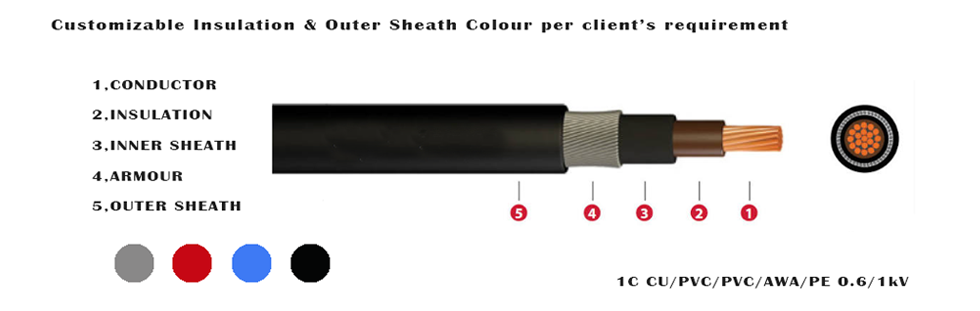

Construction

---

1,,Conductor: Class 1 solid or Class 2 compacted stranded annealed copper conductor, complying with IEC 60228

2,Insulation: Extruded Polyvinyl-Chloride (PVC)

3,Bedding: Extruded PVC inner covering

4,Armour: Aluminium Wire Armour (AWA), non-magnetic armour for single-core AC application to avoid eddy-current heating

5,Outer Sheath: Extruded black Polyethylene (PE)

Electrical Parameters

---

Professional Manufacturing Strength and Premium Armoured Cable Service Assurance- Your trusted Chinese Cable Manufacturer for 1/C CU/PVC/AWA/PE Power Cable,0.6/1kV

---

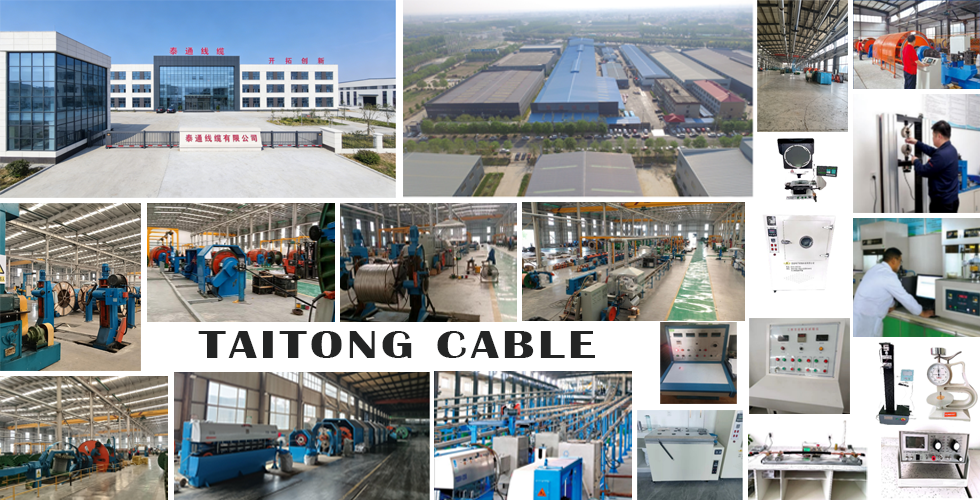

Taitong Cable owns 5 standardized automated production workshops around China, mature manufacturing technology and a professional technical team with rich types of cables project experience for more than 25 years. The factory maintains stable large-scale production capacity and complete industry qualifications and ISO international certifications, covering multiple overseas markets and engineering fields. Taitong Cable strictly implements standardized production management for all wires and power cable products rated below 35kV, providing reliable product stability, consistent quality control and long-term supply guarantees for global engineering projects and bulk procurement clients.

Every batch of low voltage single-core AWA armoured copper conductor PVC insulated PE sheath power cables-CU/PVC/AWA/PE-1/C- undergoes rigorous raw material inspection and finished-product performance testing to meet IEC international industry standards. Taitong Cable supports customized specifications, free sample verification and on-site factory audits. With factory-direct pricing, comprehensive after-sales support and flexible delivery solutions, Taitong Cable ensures all low voltage single-core AWA armoured copper power cable with PVC insulation and PE sheath balance superior quality and cost performance, fully meeting diverse industrial and municipal power distribution procurement requirements worldwide.
