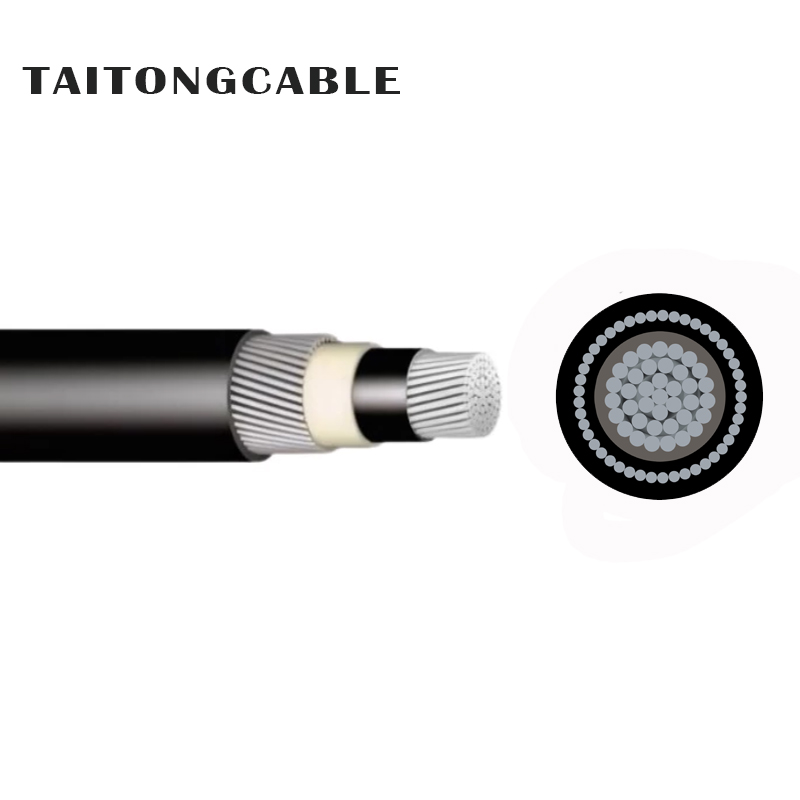

Low‑Voltage Single‑Core AWA Armoured Aluminium PVC Insulated and Sheathed Power Cables

Taitong Cable presents 0.6/1kV Low Voltage Single-Core AWA Armoured Aluminium PVC Insulated and Sheathed Power Cables (AL.PVC/AWA/PVC）complying with IEC 60502-1, The compacted aluminium conductor carries electric current; PVC-A insulation delivers electrical-isolation protection; the PVC bedding cushions and separates armour from insulation; non-magnetic AWA aluminium-wire armour cuts AC-induced eddy-current loss and offers mechanical defence; the optional binder tape (optional) fixes armour wires, and the outer-PVC sheath shields the whole cable against moisture and abrasion. This low-voltage single-core AWA-armoured cable is applied for high-power single-phase-AC underground power transmission, duct installation and direct burial, ideal for large-volume engineering-based procurement. Our factory accepts custom specifications, sample orders and mass procurement, delivering certified quality goods with favourable factory rates and fast-delivery support.

Applications of Low-Voltage Single-Core Aluminium Wire Armoured (AWA) Aluminium PVC Insulated and Sheathed Power Cables 0.6/1kV

---

This 0.6/1kV single-core AWA armoured power cable with PVC insulation and PVC sheath is suitable for single-phase AC power transmission, direct-buried underground laying, cable duct, indoor tray and outdoor installation. Widely used in transformer connections, industrial plants, renewable-energy farms, municipal engineering, tunnel projects and EPC construction. Non-magnetic AWA armour eliminates eddy-current loss for single-core circuits.

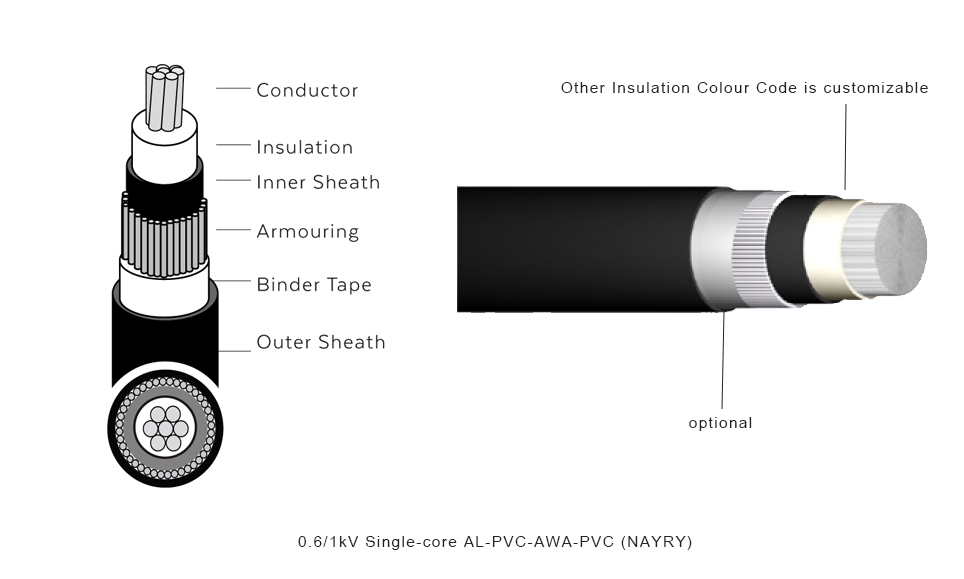

Construction

1, Aluminium conductor: Class-1 solid / Class-2 stranded compacted aluminium, meets IEC 60228

2, Extruded PVC insulation: Maximum long-term operating temperature:70℃

3, Extruded PVC bedding (innercovering): Mandatory layer for all armoured cables, isolates armour and prevents insulation abrasion

4, AWA non-magnetic aluminium-wire armour (AWA) : Eliminates eddy-current loss for alternating-current single-core wiring

5, Binder tape (optional layer): Non-hygroscopic wrapping tape for fastening aluminium armour wires

6, Extruded PVC outer sheath

Technical Specifications of Low‑Voltage Single‑Core AWA Armoured Aluminium PVC Insulated and Sheathed Power Cables rated for 0.6/1kV

---

Why Choose Taitong Cable for Low-Voltage Single-Core AWA Armoured Aluminium PVC Insulated and Sheathed Power Cables rated for 0.6/1kV

---

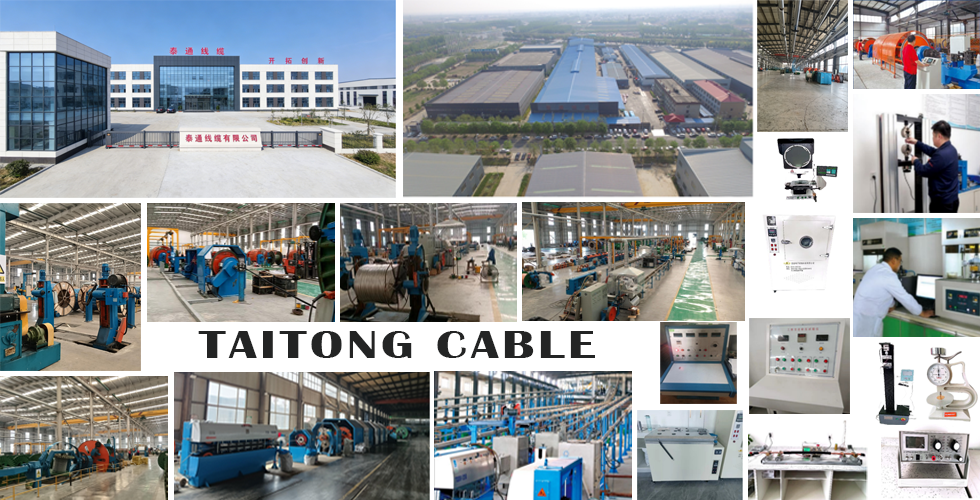

Taitong Cable, a professional China supplier and manufacturer, is your ideal choice for 0.6/1kV Low-Voltage Single-Core AWA Armoured Aluminium PVC Insulated and Sheathed Power Cables. With over 25 years of industry experience, our factory covers 150,000+ square meters, forms a dedicated R&D team, and is equipped with advanced production and testing equipment, ensuring stable mass production and strict quality control.

Taitong Cable holds complete certifications complying with IEC 60502-1, CCC, ISO, CE qualifications and certificates, backed by 30+ patents, reflecting our strong technical and professional capabilities. Our products are suitable for overseas construction projects, power transmission projects, and bulk procurement by global distributors, contractors, and engineering companies.

We support factory audits, free sample requests, and customizable specifications to meet diverse client needs. Our dedicated after-sales team provides timely support, and we prioritize long-term win-win cooperation. As a reliable China supplier, we offer competitive factory prices, fast delivery, and consistent quality for bulk orders of this LV single-core AWA armoured cable with PVC insulation and sheath.
