Low Voltage Single-Core ATA Armoured Copper Conductor PVC Insulated PVC Sheath Power Cables

Taitong Cable manufactures low voltage single-core ATA armoured copper conductor PVC insulated PVC sheath power cables with rated voltage 0.6/1kV, in compliance with IEC 60502-1 and relevant international standards. The NYBY 1/C cable adopts stranded copper conductor, PVC insulation, inner PVC bedding, aluminium tape (ATA) armour and outer PVC sheath.featuring stable electrical performance and strong mechanical protection, suitable for underground fixed power-distribution installation.

Taitong Cable’s ATA armoured copper power cable undergoes full-range quality testing before delivery. As a direct factory supplier of cables in China, we offer cost-effective cable products, bulk wholesale, large project procurement and custom-tailored services for global contractors, distributors and infrastructure clients. Samples and factory-visit inspection are available upon request.

CU/PVC/PVC-BEDDING/ATA/PVC-NYBY-SINGLE-CORE-0.6/1KV

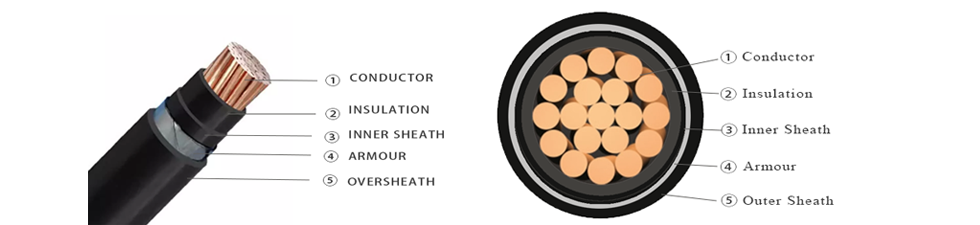

Construction

---

① Conductor: Stranded copper, Class 2, to IEC 60228

② Insulation: Extruded PVC (Polyvinyl Chloride)

③ Inner Sheath (Bedding): Extruded PVC

④ Armour: Aluminium Tape Armour (ATA)

⑤ Outer Sheath: Extruded black PVC

Applications of Low Voltage Single-Core ATA Armoured Copper Conductor PVC Insulated PVC Sheath Power Cables Rated for 0.6/1kV

---

This 0.6/1 kV single-core ATA armoured copper power cable with PVC Insulation and PVC sheath is designed for underground direct burial, cable trenches and ducts, widely applied in municipal power networks, industrial-plant power supply, commercial facilities and infrastructure construction projects for fixed low-voltage power distribution. The aluminium-tape armour (ATA) provides effective mechanical protection, making it ideal for outdoor and buried installations where physical damage resistance is required.

Electrical Parameters

---

Taitong Cable-Your Trusted Partner for Bulk Cable Procurement

Taitong Cable is a professional China-based cable manufacturer with years of export experience supplying cables up to 35kV, standardized production workshops, advanced production and testing equipment, and a professional technical and sales team. We own stable mass production capacity, supporting bulk orders, customized specifications and fast batch delivery. Our wire and cable products serve global municipal power distribution, industrial construction, commercial infrastructure and engineering procurement projects, partnering with international contractors such as EPC, distributors and project purchasers worldwide or factory cable renovation and replacement. The core compliant product low voltage single-core ATA armoured copper conductor PVC insulated PVC sheath power cables (NYY-ATA) is rated at 0.6/1kV, manufactured strictly in accordance with IEC 60502-1 and IEC 60228 international standards, and certified with complete ISO quality system qualifications which can be customized per client's requirement.

Purchasing 0.6/1kV single-core ATA armoured copper PVC power cables (CU/PVC/PVC/ATA/PVC) from Taitong Cable is a cost-effective and trustworthy choice for global engineering and bulk procurement with full-process quality control from raw material screening to finished product testing, ensuring every batch of cables meets international IEC/VDE/HD standards and stable operational performance. Equipped with mature production scheduling and sufficient inventory reserves, Taitong Cable supports fast delivery, small-batch sample orders and large-scale project customized demands. As a direct export manufacturer, we provide transparent factory prices, complete certification documents, professional pre-sales technical support and after-sales service, perfectly catering to long-term cooperation of global distributors, construction contractors and infrastructure project buyers.
